Cub Cadet Lawn Mower - Rear Bumper

13

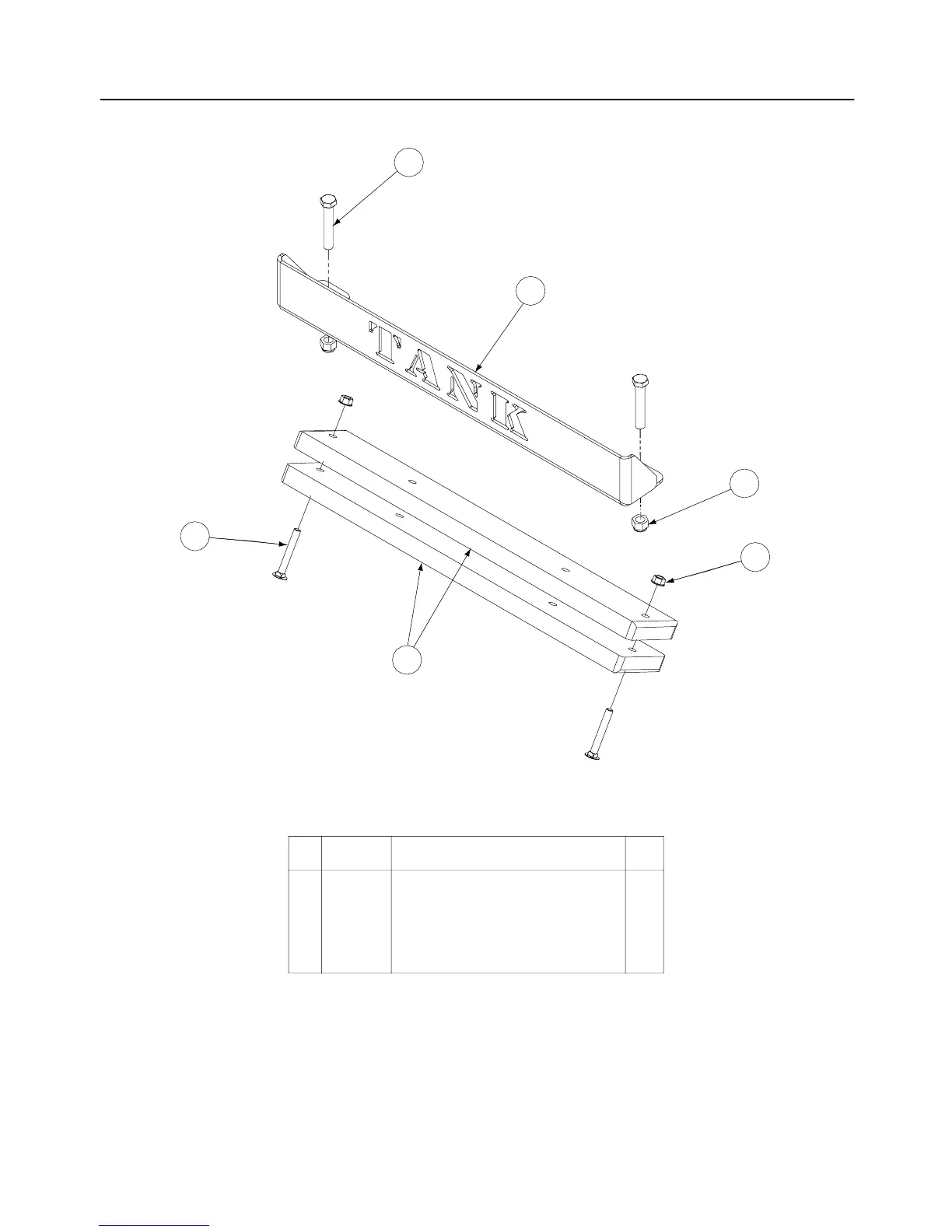

Rear Bumper - Figure 12 and Parts List
Ref.
No. Part No. Description Qty.
1 00012428 Hex Nut, 1/2-13, Insert Lock 2
2 00022560 Nut, Hex 3/8-16 Flange Lock 2
3 00030046 HHCS, 1/2-13, 3.00 2
4 01003534 Carriage Bolt, 3/8-16 x 2.75 2
5 01009992 Bar, Weight 2
6 02000453 Rear Bumper Plate 1
6
3
1
2
4
5
GD: 02000180-10/21/04
