12

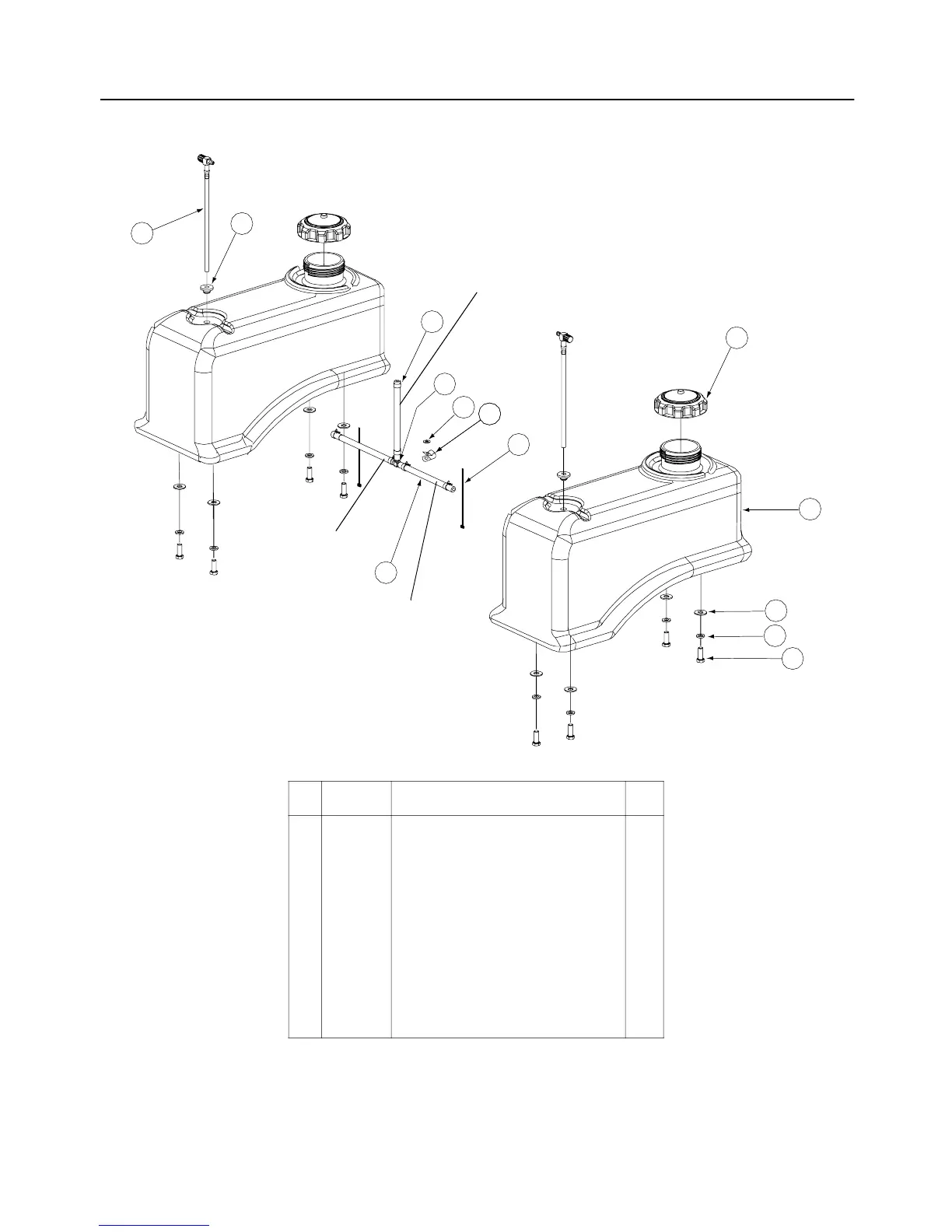

Fuel Tank Assembly - Figure 11 and Parts List
Ref.
No. Part No. Description Qty.
1 01000723 Flat Washer, .406 ID, 1.0 OD, .105 8
2 -- Hose, 1/4" Fuel Line (in inches) 79.5
3 00012235 Clamp, Union 6
4 01000069 Fuel Cap, 3.5 2
5 01000368 Hex, Cap Screw, 3/8-16, .88 8
6 00012157 Lock Washer, 3/8 8
7 01007218 Fuel Tank 2
8 01007425 Fuel Fitting 2
9 01000281 Fuel Tank Grommet 2
10 01003473 Tee Fitting, Fuel 1
11 00031081 Clamp 1
12 00012470 Cable Tie 2
13 01000600 Flatwasher 1/4 x .630 x .0515 1
8
2
9
3
4
7
1
6
5
10
1111
13
12
32.0" Length
27.5" Length
20" Length
GD: 01007424-11/28/01
