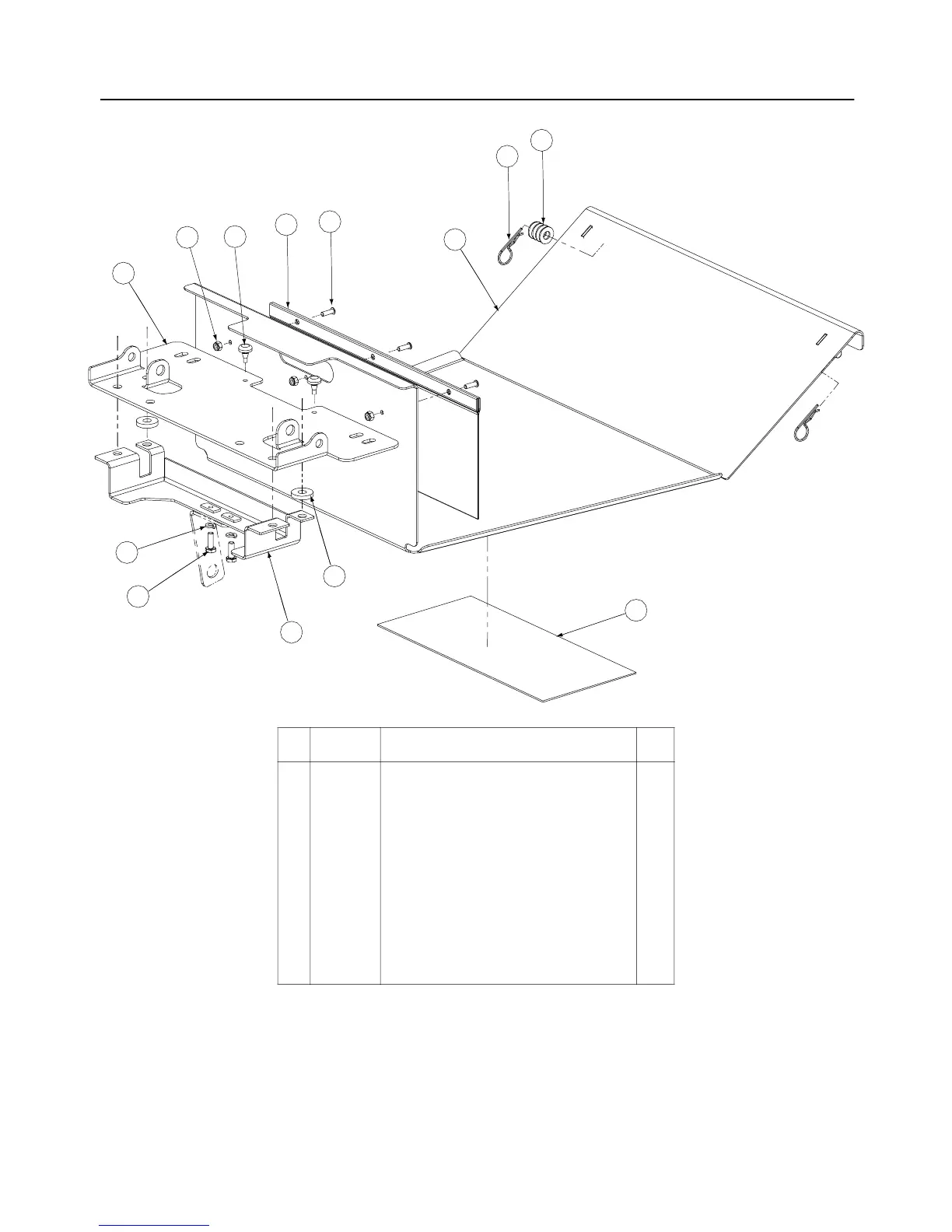

Floor Panel Assembly- Figure 27 and Parts List
Ref.
No. Part No. Description Qty.
1 00012132 Lock Washer, 1/4 2
2 00012158 Washer AR
3 00013131 Hex Cap Screw, 1/4-20, .75 2
4 00014608 Lock Nut, Nylon Insert, 10-32 3
5 00021956 Hair Pin, 3/8-1/2 2
6 00030906 Screw, Phillips Head, Machine, 10-32 x 5/8 3
7 00083192 Washer 2
8 01001170 Rubber Bumper, .62 OD x .22 Thick 2
9 01001638 Panel Seat 1
10 01004992 Label, Belt Routing and Lubrication 1
11 02000361 Support, Seat Bracket 1
12 02000362 Bag, Debris Storage 1
13 02000433 Floor Panel Assembly 1
10
7
11
1
3
5
13
2
6
12
9
84
GD: 02000360-10/21/04
