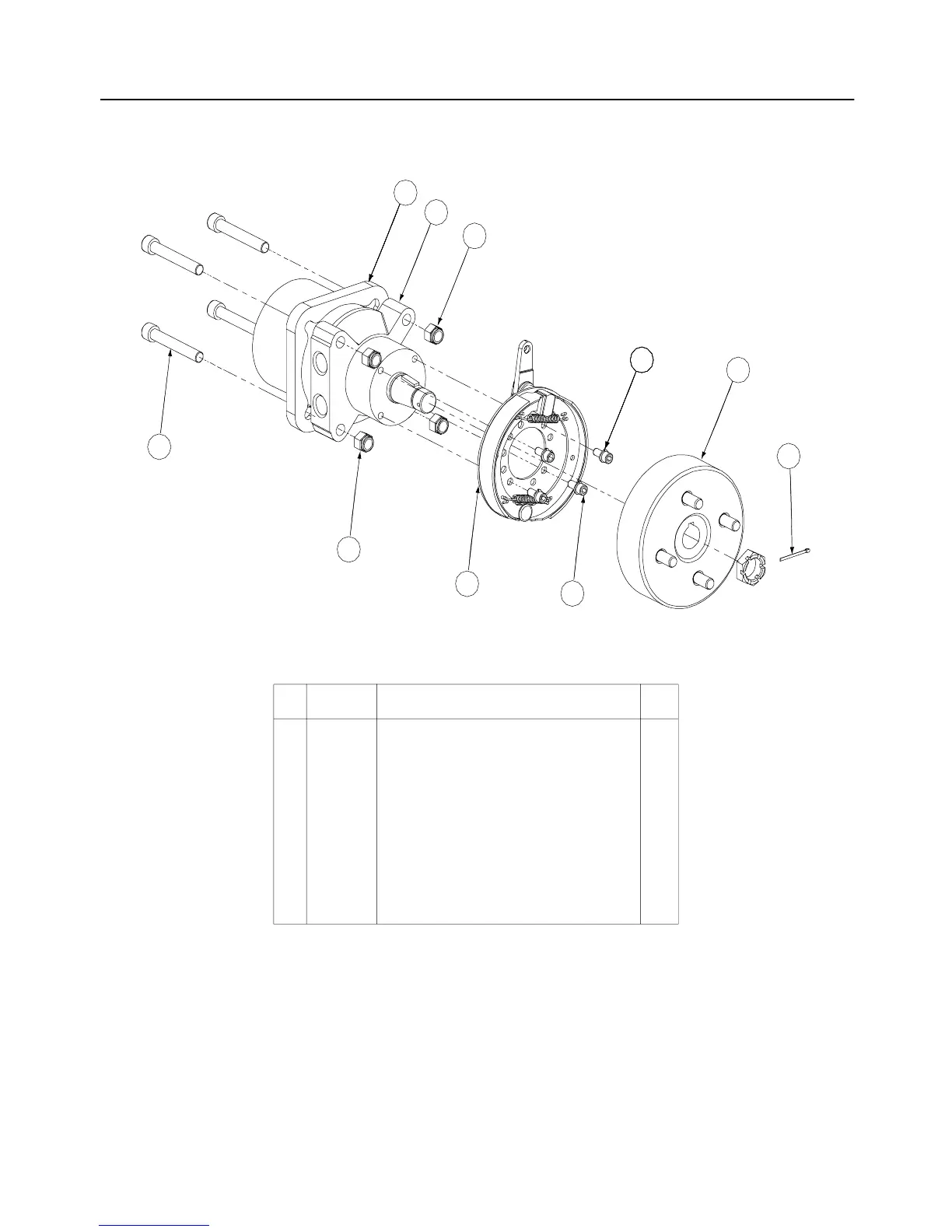

Brake Motor Mount and Hub- Figure 9 and Parts List
Ref.
No. Part No. Description Qty.
1 00012428 Lock Nut, Nylon Insert, 1/2-13 8
2 01009775 Motor Spacer 2
3 01008449 Socket Head Capscrew, 1/2-13; 6-1/2 8
4 01008436 Hyd. Motor, Parker Left Hand Assembly w/
Brake & Drum (Not Shown)
1
5 01008437 Hyd. Motor, Parker Right Hand Assembly
w/ Brake & Drum
1
6 00012168 Lock Washer, 5/16 8
7 01007048 Brake Assembly w/Line 2
8 01007049 Hub and Drum Assembly w/Studs 2
9 01007464 Capscrew w/Socket, 5/16-18 x 3/4 8
10 01007773 Cotter Pin 1/8 x 1-1/2 2
1
1
2
3
5
6
7
8
9
10
GD: 01008055-11/17/03
