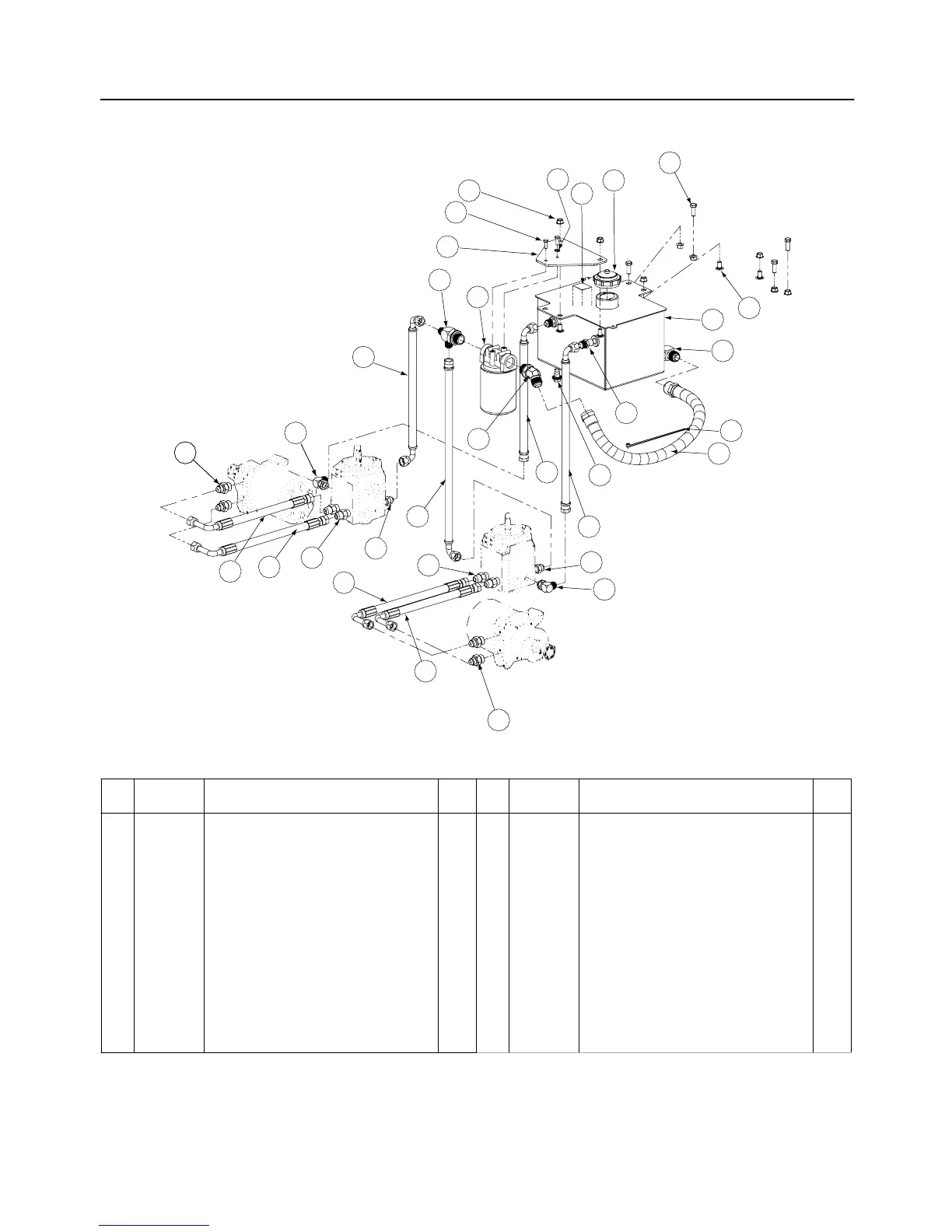

Hydro Tank and Hose Assembly - Figure 8 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00006144 Hex Cap Screw, 3/8-16, 1 4 14 01001650 Oil Filter Mounting Plate 1
2 00012288 Fitting 1/2 x 3/4 - O Ring 4 15 01004192 Oil Pan Drain Plug w/ Seal 1
3 00012426 Fitting 1/2 x 1/2 - O Ring to Flare 4 16 01004268 Tank to Filter Hose Assembly 1
4 00012470 Cable Tie, 3/16 x .05 x 7.4 5 17 01004272 Fitting, 3/4 x3/4 x 45 degree 1
5 00013131 Hex Cap Screw, 1/4-20, .75 2 18 01004542 Elbow Fitting, 3/8 O-ring, 1/2 Flare 2
6 00017665 Filter Head 3/4 includes: 1 19 01004702 Fitting Elbow, 1/2 x 1/2 1
01004166 Filter 20 01006353 Fitting, 3/8 NPT, 1/2 Flare 2
7 00022560 Hex Nut Flange Lock, 3/8-16 8 21 01008052 Long Pressure Hose Assembly 2
8 00030261 Cap, Hydro Oil Tank 1 22 01008054 Short Pressure Hose Assembly 2
9 00031994 Decal Oil Only 20W50 1 23 01006901 17.75" Return Hose Assembly, RH 1
10 00012132 Lock Washer, 1/4 1 24 01006902 14.25" Return Hose Assembly, LH 1
11 01000372 Carriage Bolt, 3/8-16 x .75 LG. 4 25 01006914 21.25" Supply Hose Assembly, RH 1
12 01004516 Hydraulic Tank Assembly 1 26 01006916 15.50" SupplyHose Assembly, LH 1
13 01002606 Fitting Connector, 1/2 x 3/8 2 27 01006959 Tee Fitting, 3/4 x 1/2 x 1/2 1
NOTE: Lubricant, 737-3120 Gallons, 3.25
7
1
9
10
11
12
6
27
24
23
2
22
19
4
16
20
18
13
21
3
21
22
22
18
3
25
13
26
15
8
5
14
17
GD: 01008053-04/16/04
