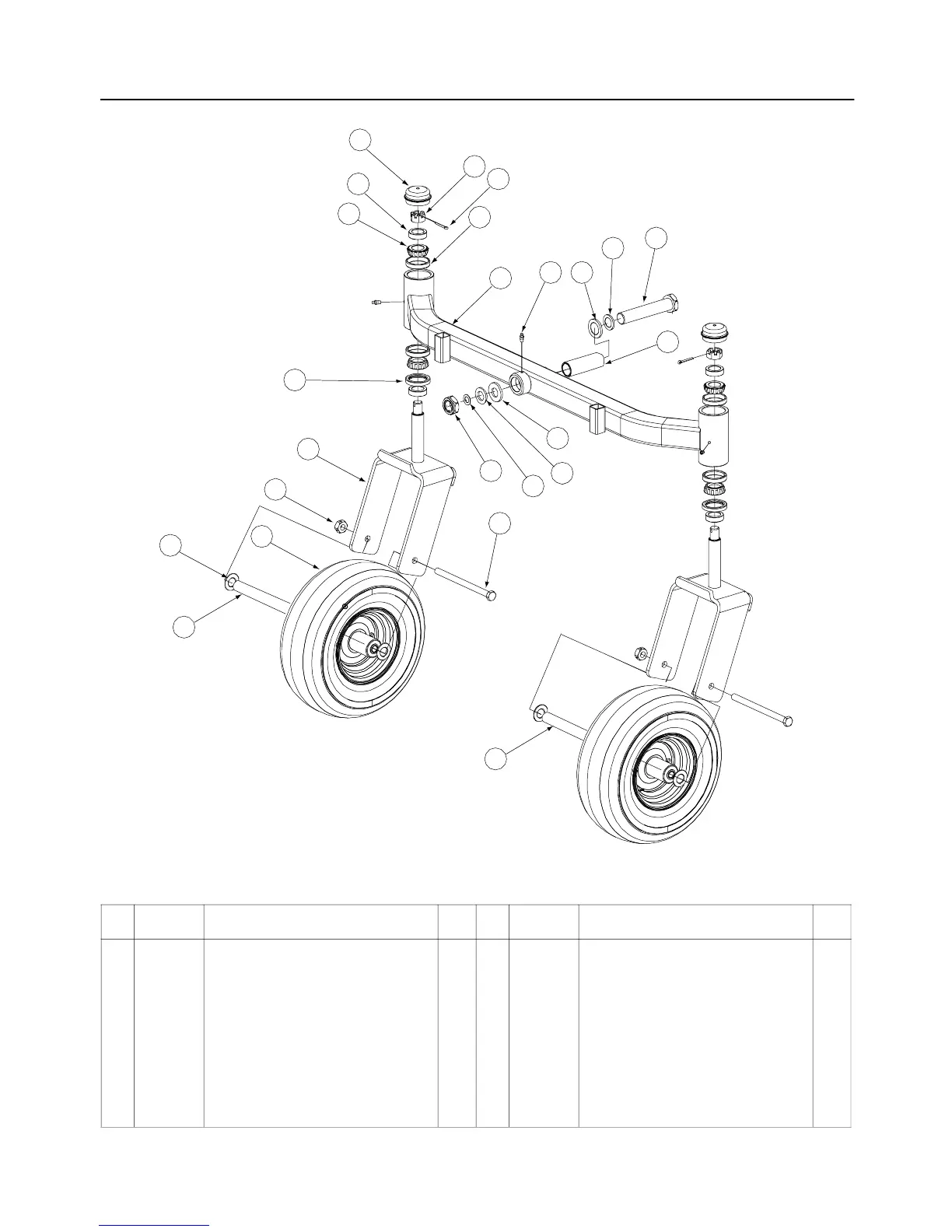

Front Caster Assembly - Figure 14 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00023287 Nut, 1/2-20, Center Lock 2 12 01002620 Cup Bearing 4
2 01006294 Bell Washer, 1.25 ID 2 13 01002621 Bearing Cone 4
3 00060078 Grease Fitting 3 14 01002622 Seal 2
4 02000588 Flat Washer, 1.00 ID 2 15 01002624 Ring Seal 4
5 02000589 Spacer, 1.005 ID x 1.25 OD x 3.6 1 16 01006347 Grease Cap, 1.986 OD 2
6 01000678 Nut, Jam, 1.0-14, Insert Lock 1 17 01002626 Slotted Nut, 3/4-16 2
7 01006309 Hex Cap Screw, 1-14 x 5.0 1 18 01002627 Cotter Pin, 5/32, 1.25 2
8 01006913 Wheel, 13 x 6.50 x 6, White 2 19 01006912 Wheel Spacer 2
9 01007407 Yoke, Caster Wheel 2 20 01003123 Spacer, .812 ID x .218LG 4
10 01006961 HHCS, 1/2-20, 7.50 2 21 01009997 Retainer Extension, Self Locking 1
11 02000439 Front Axle Assembly 1
16
15
13
8
20
1
9
14
17
11
3
5
7
10
2
6
4
2
4
18
12
19
19
21
GD: 02000369-10/21/04
