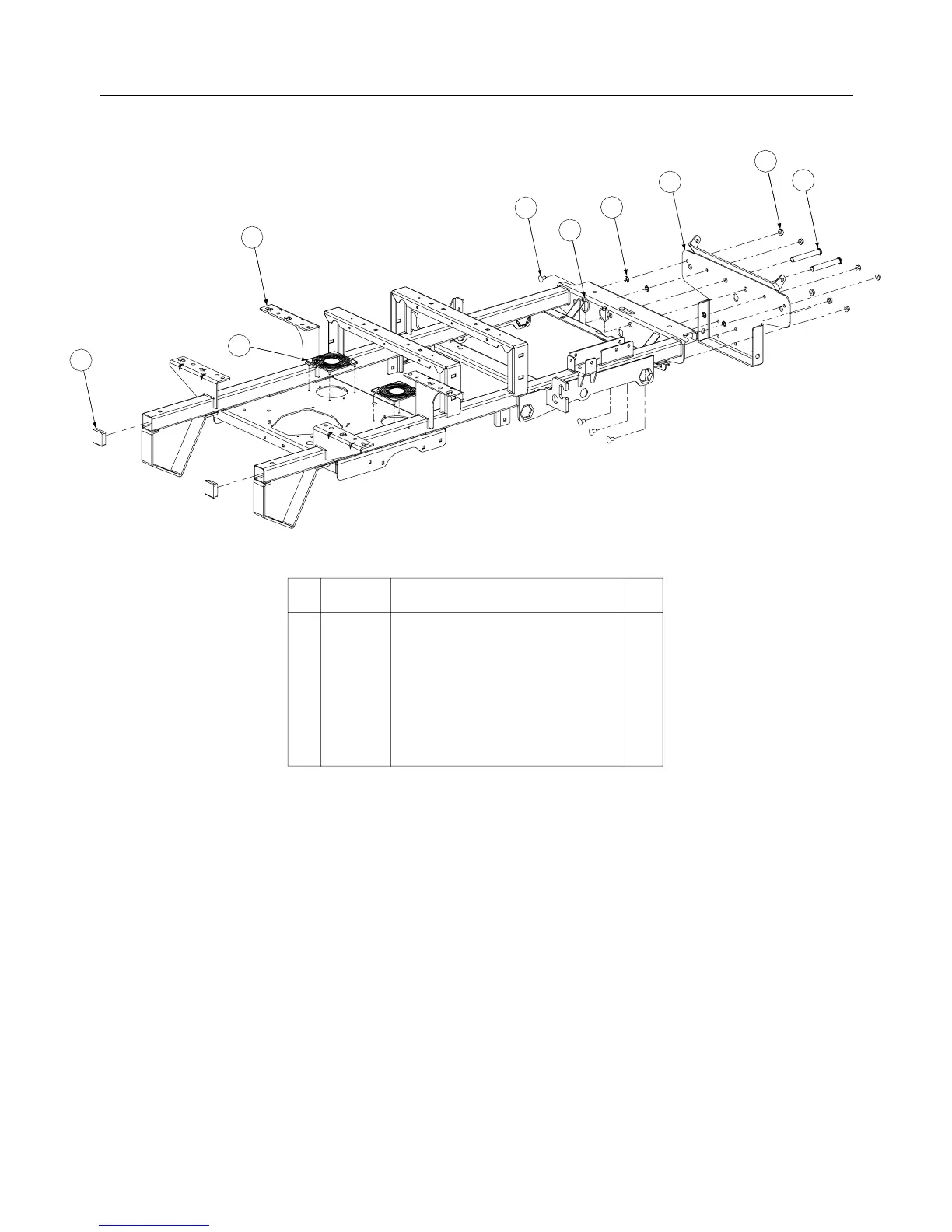

Frame Assembly- Figure 1 and Parts List
Ref.
No. Part No. Description Qty.
1 00022560 Hex Nut, 3/8-16 Flange Lock 7
2 01000372 Carriage Bolt, 3/8-16 x .75 Long 7
3 01001713 Bracket Assembly, Frame, Front 1
4 01003282 Clevis Pin, .625 Dia x 4.375 Long 2
5 01003993 Linch Pin, 3/16 Dia. 2
6 01005160 Plug, Square Tube 2
7 01008225 Push Retainer, 3/8 4
8 02000019 Frame Assembly 1
9 02000129 Cover, Hydro Fan 2
4
1
3
5
2
8
6
9
7
GD: 02000020-10/20/04
