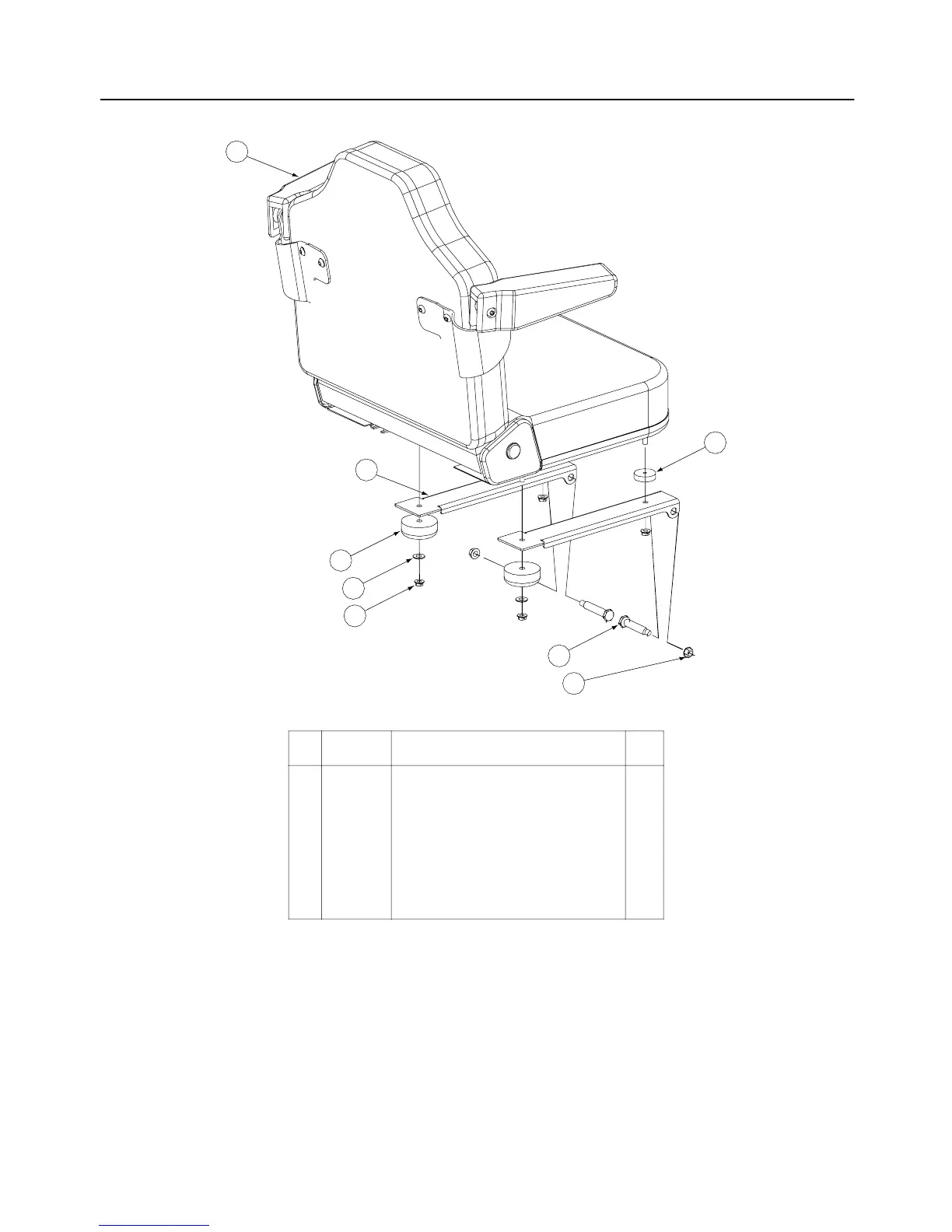

Seat Assembly- Figure 18 and Parts List
Ref.
No. Part No. Description Qty.
1 00022560 Nut, Hex 3/8-16 Flange Lock 2
2 750-3119 Spacer, 0.406 ID x 1.00 OD x .38 2
3 01000635 Lock Nut, Hex Flange, 5/16-18 4
4 01010115 Adjustable Seat, Black embossed,
Includes Seat Switch
1
5 01001630 Mounting Bracket, Seat 2
6 01002634 Shoulder Screw, .50x2.345, 3/8-16 2
7 01002753 Grommet, 2.5 OD x 1.0 Long 2
8 01000960 Washer 2
6
2
3
8
7
5
4
1
GD: 01005780-01/10/05
