Cub Cadet Lawn Mower - Hydro Pump Assembly

18

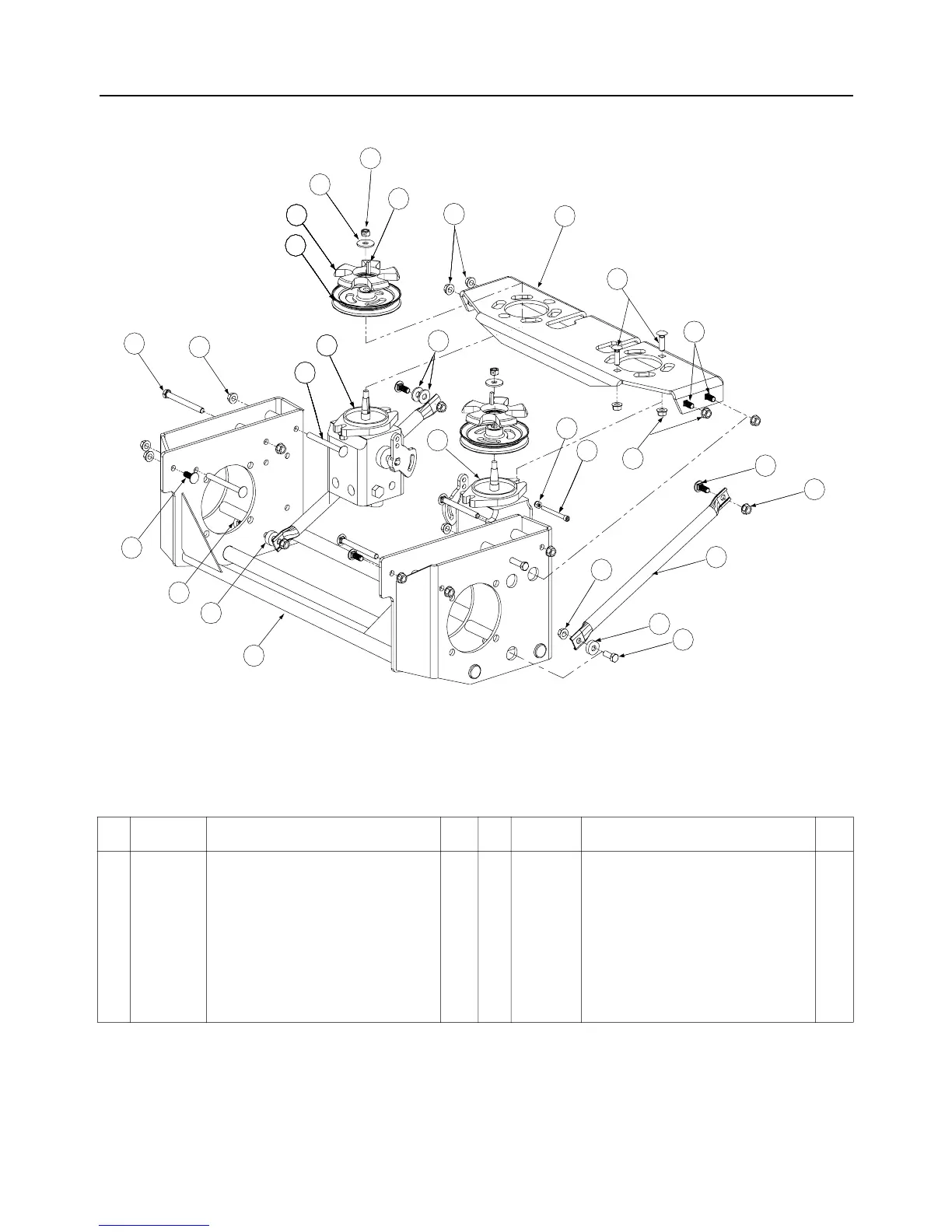

Hydro Pump Assembly- Figure 17 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00012157 Washer lock 3/8 zinc 2 11 01002010 Carriage Screw, 3/8-16 x 1.25 4
2 00012152 Lock Nut, Nylon Insert, 1/4-20 2 12 01001618 Strut Frame 2
3 00019962 Socket Head Cap Screw, 1/4-20 x 2-1/2 2 13 01005339 Hydro Pulley Fan 2
4 00020628 Key, 3/16" x 7/8" 2 14 01008050 Hydro Motor Frame Assembly 1
5 00022560 Flange Lock Hex Nut, 3/8-16 20 15 01006799 Hydro Pump Pulley 2
6 01000369 Hex Cap Screw, 3/8 -16 x 1.25 2 16 01006936 Hydro Pump, LH 1
7 750-3119 Spacer, .406 ID x 1.00 OD x .38 2 17 01006937 Hydro Pump, RH 1
8 01000643 Carriage Bolt, 3/8-16 x 1 8 18 01007309 Hex Nut, 3/8-24 2
9 00011925 Hex Cap Screw, 3/8-16 x 4.00 2 19 01006735 Hydro Pump Mount 1
10 01000872 Flat Washer, .411 x 1.25 x .100 2 20 01008049 Carriage Bolt, 3/8-16 x 4" 4
18
13
15
16
10
5
4
3
2
19
8
5
12
6
7
5
11
5
14
6
7
5
17
8
1
9
8
20
GD: 01008051-01/12/05
