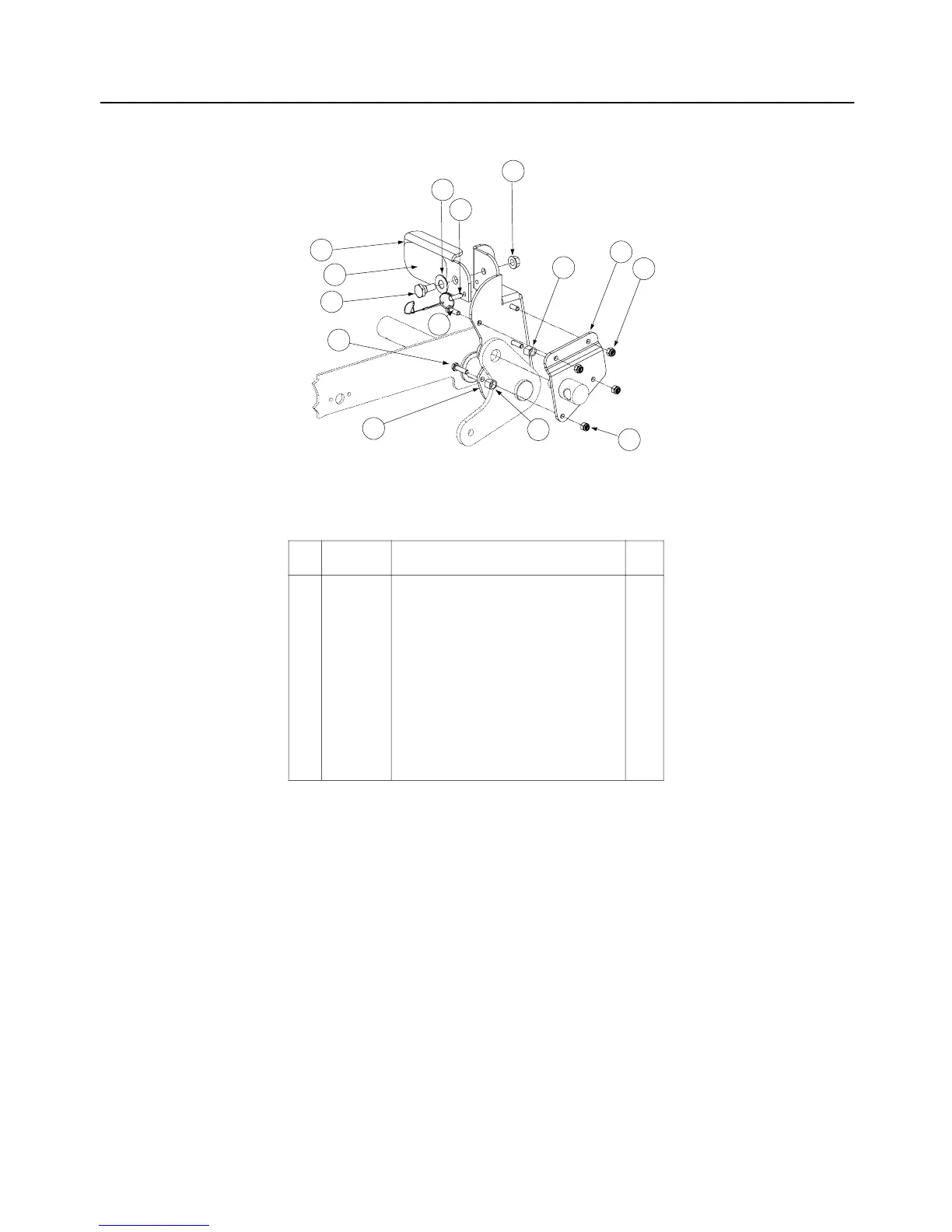

Foot Pedal Deck Lift Assembly
- Figure 26 and Part List
Ref.
No. Part No. Description Qty.
1 00012152 Lock Nut, Nylon Insert, 1/4-20 4
2 00012577 Washer, 1/2 x 1 Shim 1
3 01006786 Detent Pin w/12" Lanyard 1
4 00013131 Hex Cap Screw, 1/4-20, .75 2
5 00022560 Hex Nut, Flange Lock 3/8-16 1
6 01000944 Hex Cap Screw, 1/4-20, 1.00 2
7 01004118 Shoulder Screw, .50 x .27 Lg., 3/8-16 1
8 01006409 Foot Lift Backup Pedal 1
9 01006352 Deck Foot Pedal Lift 1
10 01008359 Deck Foot Pedal Lift 1
11 01006418 Deck Foot Lift Pad 1
12 00062715 Turnbuckle Sleeve 2
9
2
3
5
1
1
12
8
12
7
4
6
10
11
GD: 01008360-05/06/03
