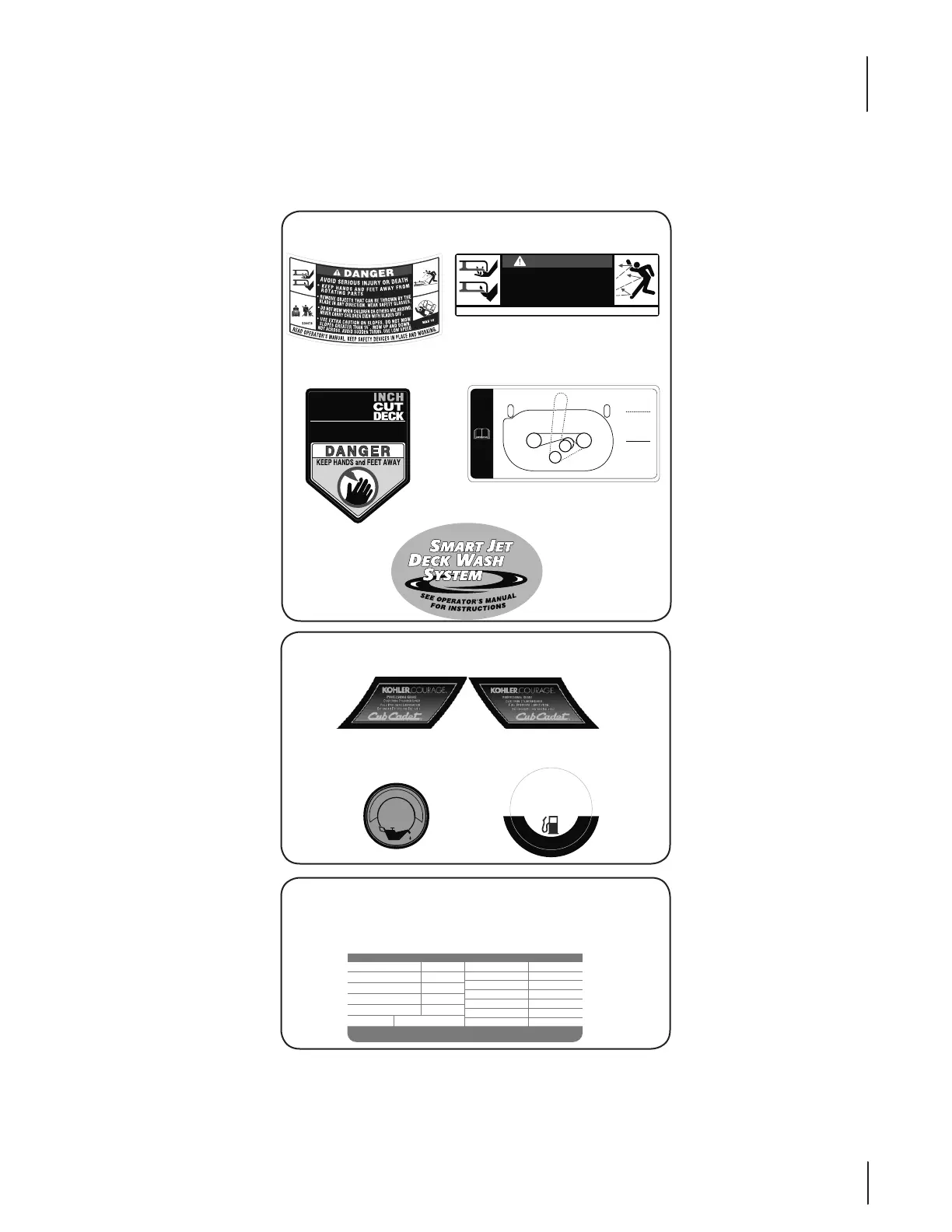

Cub Cadet LTX 1040 Illustrated Parts Manual

19
Label is used on all models unless specified, excludes Australian units
TIMING
BELT
DRIVE
BELT
TO REDUCE THE RISK OF INJURY, DO NOT
OPERATE UNLESS DISCHARGE COVER OR
GRASS CATCHER IS IN ITS PROPER PLACE.
IF DAMAGED, REPLACE IMMEDIATELY.
42
OIL
C
H
E
C
K
O
I
L
B
E
F
O
R
E
E
A
C
H
U
S
E
DANGER
KEEP HANDS AND FEET AWAY.
DO NOT OPERATE MOWER
UNLESS CHUTE DEFLECTOR
OR ENTIRE GRASS CATCHER IS
IN ITS PROPER PLACE.
ASSEMBLE CHUTE DEFLECTOR TO THIS UNIT BEFORE OPERATING.
S30503
T
O
A
V
O
I
D
E
N
G
I
N
E
D
A
M
A
G
E
DO NOT
USE E85 OR FUEL
CONTA INING MORE
THAN 10% ETHANOL
Under Hood
777I22679
Engine Labels
777X43688
777D13207/777D13208
777S30018
777D10624
777I22914
777S30503
777S32984
Deck Labels
Blades 942-04217 (2)
Upper Drive Belt 954-04208
Lower Drive Belt 954-0467
Deck Spindle Belt (Timing) 954-04167
Engine To Deck Belt 954-04228
Deck Spindles
918-04512A (1) 918-04516 (1)
Use only Cub Cadet genuine factory parts
www.cubcadet.com
Ignition Key 725-2054A
Solenoid 725-04439
Oil Filter KH-12-050-01-S
Air Filter W/ Pre-Cleaner
KH-20-883-02-S1
Spark Plug 759-3336
Fuel Filter
KH-25-050-21-S
Oil Capacity 51.2 oz
MODEL
L TX 1040
R EPLACEMENT PARTS
777X43703
Labels

Cub Cadet LTX 1040 Specifications

General

Engine Brand	Kohler
Engine Model	Courage
Cutting Width	42 inches
Transmission Type	Hydrostatic
Deck Material	Steel
Turning Radius	18 inches
Number of Speeds	Infinite
Cutting Height	1.5 - 4 inches
Number of Blades	2
Front Tire Size	15x6-6
Rear Tire Size	20x8-8
Blade Engagement	Manual
Warranty	3 years limited
Engine Type	Single-cylinder OHV
