Cub Cadet LTX 1040 Illustrated Parts Manual

29

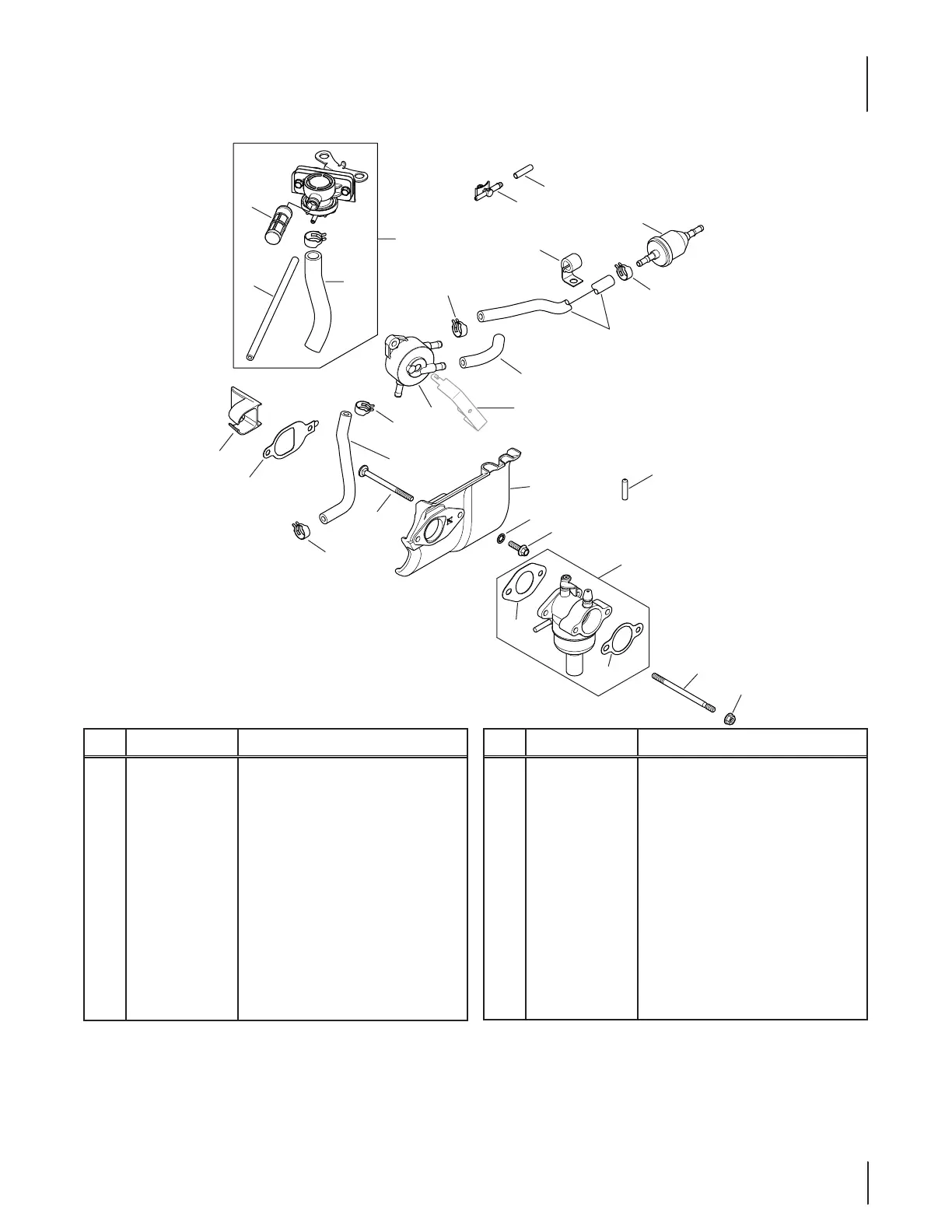

Kohler SV590-0220 Fuel System
6
11/31
10
9
4
9
12
13
14
17
18
19
34
20/28/29/30/32/33
23
24
25
26
27
12
9
9
8
5
1
2
22
21
AIR INTAKE/
FILTRATION
Ref. Part-Number Description
1 KH-25-173-23-S Masking Cap
2 KH-25-155-40-S SAI Connector
9 KH-25-237-14-S Hose Clamp, ⁄
12 K H -2 5 -111- 34 -S Fuel Line
17 KH-20-265-09-S Heat Deector Kit
18 K H -X-2 2-11 Int. Tooth Lock Washer, ⁄
19 KH-M-651020-S Flange Screw, M6 X 1.0 X 20
23 KH-20-072-05-S Stud, M6 X 1.0 X 100
24 KH-M-641060-S Flange Nut, M6 X 1.0
25 KH-20-072-07-S Carburetor Stud
26 KH-20- 041-18-S Heat Deector Gasket
Ref. Part-Number Description
30 KH-20-853-35-S Carburetor Kit (Inc. 21 & 22)
31 KH-25-050-21-S Fuel Filter
— KH-25-454-05-S Tie
—
KH-12-755-109-S
High Altitude Kit
— KH-12-755-110-S Choke Repair Kit
— KH-12-757- 02 Float Repair Kit
— KH-12-757- 03 Carburetor Repair Kit
— KH-12-757-33 Solenoid Repair Kit
— KH-12-757-37-S Bowl Replacement Repair Kit
— KH-20-755-07-S High Altitude Kit

Cub Cadet LTX 1040 Specifications

General

Engine Brand	Kohler
Engine Model	Courage
Cutting Width	42 inches
Transmission Type	Hydrostatic
Deck Material	Steel
Turning Radius	18 inches
Number of Speeds	Infinite
Cutting Height	1.5 - 4 inches
Number of Blades	2
Front Tire Size	15x6-6
Rear Tire Size	20x8-8
Blade Engagement	Manual
Warranty	3 years limited
Engine Type	Single-cylinder OHV
