Cub Cadet LTX 1040 Illustrated Parts Manual

12

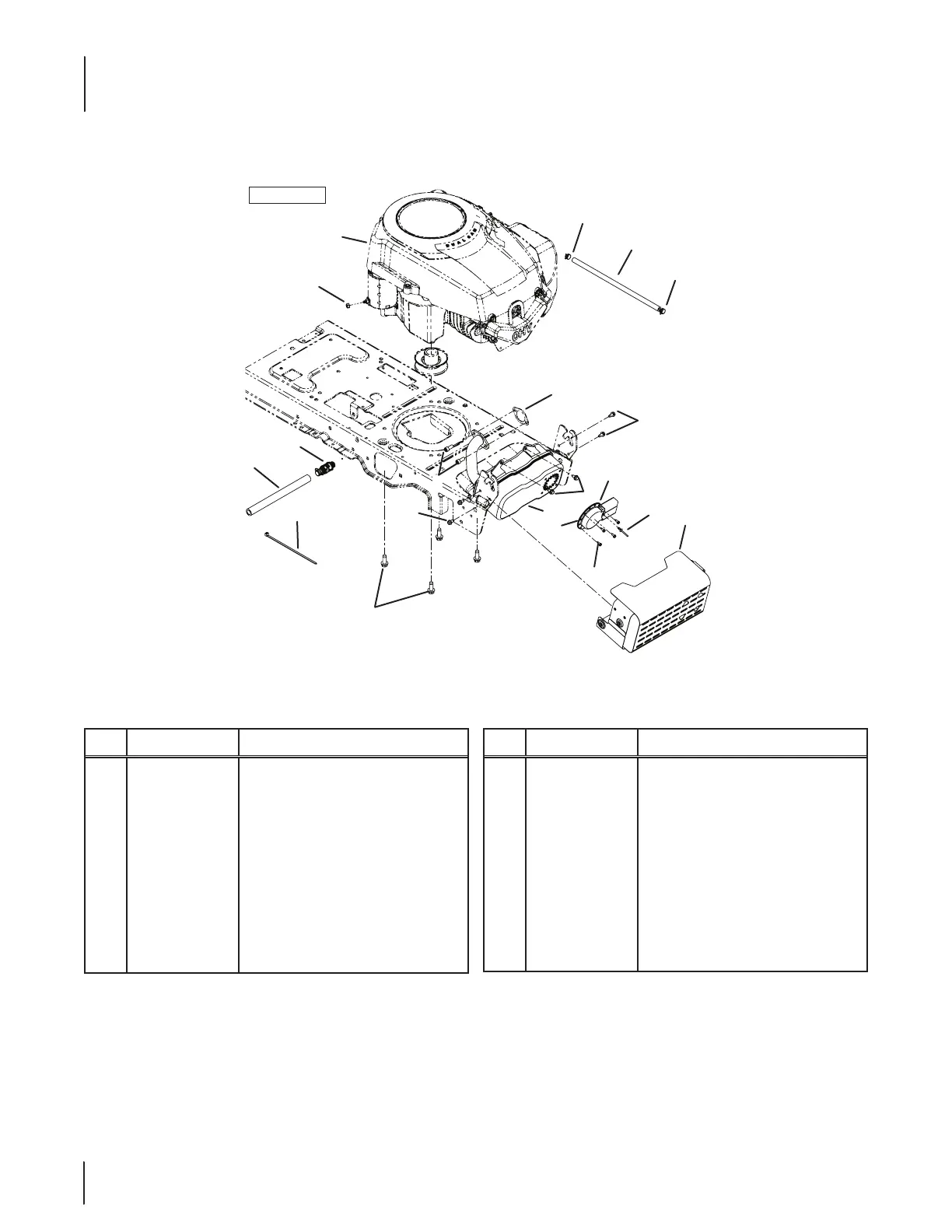

Engine Accessories
Kohler Single
2
1
1
15
Engine Shown
For Reference
Only
4
3
9
5
6
7
10
12
11
16
17
13
14
6
8
Ref.
Part Number Description
1 726-0205 Hose Clamp
2 751-10349 Fuel Hose
3 751-3141-14 Extension Hose
4 951-10517A Oil Drain
5 710-04683 Hex Washer Screw, ⁄-16 x 1.00
6 710-0599 Hex Washer Screw, ⁄-20 x .500
7 710 -1314A Screw, ⁄-18 x .750
8 721- 0377A Exhaust Gasket
9 725-0157 Cable Tie, ⁄ x .05 x 7.4
Ref.
Part Number Description
10 751-0564B Muer Deector
11 751-10353 Long Muer Deector
12 710-0227 Hex Washer Screw, #8-18 x .500
13 728-04000 Rivet, .188 x .300
14
683-04549-0637
Muer Shield Assembly
15 712-0271 Sems Nut, ⁄-20
16 751-11022 Kohler Single Muer
17 710 -1652 Hex Washer Screw, ⁄-20 x .625

Cub Cadet LTX 1040 Specifications

General

Engine Brand	Kohler
Engine Model	Courage
Cutting Width	42 inches
Transmission Type	Hydrostatic
Deck Material	Steel
Turning Radius	18 inches
Number of Speeds	Infinite
Cutting Height	1.5 - 4 inches
Number of Blades	2
Front Tire Size	15x6-6
Rear Tire Size	20x8-8
Blade Engagement	Manual
Warranty	3 years limited
Engine Type	Single-cylinder OHV
