Cub Cadet LTX 1040 Illustrated Parts Manual

35
20
19
17
18
16/21
14
15
12
12
11
11
9
10
10
9
8
7
6
5/22
5/22
4
1
3
2

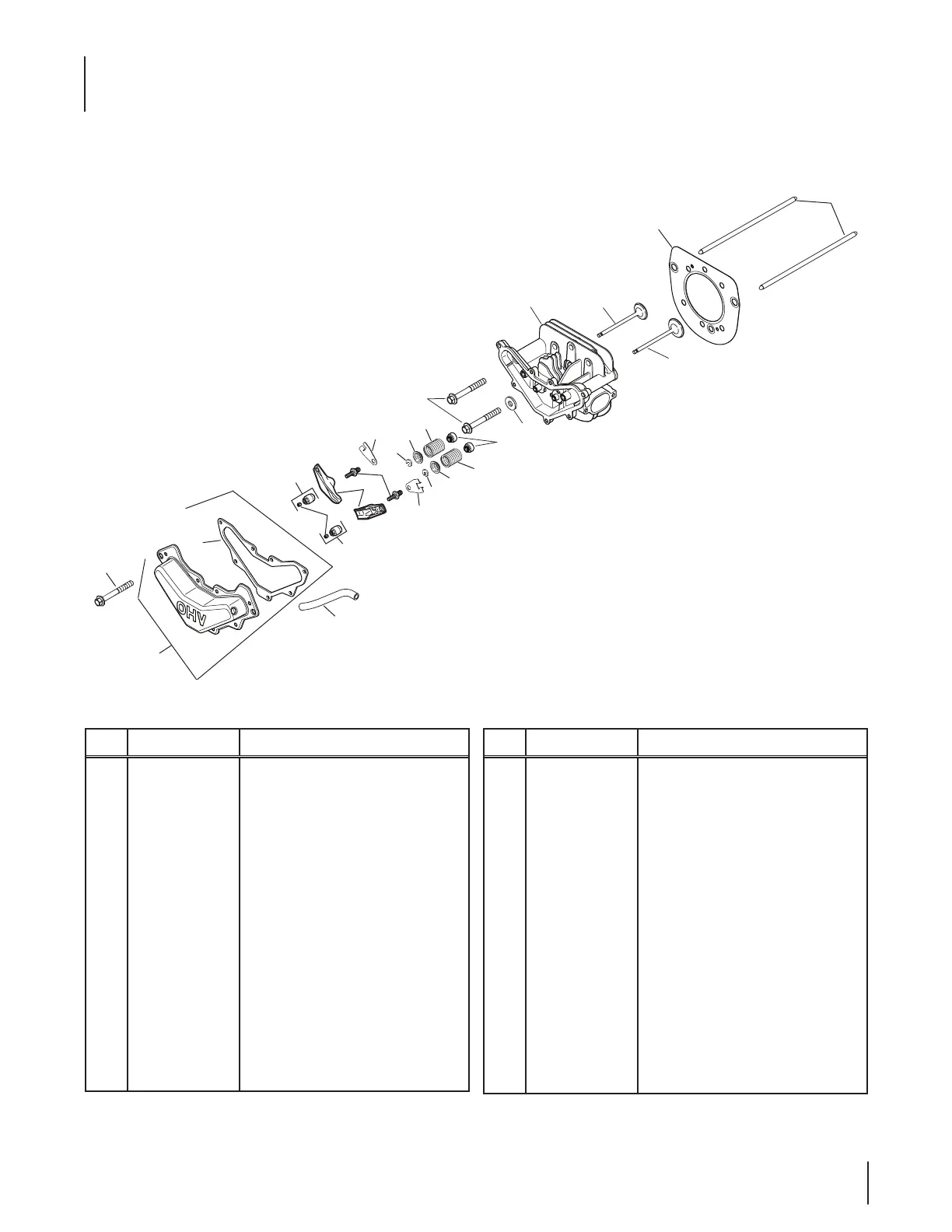

Kohler SV590-3222 Head/Valve/Breather
Ref. Part Number Description
1 KH-20 -041-13-S Valve Cover Gasket
2 KH-M-645020-S Flg. Thd. Frm. Screw, M6 X 1.0 X 20
3 KH-20-326-20-S Breather Hose
4 KH-20-599-04-S Rocker Pivot Assembly (Inc. 6)
5
KH-20-086-04-S
Set Screw
6 KH-20-186-01-S Rocker Arm
7 KH-20-072-08-S Rocker Stud
8 KH-20-146-03-S Push Rod Guide Plate
9 KH-20-062-01-S Retainer Lock
10 KH-20-173-01-S Valve Spring Cap
11 KH-20-089-03-S Valve Spring
12 KH-28-032-01-S Valve Stem Seal
14 KH-12-468 -05 Flat Washer, ⁄
15 KH-20-086-02-S Flange Screw, M10 X 1.5 X 80
Ref. Part Number Description
17 KH-20-016-01-S Exhaust Valve
18 KH-20-017-01-S Intake Valve
19 KH-20-841-01-S
Cylinder Head Gasket Kit (Inc. 2, 13,
14, 23, 24, 25, 26, 27, 28 & 29)
20 K H -2 0 - 411- 0 4 -S Rod, Push
21 K H -2 0 - 318 -11- S Kit, Cylinder Head Kit (Inc. 28 & 29)
22 KH-20-599-03-S Rocker Arm Pivot Kit(Includes 6)
23 KH-12-041-01 Carburetor Gasket *
24 KH-12-041-02 Air Cleaner Base Gasket *
25 KH-20 -041-12-S Exhaust Gasket *
26 KH-20- 041-18-S Heat Deector Gasket *
27 KH -20 -041-17-S Heat Deector Gasket *
28 KH-25-086-87-S Hex Socket Head Cap Screw *
29 KH-X-21-1 Spring Lock Washer, ⁄ *
* -- Not Illustrated

Cub Cadet LTX 1040 Specifications

General

Engine Brand	Kohler
Engine Model	Courage
Cutting Width	42 inches
Transmission Type	Hydrostatic
Deck Material	Steel
Turning Radius	18 inches
Number of Speeds	Infinite
Cutting Height	1.5 - 4 inches
Number of Blades	2
Front Tire Size	15x6-6
Rear Tire Size	20x8-8
Blade Engagement	Manual
Warranty	3 years limited
Engine Type	Single-cylinder OHV
