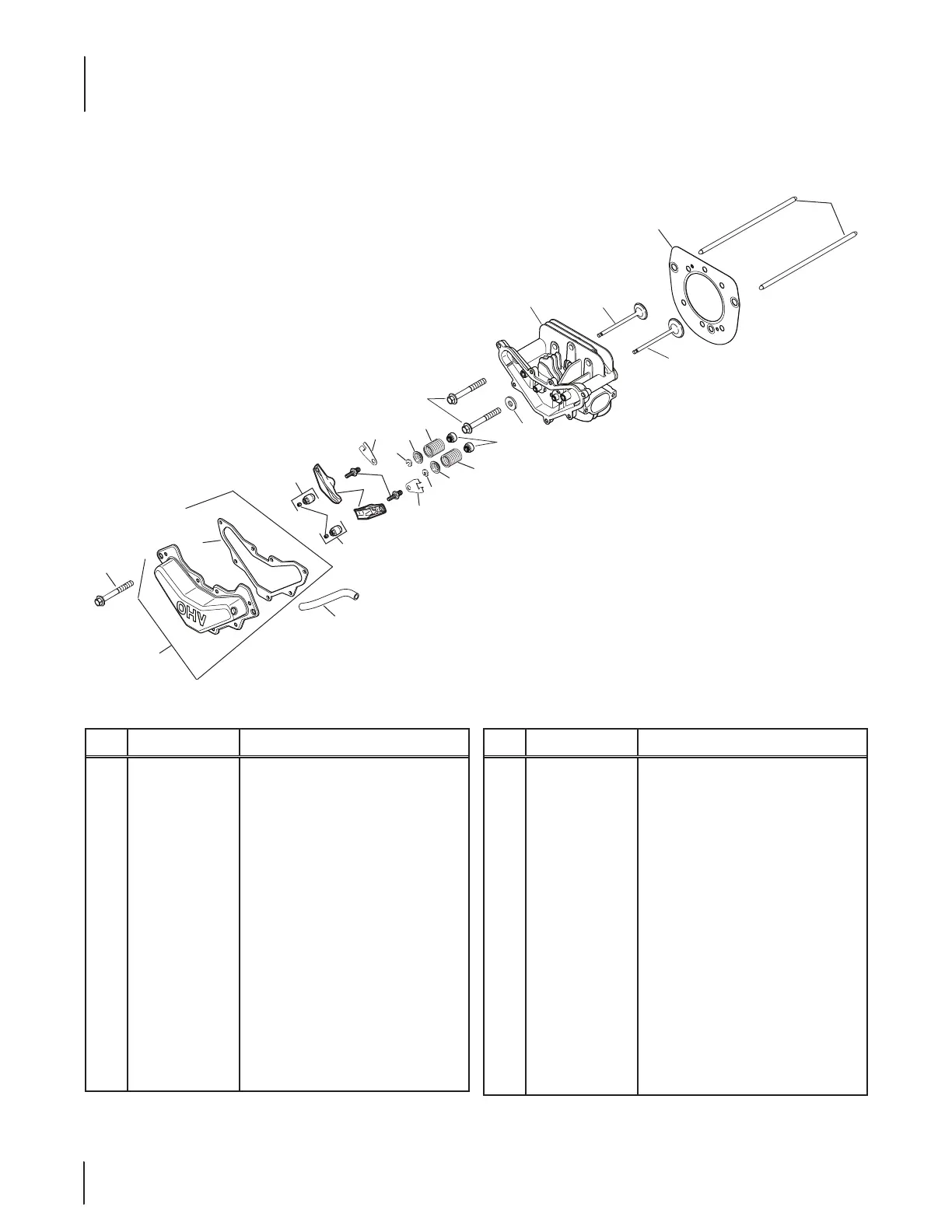

Kohler SV590-0220 Head/Valve/Breather
Ref. Part Number Description
1 KH-20-096-07-S Valve Cover Kit (Includes 2)
2 KH-20 -041-13-S Valve Cover Gasket
3 KH-M-645020-S Flg. Thd. Frm. Screw, M6 X 1.0 X 20
4 KH-20-326-20-S Breather Hose
5 KH-20-599-04-S Rocker Pivot Assembly (Includes 6)
6
KH-20-086-04-S
Set Screw
7 KH-20-186-01-S Rocker Arm
8 KH-20-072-08-S Rocker Stud
9 KH-20-146-03-S Push Rod Guide Plate
10 KH-20-062-01-S Retainer Lock
11 KH-20-173-01-S Valve Spring Cap
12 KH-20-089-03-S Valve Spring
14 KH-12-468 -05 Flat Washer, ⁄
15 KH-20-086-02-S Flange Screw, M10 X 1.5 X 80
Ref. Part Number Description
17 KH-20-016-01-S Exhaust Valve
18 KH-20-017-01-S Intake Valve
19 KH-20-841-01-S
Cylinder Head Gasket Kit (Includes
2, 13, 14, 23, 24, 25, 26, 27, 28 & 29)
20 K H -2 0 - 411- 0 4 -S Rod, Push
21 K H -2 0 - 318 -11- S Kit, Cylinder Head (Includes 28 & 29)
22 KH-20-599-03-S Kit Pivot, Rocker Arm (Includes 6)
23 KH-12-041-01 Carburetor Gasket *
24 KH-12-041-02 Air Cleaner Base Gasket *
25 KH-20 -041-12-S Exhaust Gasket *
26 KH-20- 041-18-S Heat Deector Gasket *
27 KH -20 -041-17-S Heat Deector Gasket *
28 KH-25-086-87-S Hex Socket Head Cap Screw *
29 KH-X-21-1 Spring Lock Washer, ⁄ *
* -- Not Illustrated
