Cub Cadet LTX 1040

43

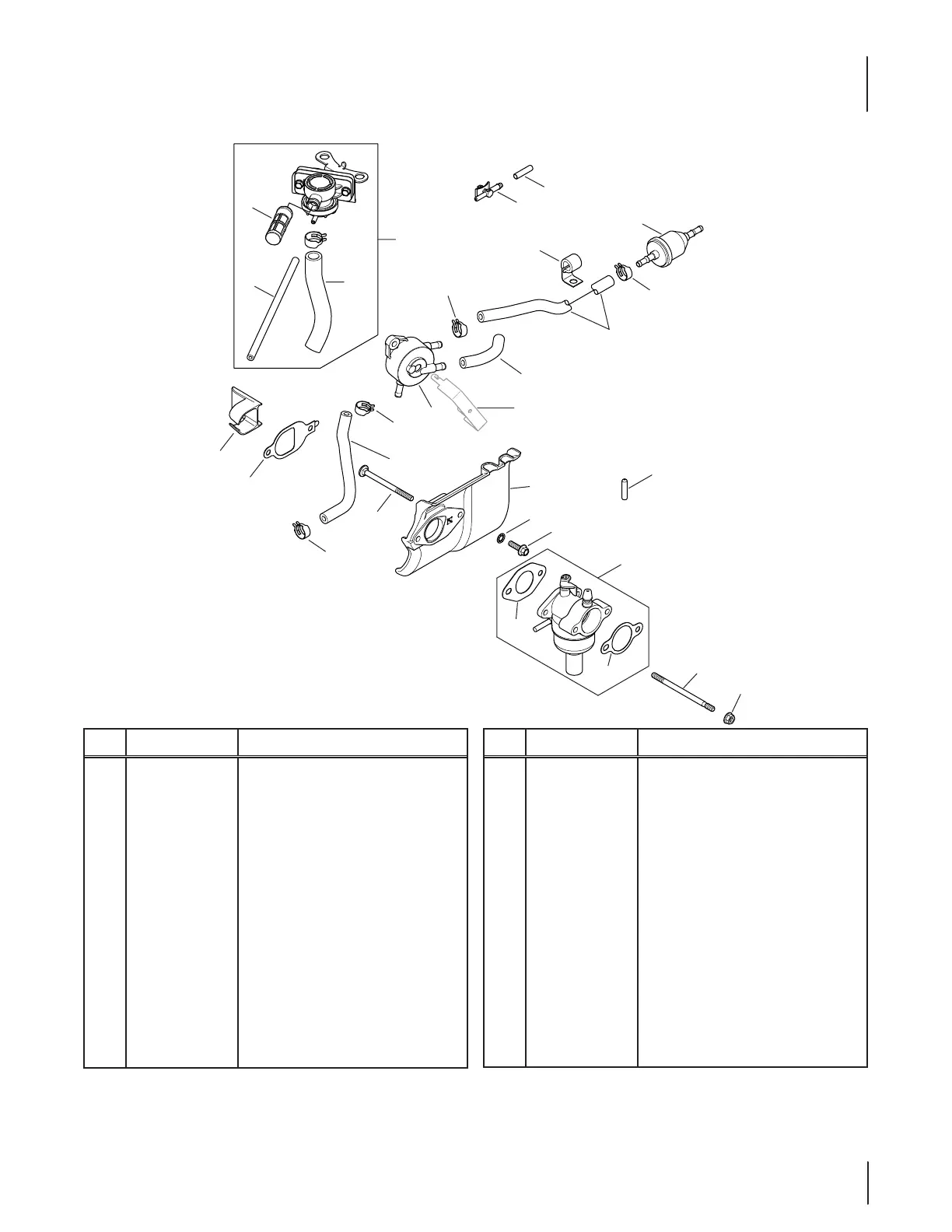

Kohler SV590-3222 Fuel System
6
11/31
10
9
4
9
12
13
14
17
18
19
34
20/28/29/30/32/33
23
24
25
26
27
12
9
9
8
5
1
2
22
21
AIR INTAKE/
FILTRATION
Ref. Part-Number Description
1 KH-25-173-23-S Masking Cap
2 KH-25-155-40-S SAI Connector
9 KH-25-237-14-S Hose Clamp, ⁄
10 KH-47-154-01-S Cable Clip
11
KH-25-050-22-S1
Fuel Filter
12 K H -2 5 -111- 34 -S Fuel Line
12 K H -2 5 -111- 34 -S Fuel Line
13 KH-12-353-10 Fuel Line
14 KH-24-393-16 Fuel Pump
17 KH-20-265-09-S Heat Deector Kit
18 K H -X-2 2-11 Int. Tooth Lock Washer, ⁄
19 KH-M-651020-S Flange Screw, M6 X 1.0 X 20
23 KH-20-072-05-S Stud, M6 X 1.0 X 100
Ref. Part-Number Description
24 KH-M-641060-S Flange Nut, M6 X 1.0
25 KH-20-072-07-S Carburetor Stud
26 KH-20- 041-18-S Heat Deector Gasket
33 KH-20-853-37-S Carb Tier III Walbro Kit (Inc. 21, 22)
34 KH-25-173-25-S Masking Cap
— KH-25-454-05-S Tie
—
KH-12-755-109-S
High Altitude Kit
— KH-12-755-110-S Choke Repair Kit
— KH-12-757- 02 Float Repair Kit
— KH-12-757- 03 Carburetor Repair Kit
— KH-12-757-33 Solenoid Repair Kit
— KH-12-757-37-S Bowl Replacement Repair Kit
— KH-20-755-07-S High Altitude Kit
