33

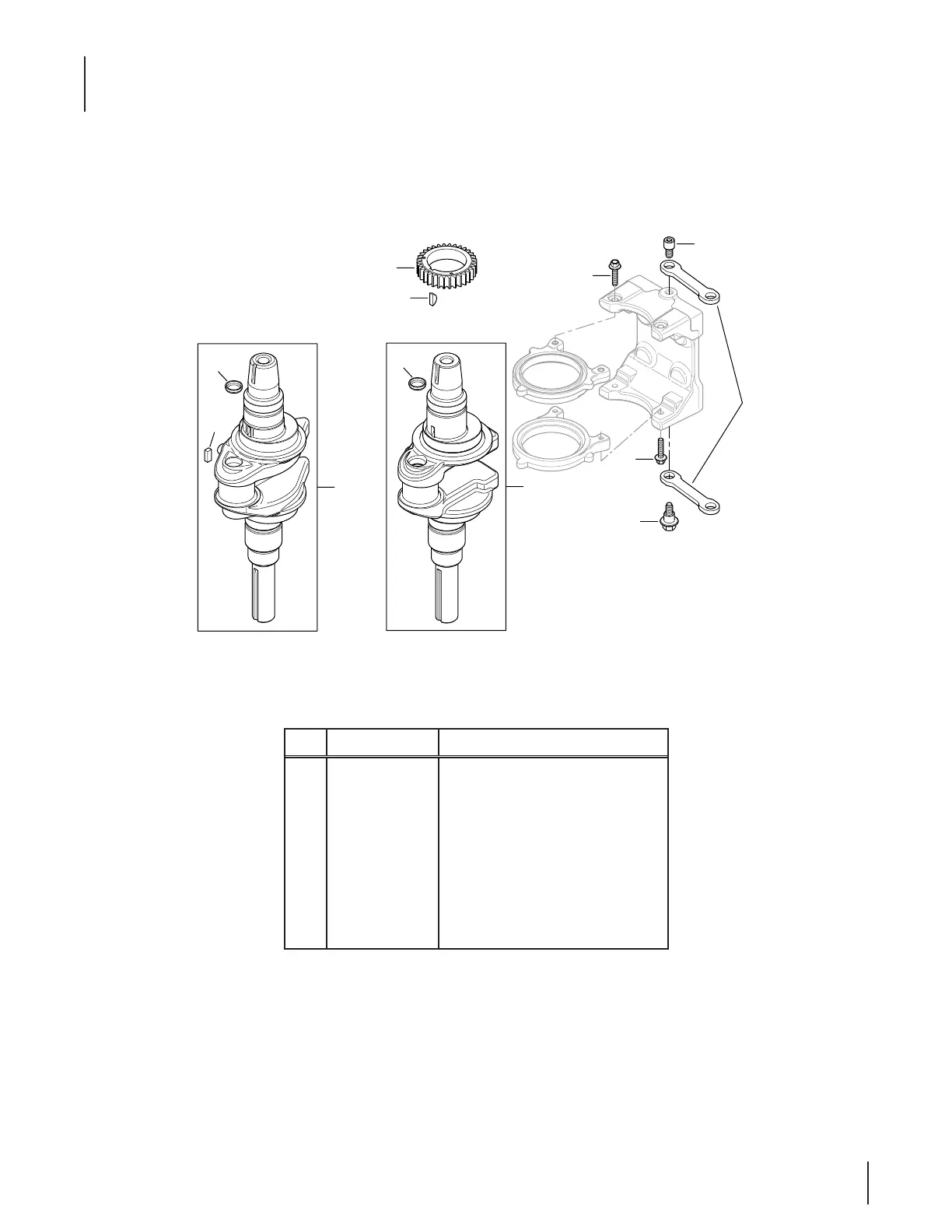

Kohler SV590-3222 Crankshaft
Ref. Part Number Description
1 KH-20-014-32-S Crankshaft Assembly Kit
2 KH-25-139-27-S Cup Plug
3 KH-X-42-15 Key, ⁄ X ⁄
4 KH-20 - 043-15-S Crankshaft Gear
5
KH-25-086-137-S
Flange Screw, M6 X 1.0 X 25
6
KH-25-086-214-S
Link Pivot Screw
7 KH-20-186-04-S Balance Weight Linkage
8
KH-25-086-213-S
Shoulder Screw
1/13
6
3
2
4/11
5
5
8
7
9/12
10
2
