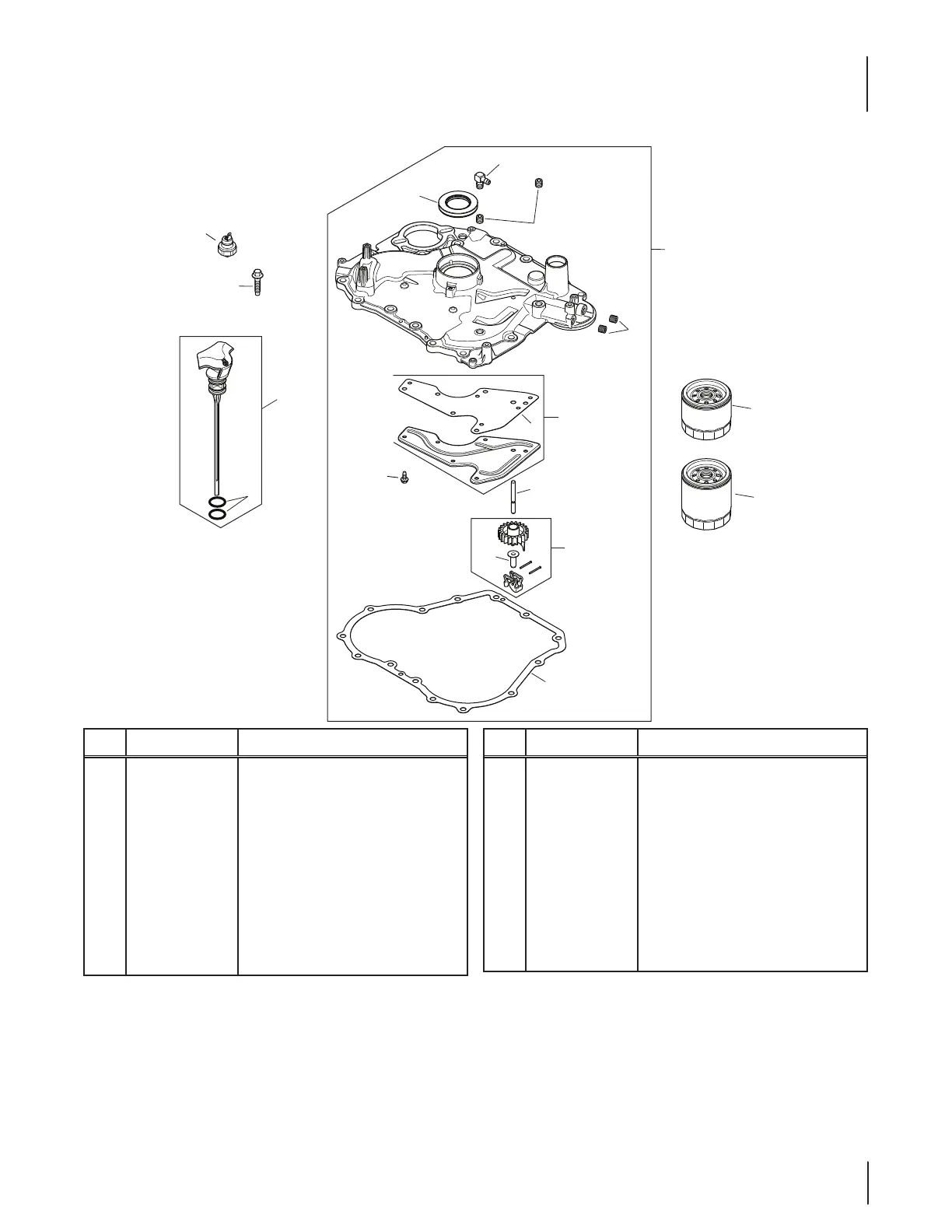

Kohler SV590-0220 Oil Pain/Lubrication
10
1
2
5
4
3
17
11
7
6
8
9
12�
15
13
14
16
5
Ref. Part Number Description
1
KH-20-040-06-S
Dipstick Assembly-Std Yellow
(Includes 2)
2 KH-20 -153- 01-S O-Ring
3 KH-12-050-01-S Oil Filter
4 KH-20-009-30-S
Closure Plate Assembly (Includes
5-14)
5 KH-25-139- 60 -S Ctsk Pipe Plug, ⁄
6 KH-20-096-02-S Oil Passage Cover Kit (Includes 7)
7 KH-20-041-02-S Oil Passage Gasket
Ref. Part Number Description
8 KH-20-144-03-S Governor Cross Shaft
9 KH-25-310-07-S Governor Gear Assembly
10 KH-12-380- 01 Governor Regulating Pin
11 KH-20-041-01-S Closure Plate Gasket
12 KH-M-545013-S Flg. Thd. Frm. Screw, M5 X 0.8 X 13
13 KH-20-032-01-S Oil Seal
14 KH-25-155-0 90° Hose Connector
15
KH-25-086-127-S
Hex Flange Screw, ⁄
To Next Page
