Culligan 9" - Backwash Flow Control Replacement

17
01021076
Backwash Flow Control Replacement
Refer to Figure 7 through Figure 9, Table 2, and instructions below to replace the backwash flow control.
1. Remove the cover by releasing the cover fastener from the control valve. See Figure 7 and
Figure 8.
2. Remove the drain clip and pull the drain elbow straight off. See Figure 9.
3. Remove the backwash flow control located behind the elbow.
4. Install the correct backwash flow control. See Table 2.
5. Reverse the procedure to reassemble.
NOTE The number on the flow control should face into the valve body.
NOTE Do not re-install the cover until the drain line tubing is connected.
A

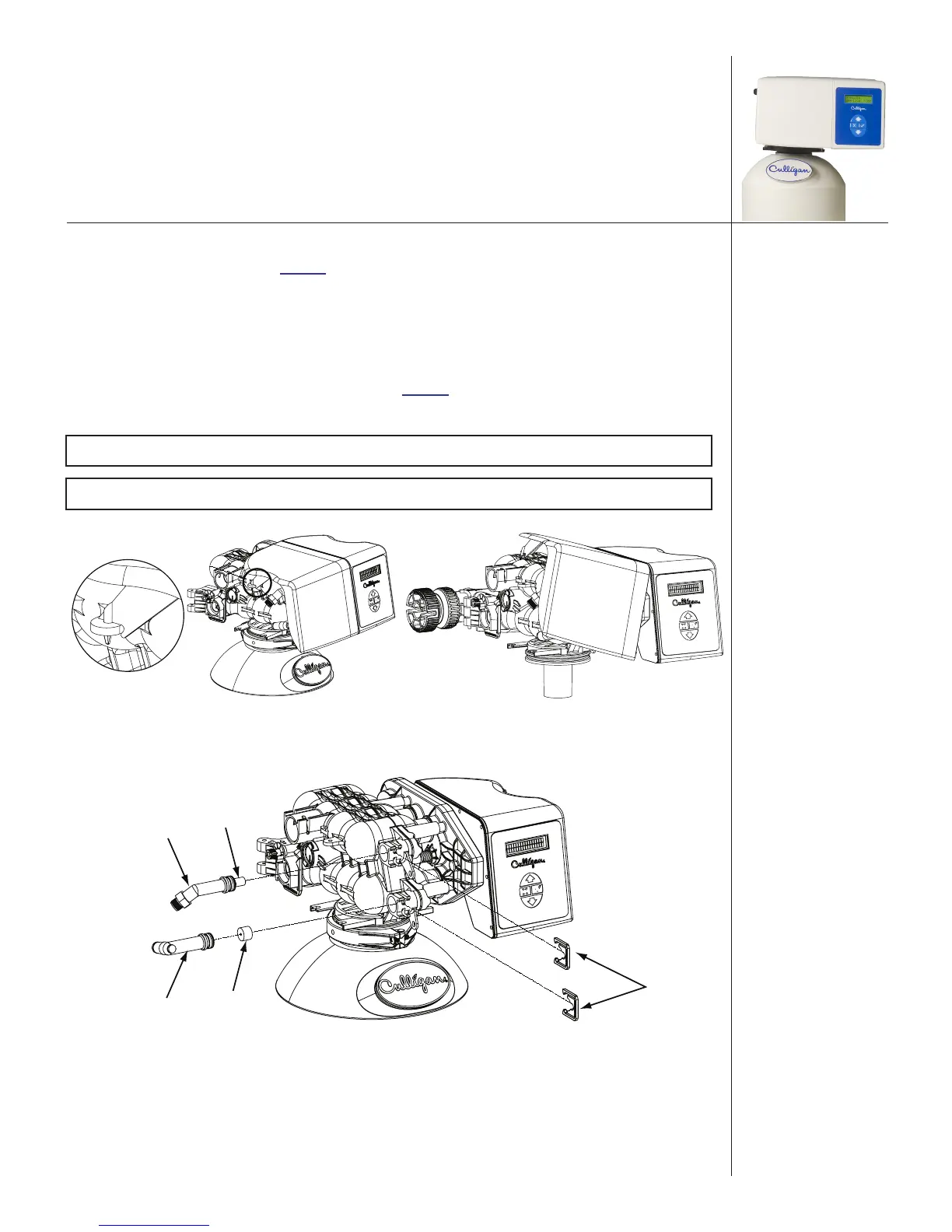

Figure 7. HE softener cover fastener clip. Figure 8. Removing the HE softener cover.
Drain Elbow
Flow Control
Clips
Filter
Brine Elbow
Figure 9. Removing the drain elbow and brine elbow.
