Install Aqua-Sensor
1. Measure the sensor cable length as shown in dimension Y. See Figure 2 and Table 1 (the Aqua-
Sensor cord is set at the factory for a 9" tank).
Tank Model Dimension Y
9" Quadra-Hull™ Tank 40"
10" Quadra-Hull Tank 44"
12" Quadra-Hull Tank 42"
14" Quadra-Hull Tank 52"
Table 1. HE cable lengths.
2. Loosen the small Aqua-Sensor Plug; a needle-nose pliers works
best. See Figure 3.
3. Moisten the cable sheath and slide the cable grip up or down to
the proper cable length.
4. Tighten the small Aqua-Sensor plug so that the fitting cannot slide
along the cable.
NOTE There must be no kinks or bends in the cable.
5. Insert the probe and cable through the Aqua-Sensor port.
6. Tighten the Aqua-Sensor plug into the Aqua-Sensor port.
NOTE The media tank must be backwashed so that the Aqua-Sensor probe can
fall into the proper position. See “Recommended Aqua-Sensor® Start-Up
Procedure” on page 39.
Small
Aqua-Sensor
®
Plug

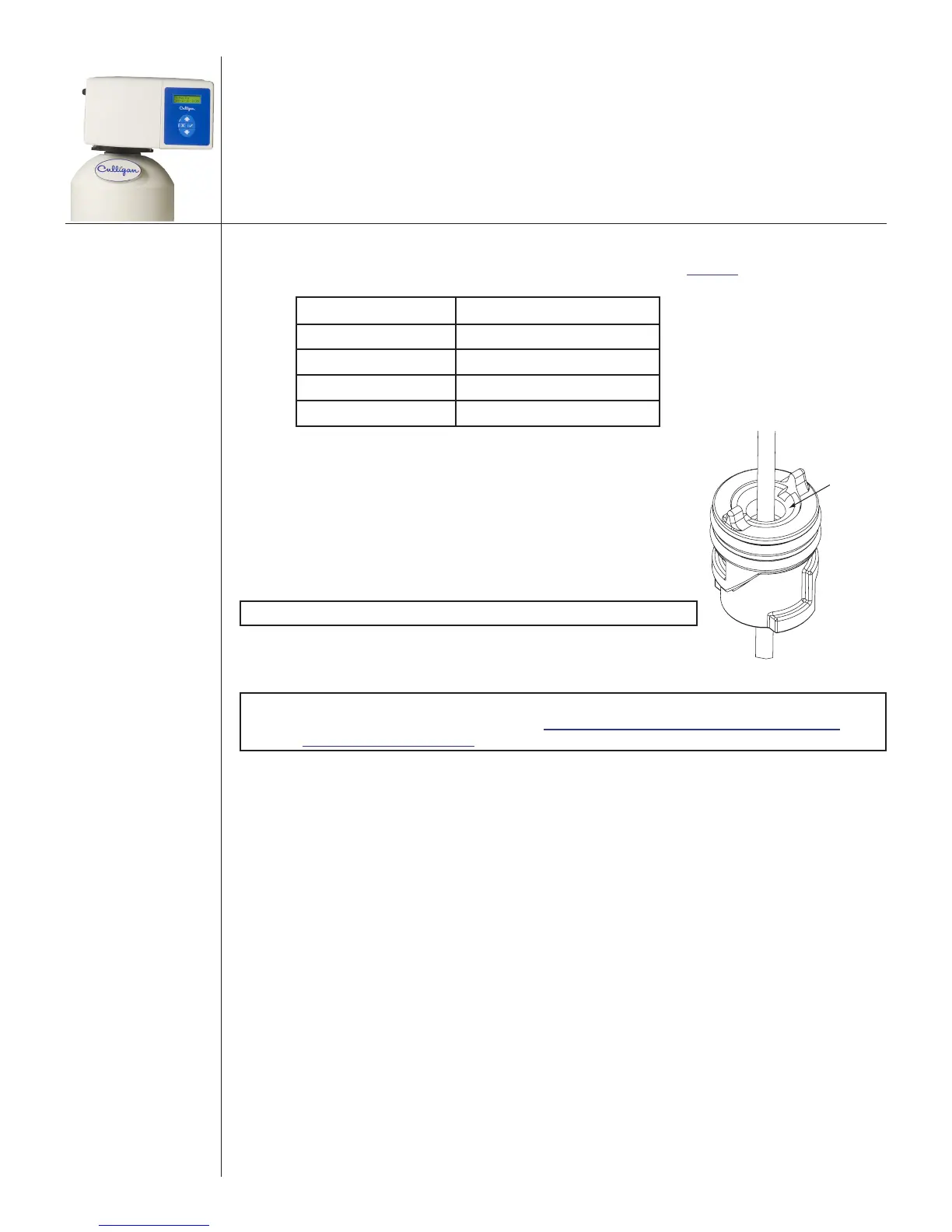

Figure 3. Aqua-Sensor plug.
