26
01021076
Align slot on frame with edge of
circuit board in the enclosure
Insert screw on enclosure
into holder on control valve
Align slot on frame
with edge of circuit
board in the enclosure
Align slot on frame with edge of
circuit board in the enclosure

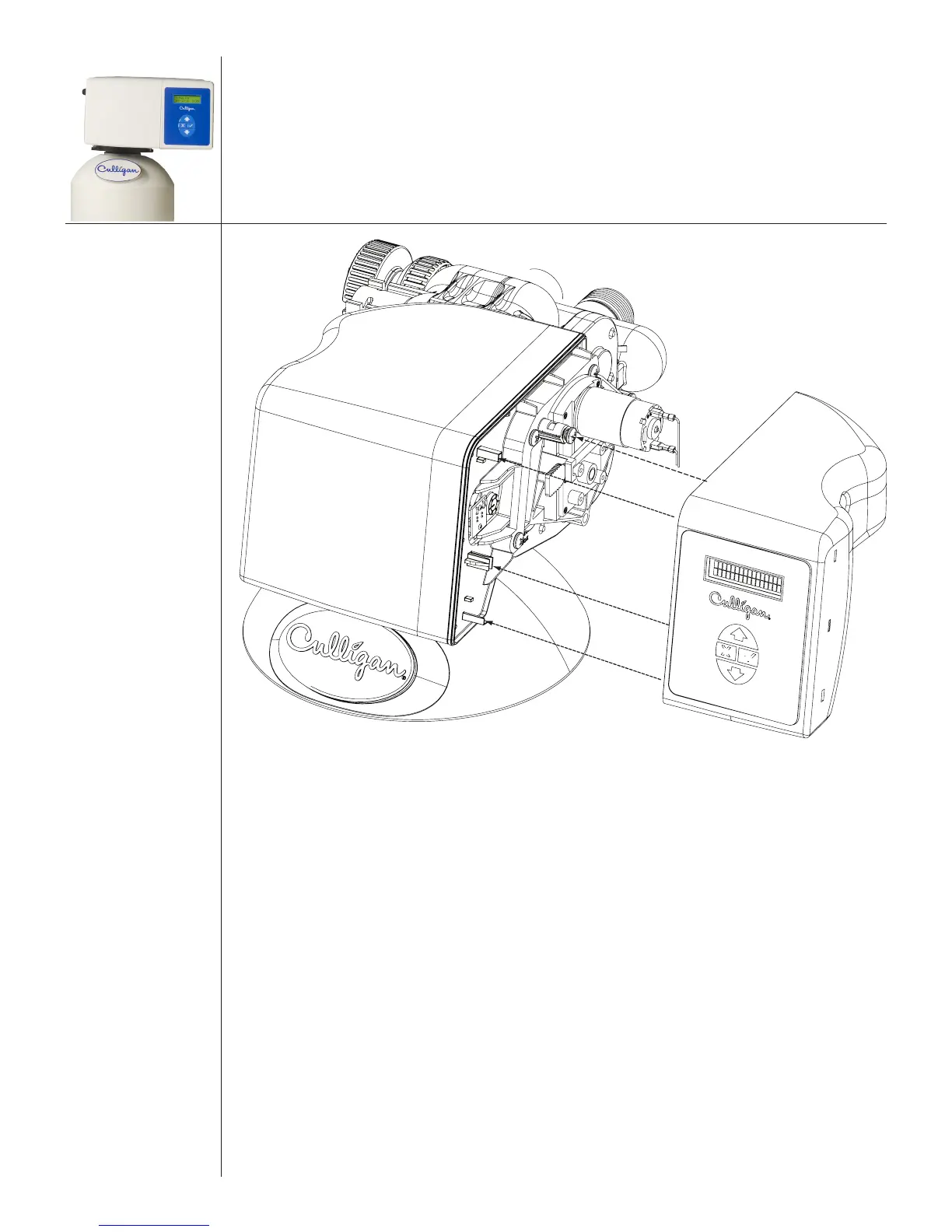

Figure 21. Attaching enclosure cover to control valve.
c. Screw the enclosure on the control.
d. Attach the strain relief fittings to the Aqua-Sensor probe and 2.5 VAC power cord and
insert into the enclosure.
e. Connect the 24 V power cord to the two 24 V terminals on the transformer.
