Culligan CTM 21 - Loading the Media

Installation 7
Cat. No. 01029343
Loading the Media
Table 4. Loading Quantities.
Model
21 24 30 36
Carbon Filter
Cullsan Medium Gravel (lbs)
100 200 300 450
Cullsan U (lbs) 100
100 150 200
Cullar D Plus (lbs)
165 220 330 495
Freeboard (inches) 21 23 24 25
Depth Filter
Cullsan Medium Gravel (lbs) 100 200 300 450
Cullsan U (lbs) 100 100 100 200
Cullsan G50 (lbs) 100 100 150 250
Cullsan A (lbs) 165 220 330 495
Cullcite (lbs) 150 250 350 500
Freeboard (inches) 24 31 33 33
NOTE Do NOT attempt to load the media without having the tank in its final position. Moving the tank once
the media has been loaded will be difficult at best.
1. Cover the top of the distributor pipe with tape that will prevent media from entering the distributor.
2. Use a funnel in the opening to add 6” of water to protect the distributor.
3. Load Media per Table 4 and Figure 4 or Figure 5.
4. Clean tank threads, remove tape and check for any foriegn materials
NOTE Minimize the amount of water added until final positioning of the tank with the control valve mounted.

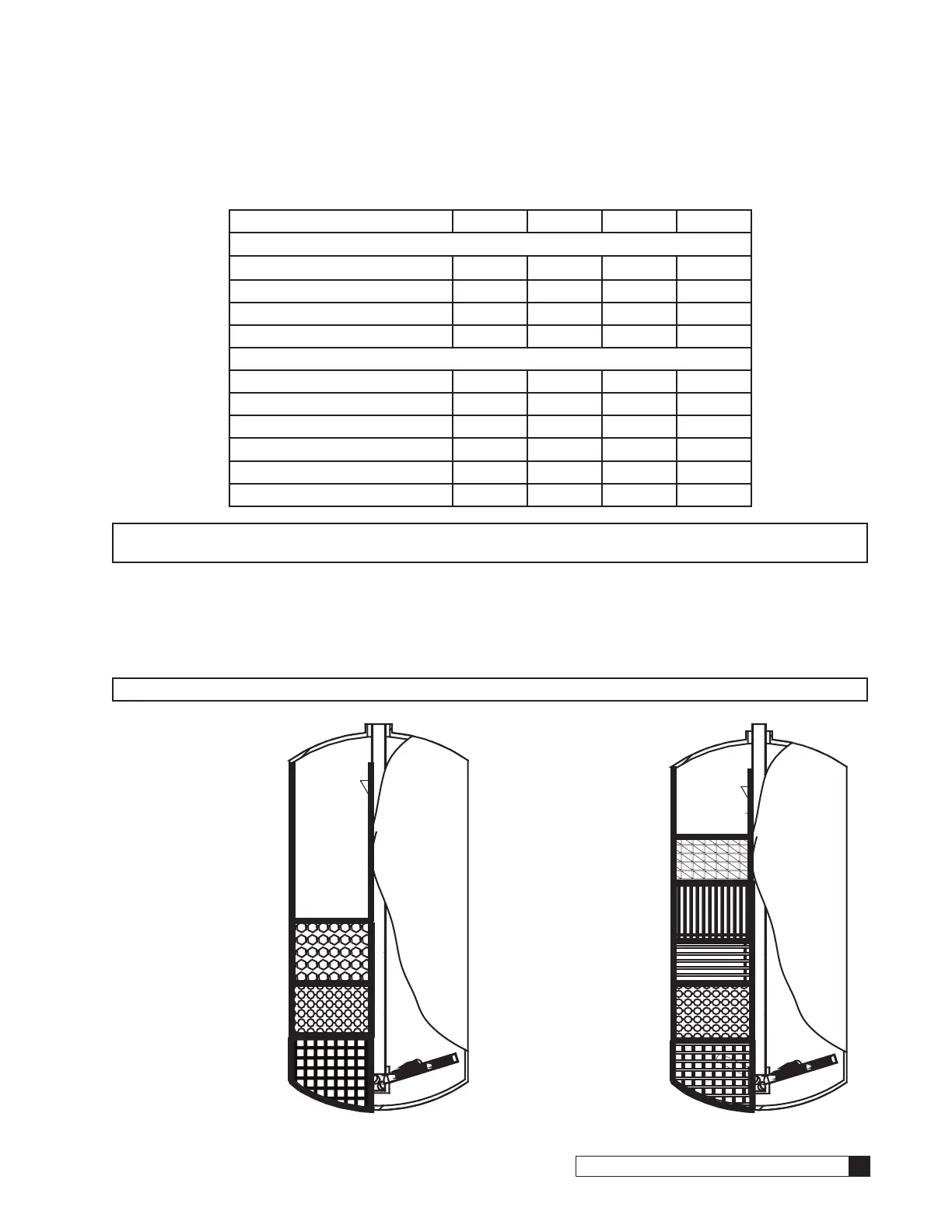

Figure 4. Carbon Filter Figure 5. Depth Filter
Freeboard
Cullar D Plus
Cullsan U
Cullsan Medium Gravel
Freeboard
Cullcite
Cullsan A
Cullsan G50
Cullsan U
Cullsan Medium Gravel
