Culligan E2 Plus Series User Manual

40 Culligan® Series E2 Plus Reverse Osmosis
40 Cat. No. 01023094
Series E2 Plus Major Components and Water Connections, 220V/ 50 Hz,
International
Pump
Waste and Recirculation
Control Valves
Feed and Product
Flow Meters
Pump Pressure
Gauge
Filter
Arrays
Front Panel
Assembly
Prefilter
Throttling
Valve
1
3
2
Filter
Arrays

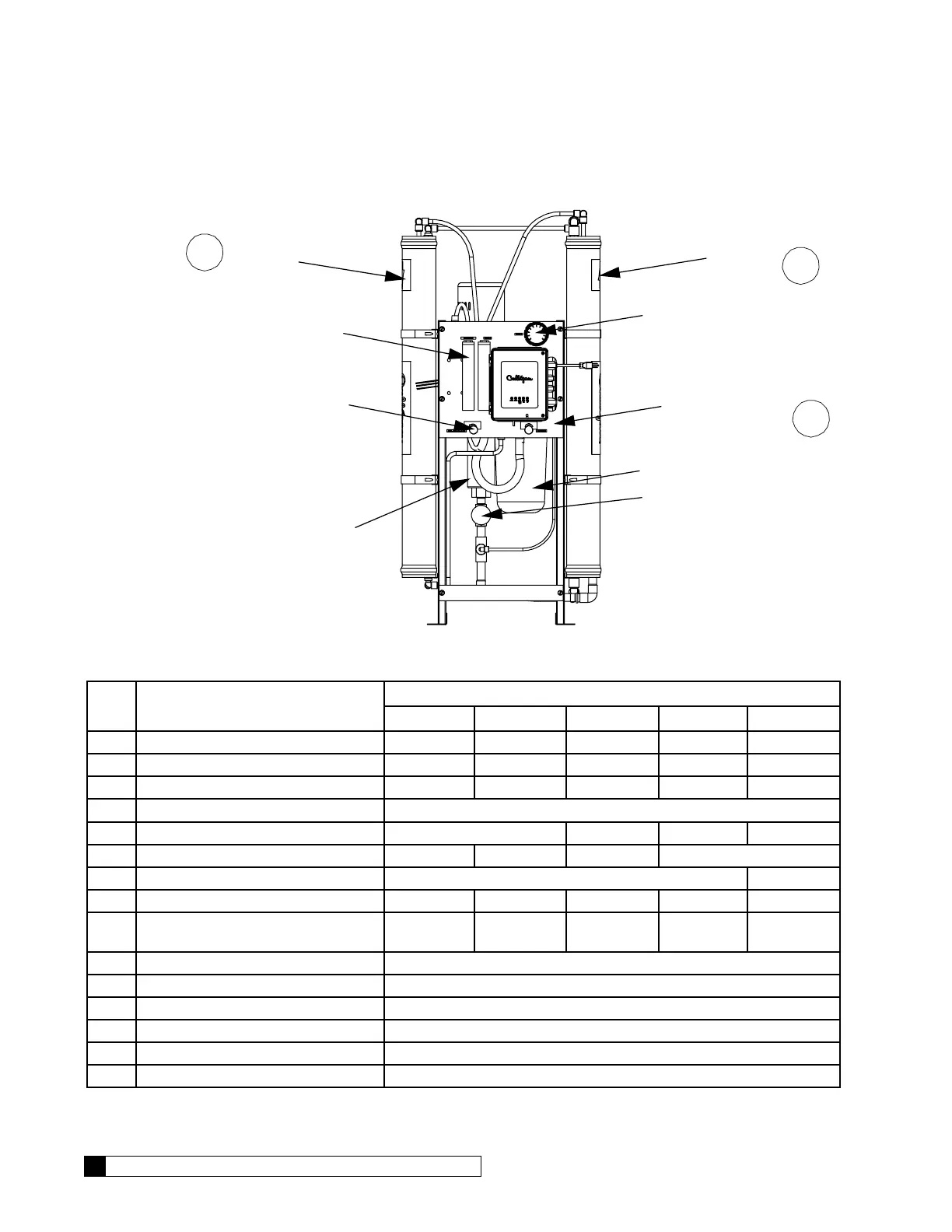

Figure 22. E2 Plus RO front view.
Item Description Product Number
E2-2 Plus E2-3 Plus E2-4 Plus E2-5 Plus E2-6 Plus
— RO System, E2 Plus, 50 Hz 01023850 01023851 01023852 01023853 01023854
1 Assembly, Generic, E2 Plus, 50 Hz 01023886 01023886 01023886
Assembly, Side, Pump, E2 Plus,50Hz 01023887 01023887 01023887
Assembly, Side, Filter, E2 Plus, 50 Hz 01025993
2 Filter Array, 2-2 01021963 01021963
3 Filter Array, 2-1 01021927 01021927
2 Filter Array, 3-2 01021962
3 Filter Array, 3-1 01021928 01021928 01021928
Membrane, 4”x40” 01024290
(2)
01024290
(3)
01024290
(4)
01024290
(5)
01024290
(6)
8 Cartridge Filter, 5 micron, 10”BB 00403232
18 Gate Valve 01021544
Controller 01024598
Piping Feed 01022959
Piping Concentrate 01022958
Piping Product 01021941
