Culligan E2 Plus Series User Manual

Series E2 Plus International 49
Cat. No. 01023094
Membrane Assembly, E2-6 Plus, 220V/ 50 Hz, International
This assembly is used on the E2-6 Plus and is mounted on the left side when facing the unit.
15
4
3
5
6
45 6
7
4
5
6
4
5
6
7
6
10
9
4
5
6
6
10
9
7
11
8
11
8
Bottom View
Top View

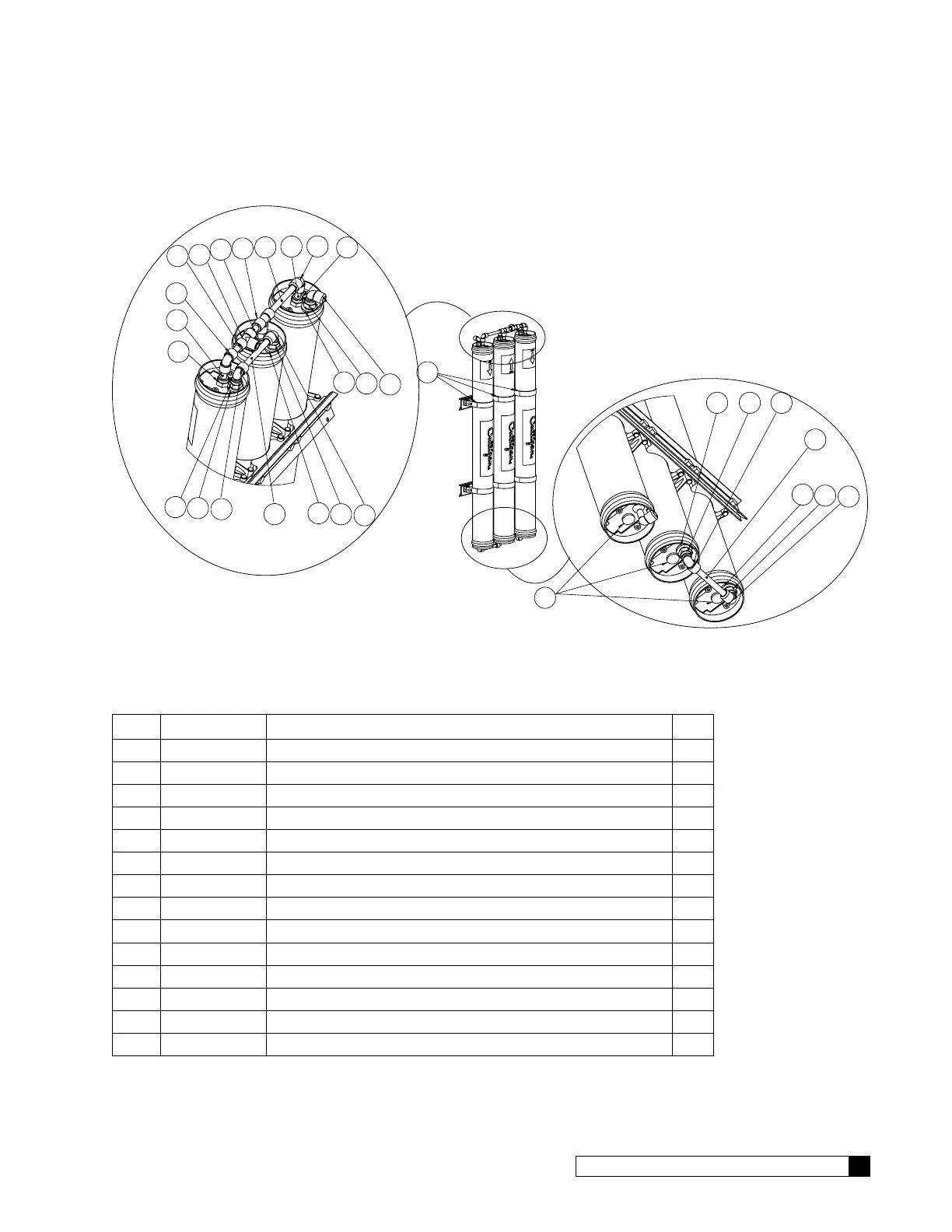

Figure 31. E2-6 Plus Membrane Assembly.
Item Part No. Description Qty
— 01021962 Filter Array, 3-2
1 — Mount Filter 3 2
2 01021540 Housing, Filter, FRP 4" End Port 3
3 — Plug, 1/2", Threaded, PVC Sch.80 3
4 — Fitting, Stem Elbow, 1/2Tx1/2Stem, PI 6
5 — Bushing, 3/4x1/2, Txt, PVC Sch.80 6
6 — Fitting, Male Connector, 1/2Tx1/2NPTE, PI 9
7 00901801 Tubing, 1/2", PE, Natural —
8 — Fitting, Union Tee, 1/2T, PI 2
9 — Fitting, Union Elbow, 1/2T, PI 2
12 01008007 Element RO, 4" Dia x 40" 3
13 — Decal, Culligan Script 3
14 — Decal, Flow Arrow 3
15 01024102 Saddle Strap Kit (2 straps, 2 saddles, 4 screws) 3
