Dial-a-Softness
Dial-a-Softness is a manual adjustment built into
the control valve that allows for variable hardness
bypass into the softened water. The hard water
bypass can be adjusted to produce 1–3 gpg
hardness bleed. Shipped from the factory the Dial-
a-Softness knob is set to the “SOFTEST” position
(no hard water bypass). See Figure 13.
To set the Dial-a-Softness:
1. Locate the Dial-a-Softness knob on the
control valve.
2. Set the Dial-a-Softness knob to posi-
tion A, B, or C as outlined in the table
below, based on raw water hardness; this should produce a 1–3 gpg hardness bleed.
Letter on Dial-a-Softness Knob 1–3 gpg Hardness Bleed
SOFTEST 0
A Greater than 20 gpg
B Between 10–20 gpg
C Less than 10 gpg
NOTE The HE must take into account the adjusted capacity if the Dial-a-Softness was
changed. See Advanced System Setup to update the Dial-a-Softness setting.
Plumbing Connections
Shipped with each softener is a Culligan
®
bypass valve, which is used to connect the softener to the
plumbing system. The bypass allows the softener to be isolated from the water service line if service is
necessary while still providing water to the home. The bypass valve can be directly plumbed into the
system, or can be connected with the following optional sweat connection kits.
• P/N 01010783 1" Sweat Copper Adapter Kit
• P/N 01016564 3/4" Sweat Copper Adapter Kit
• P/N 01016565 3/4" Elbow Sweat Copper Adapter Kit
• P/N P1018757 1" NPT Plastic Elbow Adapter Kit
• P/N P1018758 1" NPT Plastic Installation Kit
CAUTION! Close the inlet supply line and relieve the system
pressure before cutting into the plumbing! Flooding
could result if not done!
CAUTION! When making sweat connections, use care to keep heat
away from the plastic nuts used to connect the plumbing
to the bypass. Damage to these components might result
otherwise.

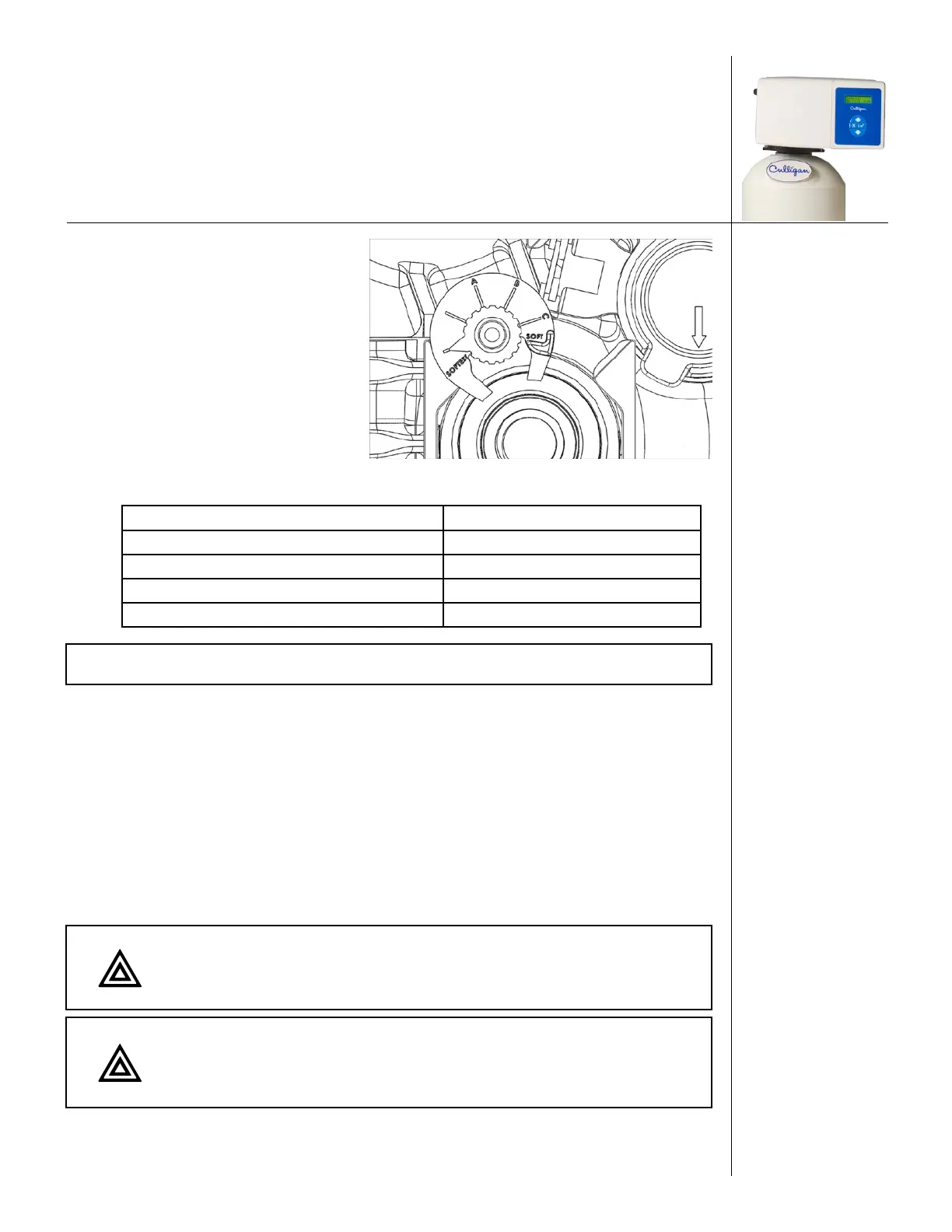

Figure 13. Dial-a-Softness knob.
