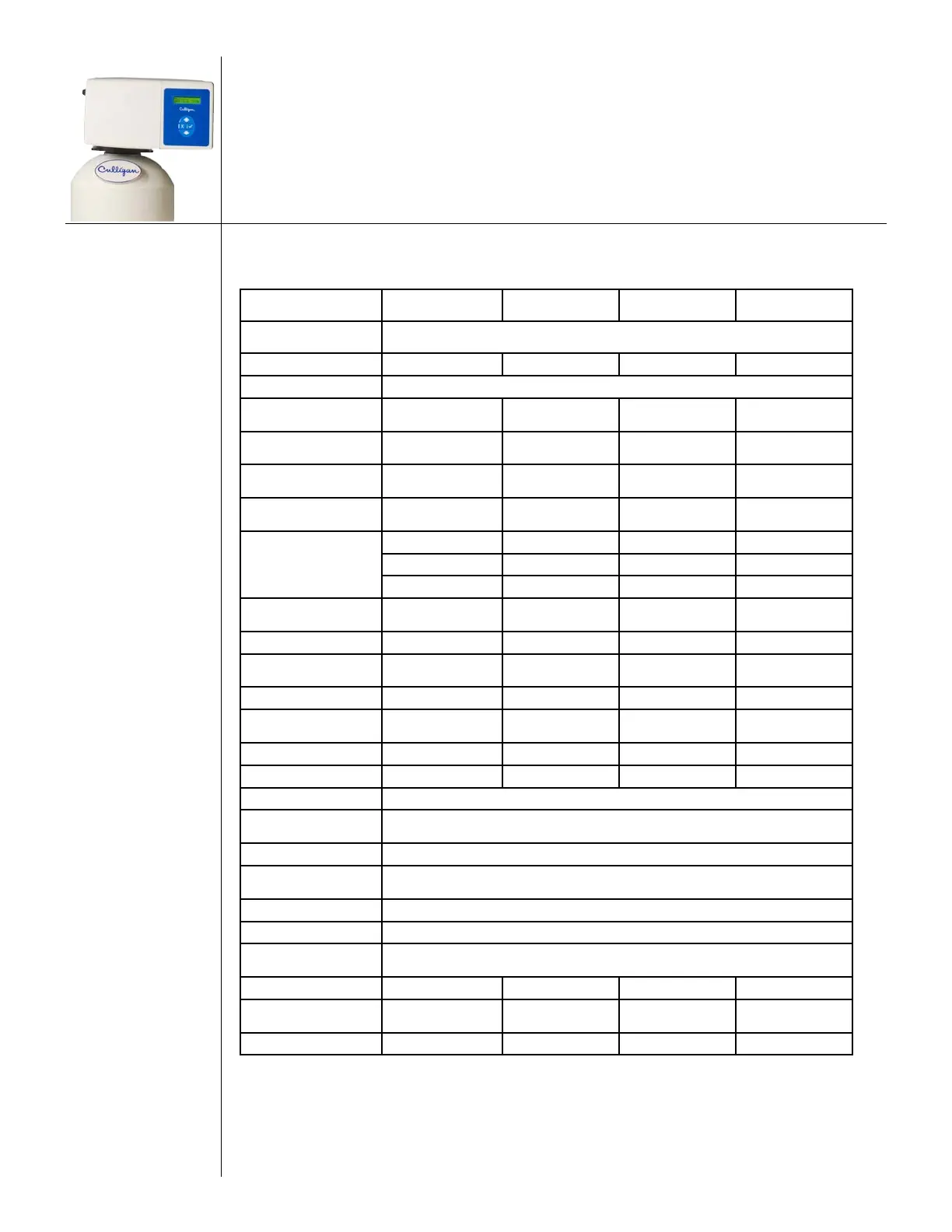

Culligan HE - Specifications

2
01021076
Culligan High Efciency Water Conditioners with
Aqua-Sensor
®
Device or Soft-Minder
®
Meter—Downow Regeneration
Model 9" Model 10" Model 12" Model 14" Model
Control Valve 1” Reinforced Thermoplastic w/ HE Circuit Boards
Overall Conditioner Ht 56 in 62 in 60 in 73 in
Media Tank Design Quadra-Hull™
Media Tank Dimensions
(Dia x Ht)
9 x 48 in 10 x 54 in 12 x 52 in 14 x 65 in
Salt Storage Tank Dimen-
sions (Dia x Ht)
16 x 43 in
or 18 x 43 in
16 x 43 in
or 18 x 43 in
18 x 43 in 24 x 42 in
Exchange Media, Type
and Quantity
Cullex® Media,1.0 ft
3
Cullex Media, 1.5 ft
3
Cullex Media, 2.0 ft
3
Cullex Media, 3.0 ft
3
Underbedding, Type and
Quantity
Cullsan®
Underbedding, 12 lb
Cullsan
Underbedding, 15 lb
Cullsan
Underbedding, 20 lb
Cullsan
Underbedding, 25 lb
Exchange Capacity @ Salt
Dosage Per Recharge
17,854 gr @ 4.0 lb 26,781 gr @ 6.0 lb 31,352 gr @ 7.0 lb 51,726 gr @ 12 lb
27,108 gr @ 8.0 lb 40,662 gr @ 12.0 lb 48,458 gr @ 16.0 lb 75,582 gr @ 24 lb
31,736 gr @ 12.0 lb 47,604 gr @ 18.0 lb 59,267 gr @ 18.0 lb 88,549 gr @ 36 lb
Efficiency rated dosage
1
4,463 gr/lb @ 4 lb
salt dosage
4,463 gr/lb @ 6 lb
salt dosage
4,479 gr/lb @ 7 lb
salt dosage
4,310 gr/lb @ 12 lb
salt dosage
Freeboard to Media
2
14.5 in 14.5 in 16 in 25 in
Freeboard to
Underbedding
3
44.5 in 47.5 in 46 in 59 in
Salt Storage Capacity 250 lb or 375 lb 250 lb or 375 lb 375 lb 600 lb
Rated Service Flow @ Pres-
sure Drop
9.0 gpm @ 11 psi 9.4 gpm @ 12 psi 10.0 gpm @ 10 psi 10.6 gpm @ 11 psi
Auxiliary Flow Rate
4
10.8 gpm @ 15 psi 11.0 gpm @ 15 psi 12.6 gpm @ 15 psi 12.8 gpm @ 15 psi
Total Hardness, Maximum 75 gpg 99 gpg 99 gpg 99 gpg
Total Iron, Maximum 5 ppm
Hardness to Iron Ratio,
Minimum
8 gpg to 1 ppm
Operating Pressure 20-120 psi [138–862 kPa]
Operating Pressure
(Canada)
20-90 psi [138–621 kPa]
Operating Temperature 33-120°F [0–49°C]
Electrical Requirements 24V/60 Hz
Electrical Power Consump-
tion, Min/Max
8.4 watts/21.6 watts
Drain Flow, Maximum
5
2.5 gpm 2.5 gpm 3.0 gpm 5.3 gpm
Recharge Time, Average
6
Recharge Water
78 minutes 67 minutes 62 minutes 76 minutes
Consumption, Average
6
47 gallons 45 gallons 67 gallons 155 gallons
1
The efficiency rated dosage is only valid at the stated salt dosage and is efficiency rated according to NSF/ANSI Standard 44.
2
Measured from top of media to top surface of tank threads (backwashed and drained).
3
Measured from top of underbedding to top surface of tank threads.
4
Auxiliary flow rates do not represent the maximum service flow rate used for determining the softener’s rated capacity and efficiency and that continuous
operation at these flow rates greater than the maximum service flow rate may affect capacity and efficiency performances.
5
Backwash at 120 psi.
6
10 minute backwash, 4 lb. 9” model, 6 lb. 10” model, 7 lb. 12” model, or 12 lb. 14” model salt dosage.
