First Time
Setup

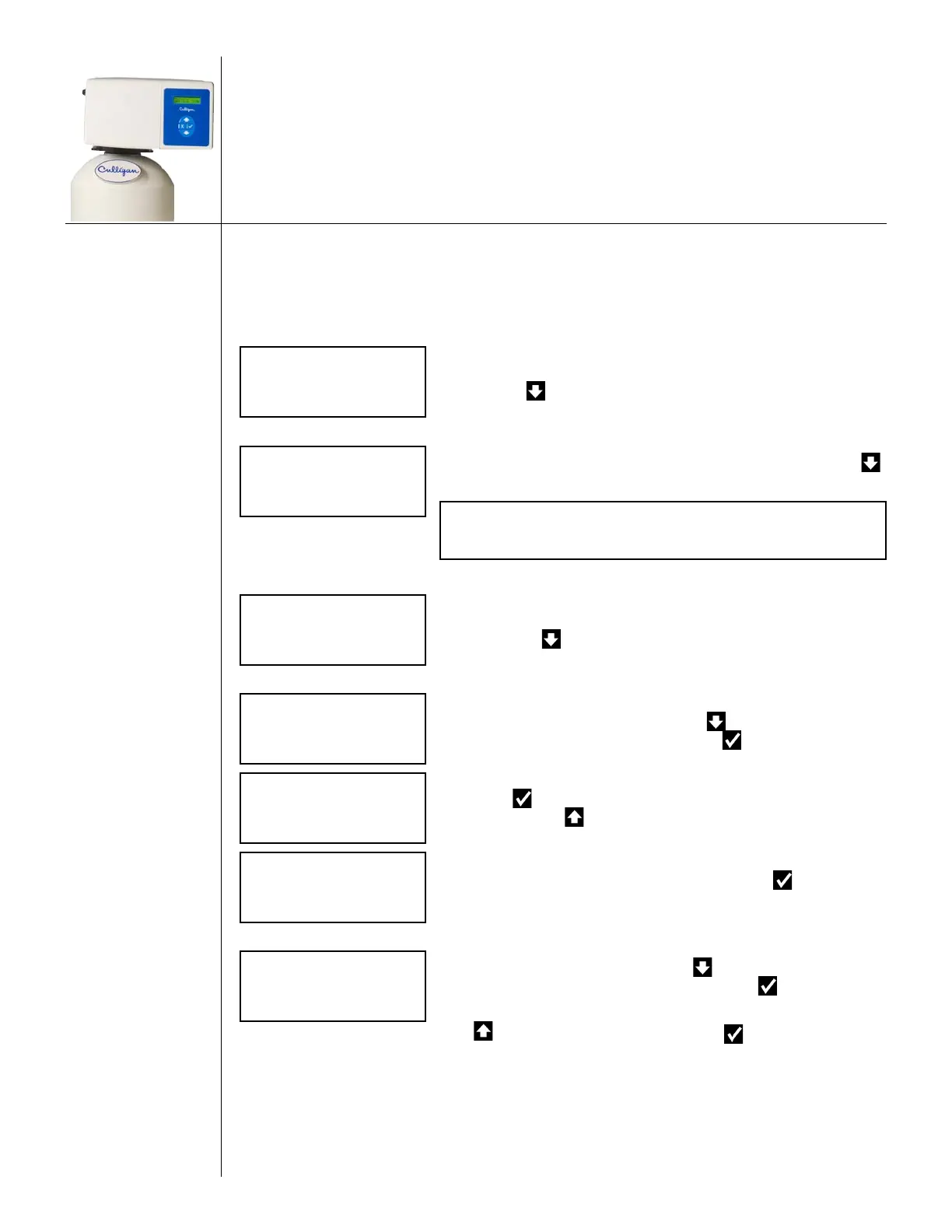

First Time Setup Procedure
When a new controller is first powered on, the screen will display the first time setup message. The HE
Controller is designed to simplify the setup and installation process by making some default recommenda-
tions during the initial setup. These default settings are appropriate for most common installations.
After completing the plumbing connections to the water softener, turn on and program the HE Controller.
FIRST TIME SETUP
PRESS DOWN ARROW
When a new controller is first turned on, the screen displays FIRST TIME
SETUP. Press to display the first setup screen.
Serial Number
S/N: 00000123
The screen displays the serial number for this Smart Controller. Press
to display the firmware version information screen.
NOTE If this unit will be installed with a modem, it is
required that this electronic ID number be reported
to Culligan on the IQR form.
Firmware Version
FWR216LT21
Jan 4 2012
The screen displays the firmware version and date installed for this Smart
Controller. Press to display the month setup screen.
Set Month (Jan–Dec)
SET MONTH
JAN
The screen displays the month setting. Press to accept the information
displayed (and view the next setting), or press to change the setting.
SET MONTH
>JAN
If you press the screen displays a cursor (>) symbol next to the dis-
played value. Press to see the next available value.
SET MONTH
>FEB
The screen displays February instead of January. Press to accept the
selected month and advance to the next setting, SET DAY.
Set Day (0–31)
SET DAY
>3
The screen displays the day setting. Press to accept the information
displayed (and view the next setup screen), or press to change the
setting.
Press to see the next available value. Press to accept the selected
day and advance to the next setting, SET YEAR.
