12 | JetScan
®
MPX 8200 strapping and corner module | Conguring strap length and printing
b. Set the Bin Limit to 10, 20 or 30 straps. Press the button to select the limit. The
limit can be different for each strapping module.
c. Set the Strap Face to Up (portrait side up in strapper) or Down (portrait side
down in strapper). Repeatedly press the button and stop on the desired facing.
d. If desired, press Apply to All Strappers to use the selected settings on all
congured strapping modules.
5. Press Save to save all changes. A successful save conrmation screen appears. To
return to the main-processing screen, do the following:
a. Press OK to prompt the Configure Sort Mode screen.
b. Press OK to prompt the SelectSortModeToCongure screen.
c. Press OK to prompt the Sort Setup tab screen.
d. Press the ExitSetup tab to prompt the Menu tab screen.
e. Press the Processing tab to prompt the main-processing screen.
Toprintacustommessage,date,timeandoperatorIDonstrappingpaper:
1. Press the Menu tab on the main-processing screen.
2. Press Setup on the Menu tab screen.

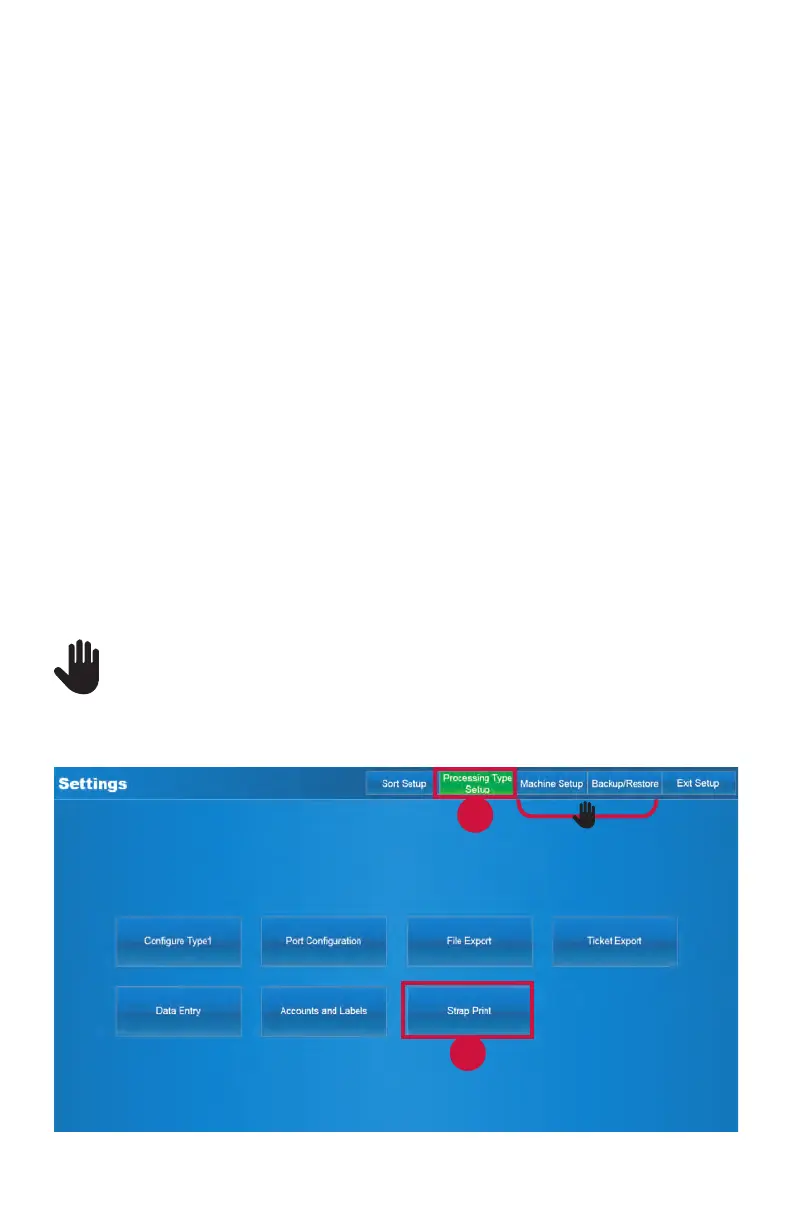

3. Press ProcessingTypeSetup to prompt the Settings screen below.
The Machine Setup and Backup/Restore tabs are for use only by trained
Cummins Allison service technicians.
4. Press Strap Print to prompt the Strap Print Settings screen.
4
3
6
8
5
