DKC600 (U) & DKC600 (U)Y SLIDING GATE OPERATOR USER’S MANUAL
Spring limit switch
Install the block as shown in Fig.9 and Fig.10. Release the gear clutch with the key and push
the sliding gate manually to pre-determine the position, screw the block to the rack and then
tighten the gear clutch with the key. Moving the gate electrically, adjust the block to the proper
position until the position of the opening and closing meet the requirement.。

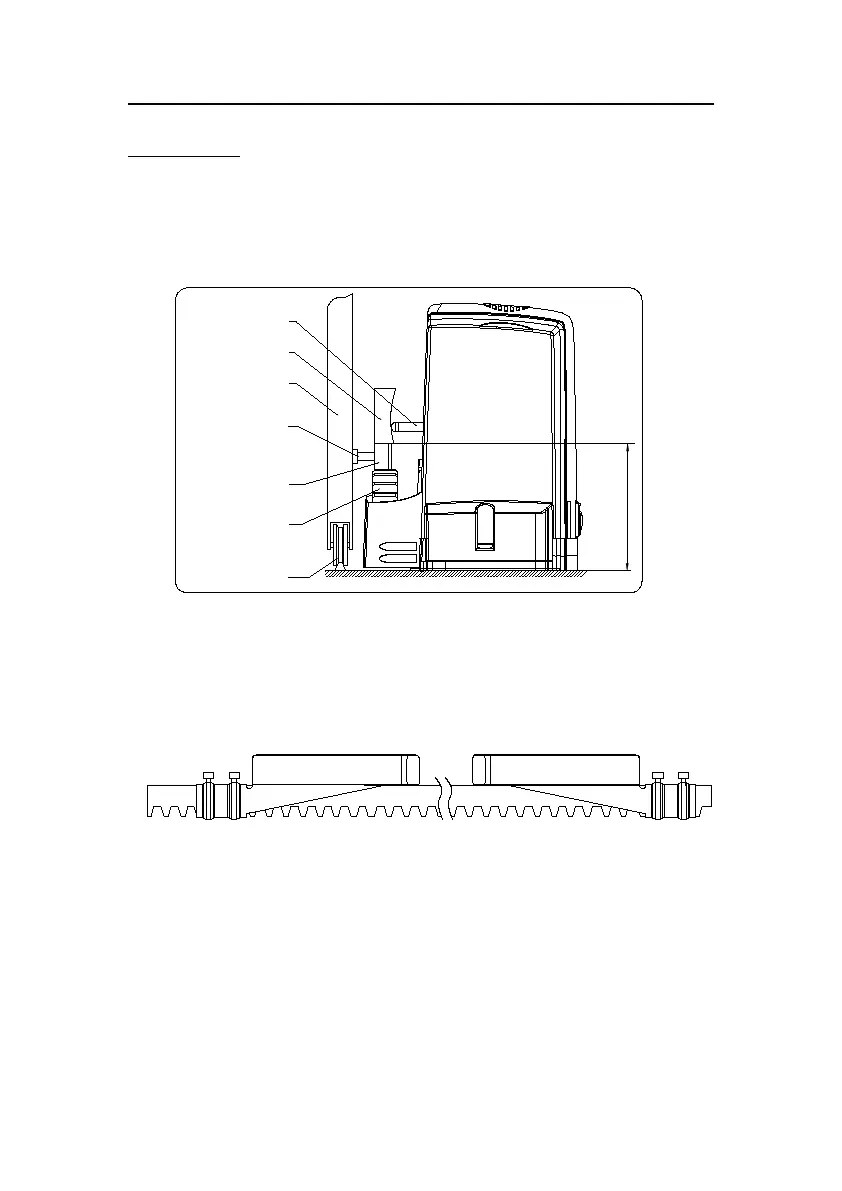

Fig.9
Style III
Fig.10
Block
Gate
Pawl
Rack
Gear
Guide rail
Spring limit switch
19 teeth: 122mm
24 teeth: 132mm
Left block
Right block
Screw the block on steel rack.
