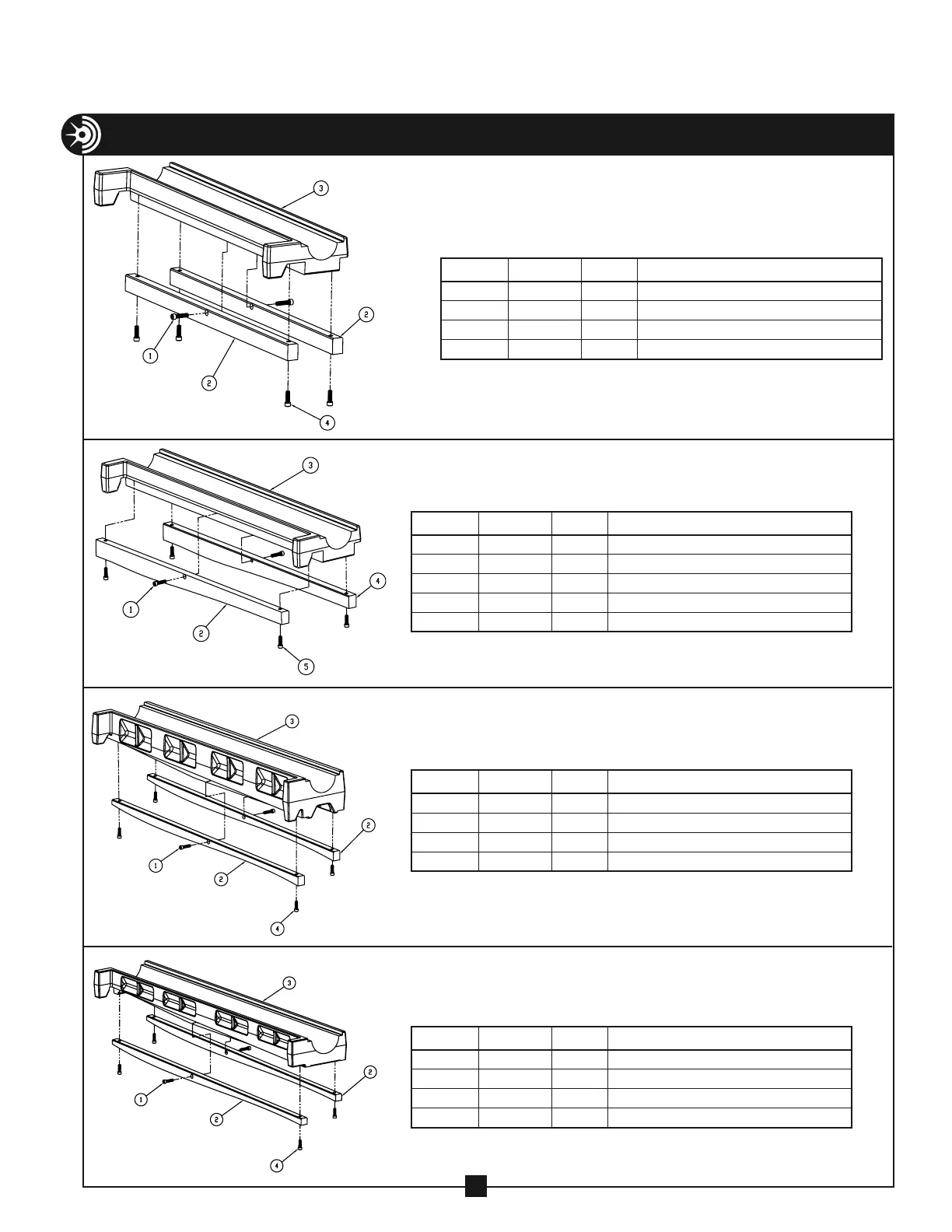

EXPLODED VIEW AND PARTS LIST — FOLLOW BARS
2½"
ITEM # PART # QTY. DESCRIPTION
1
254-004
2 SCREW, SKT. HD. CAP – 5/16-18 × 1¼"
2
254-113
2
RAIL
3
254-157
1
FOLLOW BAR LESS RAILS
4
99-60
4 SCREW, SKT. HD CAP – 5/16-18 × 1"
3"
ITEM # PART # QTY. DESCRIPTION
1
254-004
2 SCREW, SKT. HD. CAP – 5/16-18 × 1¼"
2
254-120
1
RAIL – LH
3
254-163
1
FOLLOW BAR LESS RAILS
4
254-192
1
RAIL – RH
5
99-60
4 SCREW, SKT. HD CAP – 5/16-18 × 1"
3½"
ITEM # PART # QTY. DESCRIPTION
1
254-004
2 SCREW, SKT. HD. CAP – 5/16-18 × 1¼"
2
254-127
2
RAIL
3
254-168
1
FOLLOW BAR LESS RAILS
4
99-60
4 SCREW, SKT. HD CAP – 5/16-18 × 1"
4"
ITEM # PART # QTY. DESCRIPTION
1
254-004
2 SCREW, SKT. HD. CAP – 5/16-18 × 1¼"
2
254-134
2
RAIL
3
254-145
1
FOLLOW BAR LESS RAILS
4
99-60
4 SCREW, SKT. HD CAP – 5/16-18 × 1"
TORQUE ALL SCREWS TO 20 FT–LBS
TORQUE ALL SCREWS TO 20 FT–LBS
TORQUE ALL SCREWS TO 20 FT–LBS
TORQUE ALL SCREWS TO 20 FT–LBS
