CONDUIT CENTERLINE BENDING RADII

ASSEMBLY & OPERATING INSTRUCTIONS – 254 CONDUIT BENDER

FOR OPERATING ON THE FLOOR

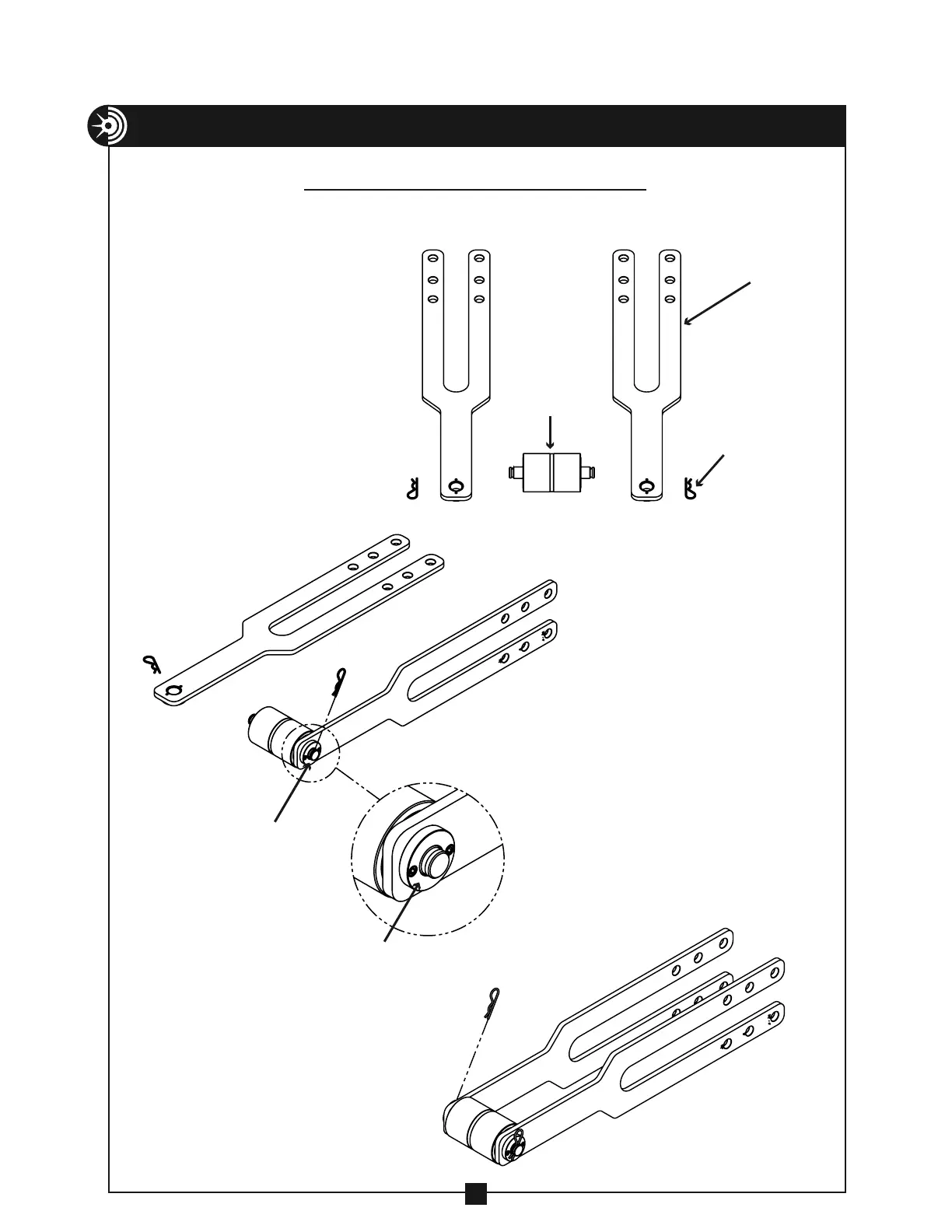

1. Locate the two frame

sides, roller assembly

and two spring clips.

2. Place one frame side onto the

roller assembly as shown and

secure with a spring clip.

NOTE: The collar in the end of

the frame side must be facing

outward.

ROLLER

ASSEMBLY

FRAME SIDE

SPRING CLIP

COLLAR

3. Place the second frame side

onto the roller assembly and

secure with a spring clip.

NOTE: The collar in the end

of the frame side must be

facing outward.
