Current Tools 254 - Specifications; Major Components - Bender; Major Components - Parts List

Model Number 254
Storage Box Size 60"W × 24"D × 28 1/2"H
Weight (w/Storage Box) 993 lbs.
Bending Capacity 2 1/2", 3", 3 1/2", 4" EMT, IMC and Rigid conduit
6
SPECIFICATIONS – 254 CONDUIT BENDER
MAJOR COMPONENTS – BENDER
ITEM CATALOG DESCRIPTION QTY.
1 254-100 HYDRAULIC CYLINDER (INCLUDES ITEM #2) 1
2 254-101 CYLINDER MOUNTING BLOCK WITH SET SCREW 1
3 254-107 CLEVIS PIN 1
4 254-148 CYLINDER BLOCK PIN 2
5 254-006 SPRING CLIP 6
6 254-104 FRAME SIDE ASSEMBLY 2
7 254-151 ROLLER ASSEMBLY 1
8 254-103 CLEVIS 1
9 254-108 CLEVIS RETAINING CLIP 1
10 254-149 SADDLE PIN 1
11 105 STORAGE BOX 1
12 506 CASTER SET – 2 RIGID, 2 SWIVEL 1
13 291 HYDRAULIC HOSE 1

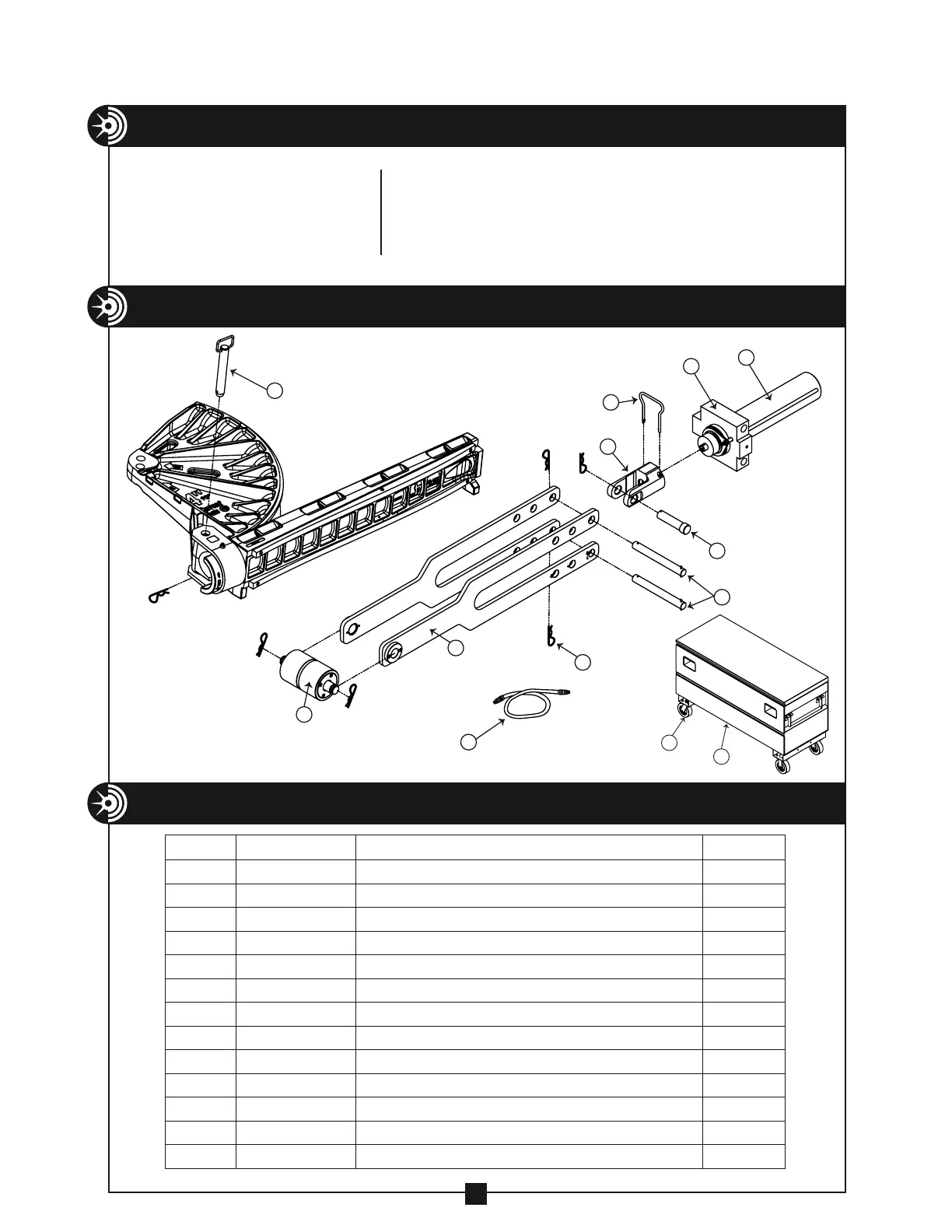

MAJOR COMPONENTS – PARTS LIST
7
5
4
3
1
2
9
8
10
6
13
11
12
NOTE: For complete shoe, follow bar
and saddle listing see page 7.
