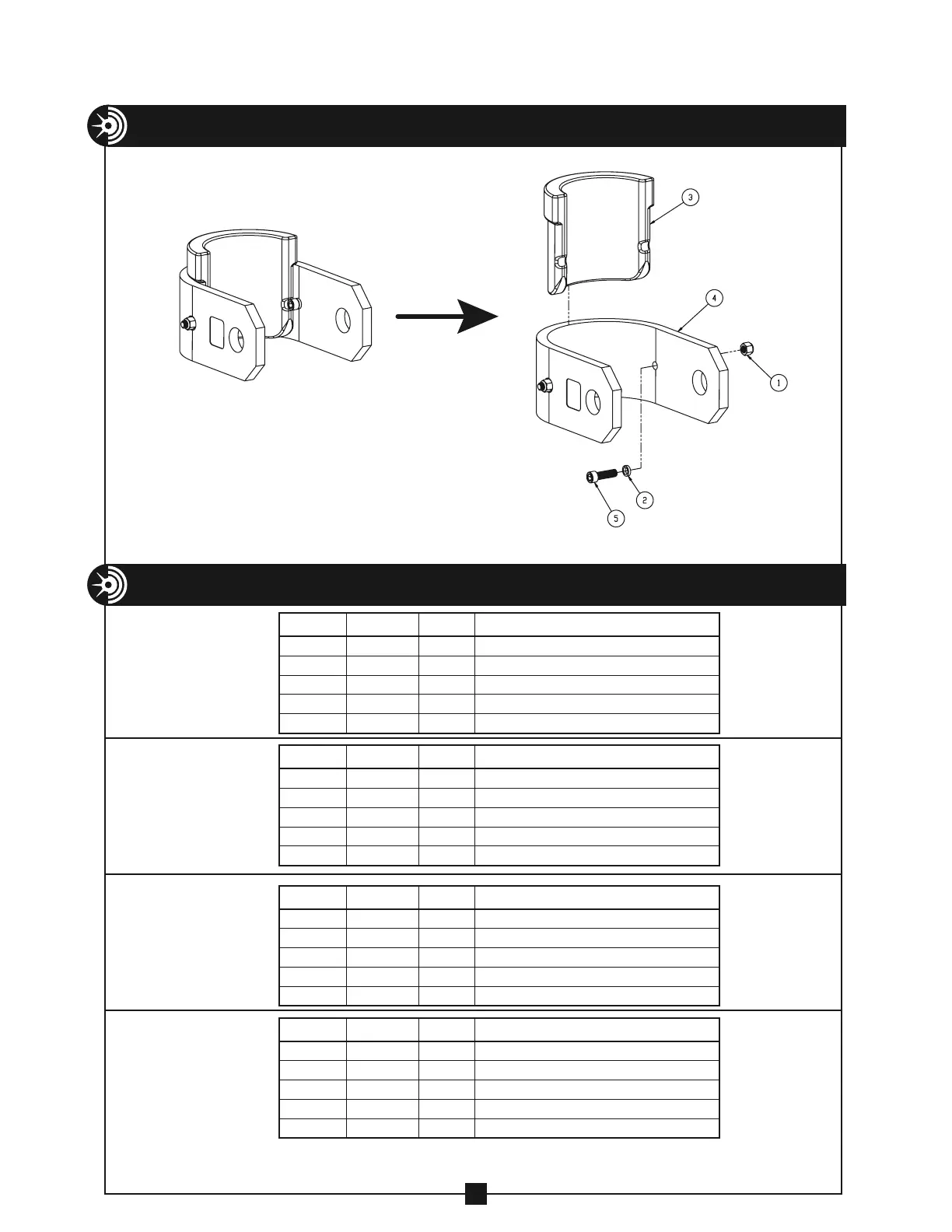

EXPLODED VIEW — SADDLES
ITEM # PART # QTY. DESCRIPTION
1
2-1501-4
2
NUT – NYLON INSERT 3/8-16
2
254-005
2
WASHER – LOCK, 3/8
3
254-122
1
INSERT – SADDLE, 3"
4
254-191
1
STRAP – SADDLE, 3"
5
99-59
2 SCREW – SKT. HD CAP, 3/8-16 × 1.25
PARTS LIST — SADDLES
ITEM # PART # QTY. DESCRIPTION
1
2-1501-4
2
NUT – NYLON INSERT 3/8-16
2
254-005
2
WASHER – LOCK, 3/8
3
254-115
1 INSERT – SADDLE, 2½"
4
254-116
1 STRAP – SADDLE, 2½"
5
99-59
2 SCREW – SKT. HD CAP, 3/8-16 × 1.25
ITEM # PART # QTY. DESCRIPTION
1
2-1501-4
2
NUT – NYLON INSERT 3/8-16
2
254-005
2
WASHER – LOCK, 3/8
3
254-136
1
INSERT – SADDLE, 4"
4
254-137
1
STRAP – SADDLE, 4"
5
99-59
2 SCREW – SKT. HD CAP, 3/8-16 × 1.25
ITEM # PART # QTY. DESCRIPTION
1
2-1501-4
2
NUT – NYLON INSERT 3/8-16
2
254-005
2
WASHER – LOCK, 3/8
3
254-129
1 INSERT – SADDLE, 3½"
4
254-130
1 STRAP – SADDLE, 3½"
5
99-59
2 SCREW – SKT. HD CAP, 3/8-16 × 1.25
2½"
3"
3½"
4"
