Current WA100-PM - Dimming Light Fixture(S), Photosensor Configuration

OFF
ON
DIP Switch Positions:
Driver:
On/Off + 0-10V
dimming
1 2 3 4 5 6
↓
O
N
Wired Sensor:
Photosensor
( #6 ON )
DIP Switches
Line Voltage
Wires
WHITE Neutral
RED Switched Load
120-277VAC
BLACK Hot 120-277VAC
GRAY Analog Ground
VIOLET 0-10V Analog Output (dimming control)
Dimming Ballast
or LED Driver
(0-10VDC)
Hot
Neutral
GRAY (-)
VIOLET (+)
Dimming Ballast
or LED Driver
(0-10VDC)
Hot
Neutral
GRAY (-)
VIOLET (+)
RED 24VDC Power Output
BLACK Digital Ground
ORANGE 0-10V Analog Input
24VDC
Photosensor
0-10V output
24V in
Common
0-10V Out
Low Voltage
Wires
Cap unused
wires.
*
*
*
0-10V Dimming output
5 mA available
Up to 10 LED drivers or fluorescent ballasts typical; the chance of low voltage errors increases with more.
Wireless Adapter with Power Monitoring
Model: WA100-PM
Input: 120-277VAC, 50/60 Hz
Load: 15A@120-277VAC Ballast or Incandescent, 1hp@120-230VAC
Output: +24VDC; 75mA
Ambient Temperature -4° to 149°F (-20° to 65°C)
FOR INDOOR USE ONLY UL 2043 Plenum Rated
Patent: www.daintree.net/company/patents
C
US
IEEE Address: 00228103007-00000
Load
White
Blue (Digital In 1)
Yellow (Digital In 2)
Orange (0-10V In)
Red (24VDC Output)
Black (Ground)
Green (Digital Out LSD)
Violet (0-10V Out)
Gray (Ground)
Relay
15A
15A+45mA
45mA
CONTAINS FCC ID: Z6G-DT357
CONTAINS IC: 10478A-DT357
CAN ICES-3 (B)/NMB-3(B)
RoHS
Wireless Adapter (WA100-PM)
This configuration allows the WA100-PM to provide automatic 0-10V dimming control and to switch light fixtures On/Off.

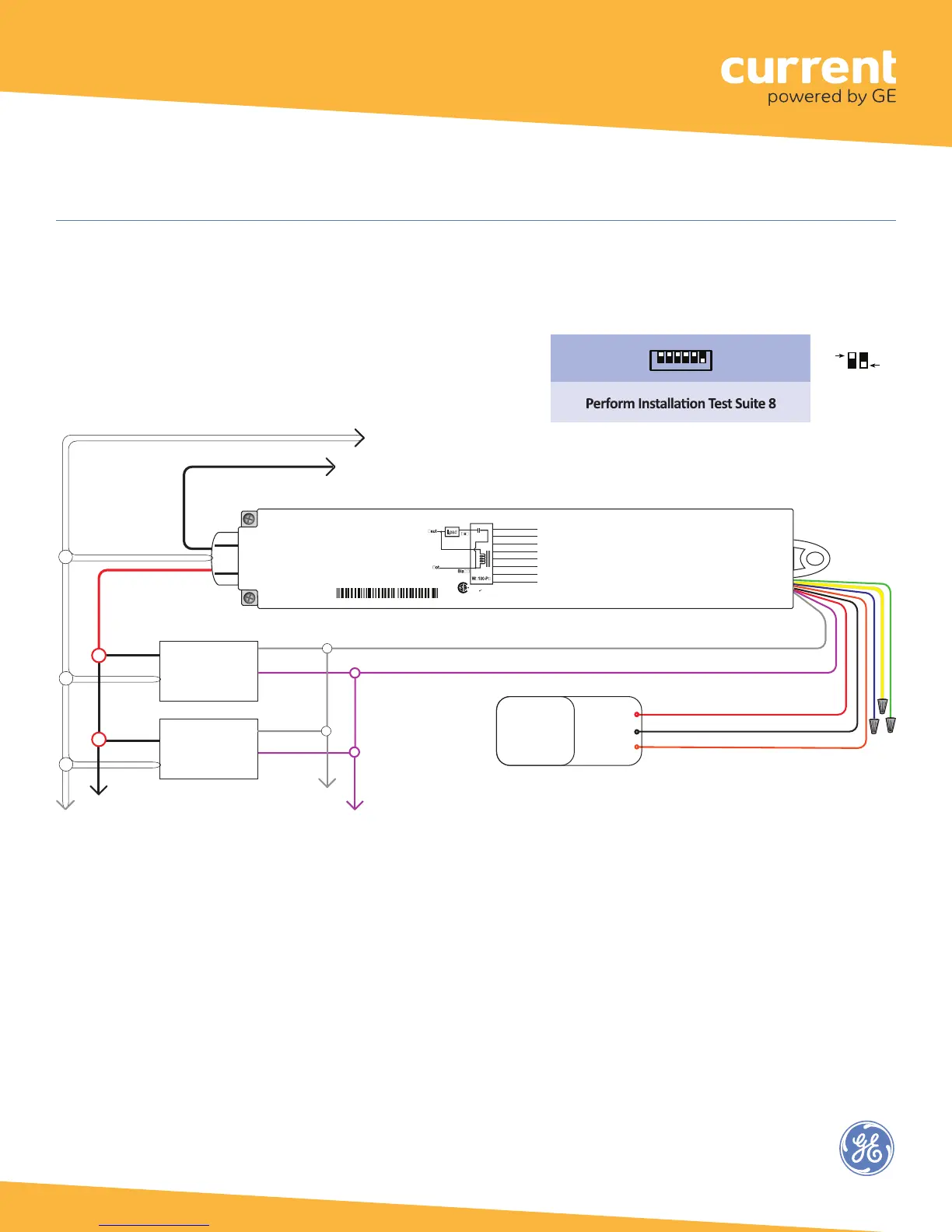

Fig. 8: Dimming Light Fixture(s), Photosensor configuration:
