Wireless Adapter (WA100-PM)
Wiring
WHITE 18AWG Neutral
Wiring
22AWG
RED 14AWG Switched Load 120-277VAC
BLACK 14AWG Hot 120-277VAC
RED 24VDC Power output
BLACK Digital Ground
GRAY Analog Ground
VIOLET 0-10V Analog output (dimming control)
ORANGE 0-10V Analog input (photosensor)
BLUE Digital input 1 (active high: occ. sensor -or- On/Dim Up for switch mode)
YELLOW Digital input 2 (active high: Off/Dim Down input for switch mode)
GREEN Digital output (On/Off for aux power pack, bi-level & alternate ballast control)
Wireless Adapter with Power Monitoring
Model: WA100-PM
Input: 120-277VAC, 50/60 Hz
Load: 15A@120-277VAC Ballast or Incandescent, 1hp@120-230VAC
Output: +24VDC; 75mA
Ambient Temperature -4° to 149°F (-20° to 65°C)
FOR INDOOR USE ONLY UL 2043 Plenum Rated
Patent: www.daintree.net/company/patents
C
US
IEEE Address: 00228103007-00000
Load
Black
Hot
Neut
Red
White
Blue (Digital In 1)
Yellow (Digital In 2)
Orange (0-10V In)
Red (24VDC Output)
Black (Ground)
Green (Digital Out LSD)
Violet (0-10V Out)
Gray (Ground)
Relay
WA100-PM
15A
15A+45mA
45mA
CONTAINS FCC ID: Z6G-DT357
CONTAINS IC: 10478A-DT357
CAN ICES-3 (B)/NMB-3(B)
RoHS
Reducing noise on low voltage (0-10V) wiring
•
• Keep signal lines separate from mains voltage lines.
• Reduce the area created by the signal lines and the GND
return (i.e., keep them close together).
• If possible twist the signal line with the GND return.

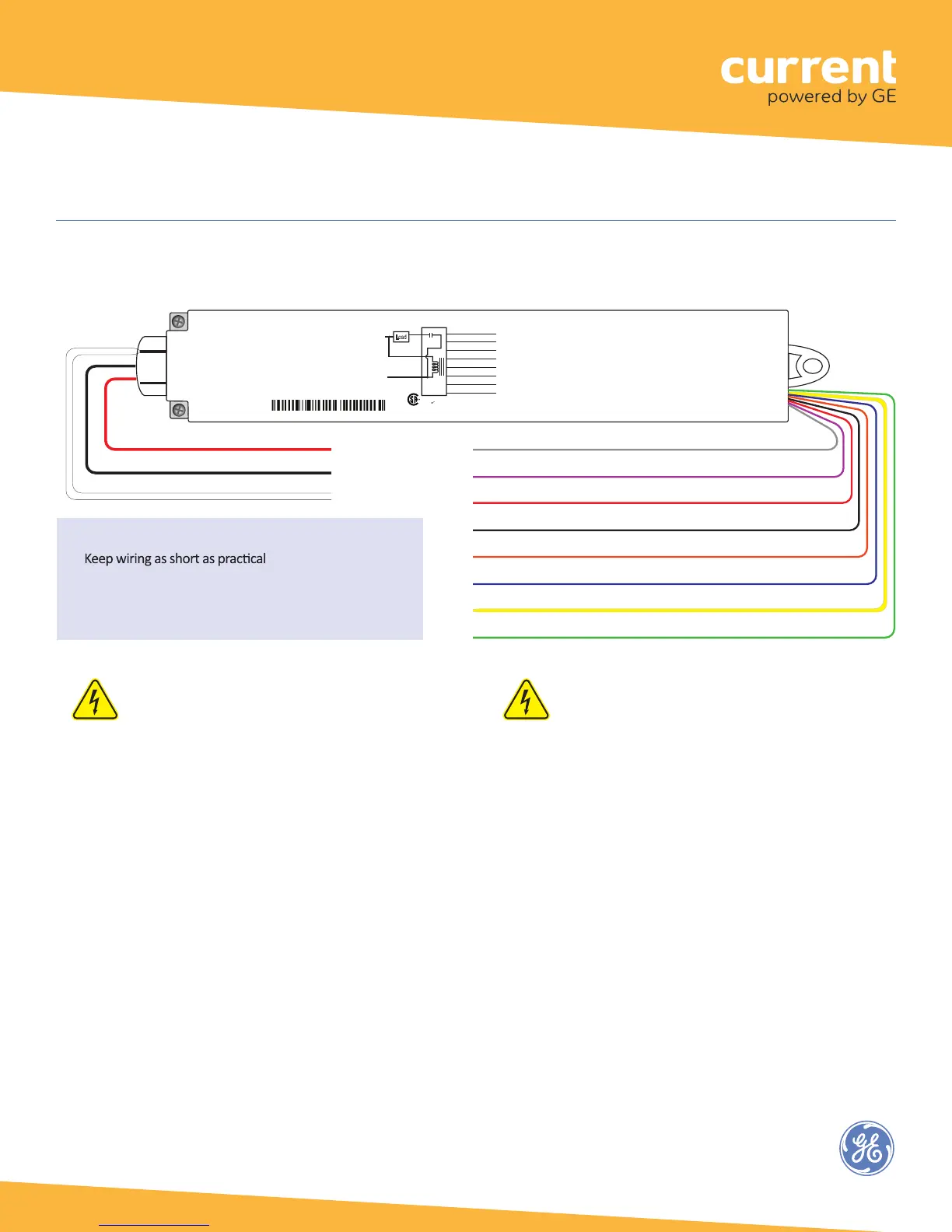

Fig. 3: Wiring Identification
CAUTION: Risk of electrical shock
• Disconnect all power before installation and during servicing. Do not open WA100-PM
enclosure; no user-serviceable parts inside.
• All installation and maintenance of line voltage equipment must be performed by a
qualified electrician.
• The WA100-PM must be installed in accordance with all local, state, and national
electrical codes and requirements.
• Wiring connectors are not supplied. UL recognized wiring connectors must be used in
the installation.
5
