Current WA100-PM - On;Off (Non-Dimming) Light Fixture(S), Occupancy Sensor Configuration

OFF
ON
DIP Switch Positions:
Driver type:
On/Off (no dimming)
1 2 3 4 5 6
↓
O
N
Wired
Sensor:
Occupancy
( #4, 5 O N )
DIP Switches
Line Voltage
Wires
WHITE Neutral
RED Switched Load
120-277VAC
BLACK Hot 120-277VAC
Hot
Neutral
Hot
Neutral
RED 24VDC Power Output
BLACK Digital Ground
24VDC
Occupancy
Sensor
24V in
Common
Control Out
BLUE Digital Input 1
Low Voltage
Wires
Cap unused
wires.
Wireless Adapter with Power Monitoring
Model: WA100-PM
Input: 120-277VAC, 50/60 Hz
Load: 15A@120-277VAC Ballast or Incandescent, 1hp@120-230VAC
Output: +24VDC; 75mA
Ambient Temperature -4° to 149°F (-20° to 65°C)
FOR INDOOR USE ONLY UL 2043 Plenum Rated
Patent: www.daintree.net/company/patents
C
US
IEEE Address: 00228103007-00000
Load
Black
Hot
Neut
Red
White
Blue (Digital In 1)
Yellow (Digital In 2)
Orange (0-10V In)
Red (24VDC Output)
Black (Ground)
Green (Digital Out LSD)
Violet (0-10V Out)
Gray (Ground)
Relay
WA100-PM
15A
15A+45mA
45mA
CONTAINS FCC ID: Z6G-DT357
CONTAINS IC: 10478A-DT357
CAN ICES-3 (B)/NMB-3(B)
RoHS
ON/OFF
Light
Fixture
ON/OFF
Light
Fixture
Wireless Adapter (WA100-PM)
This configuration allows the WA100-PM to provide automatic On/Off switching based on occupancy.
Set occupancy sensor for minimum time delay.

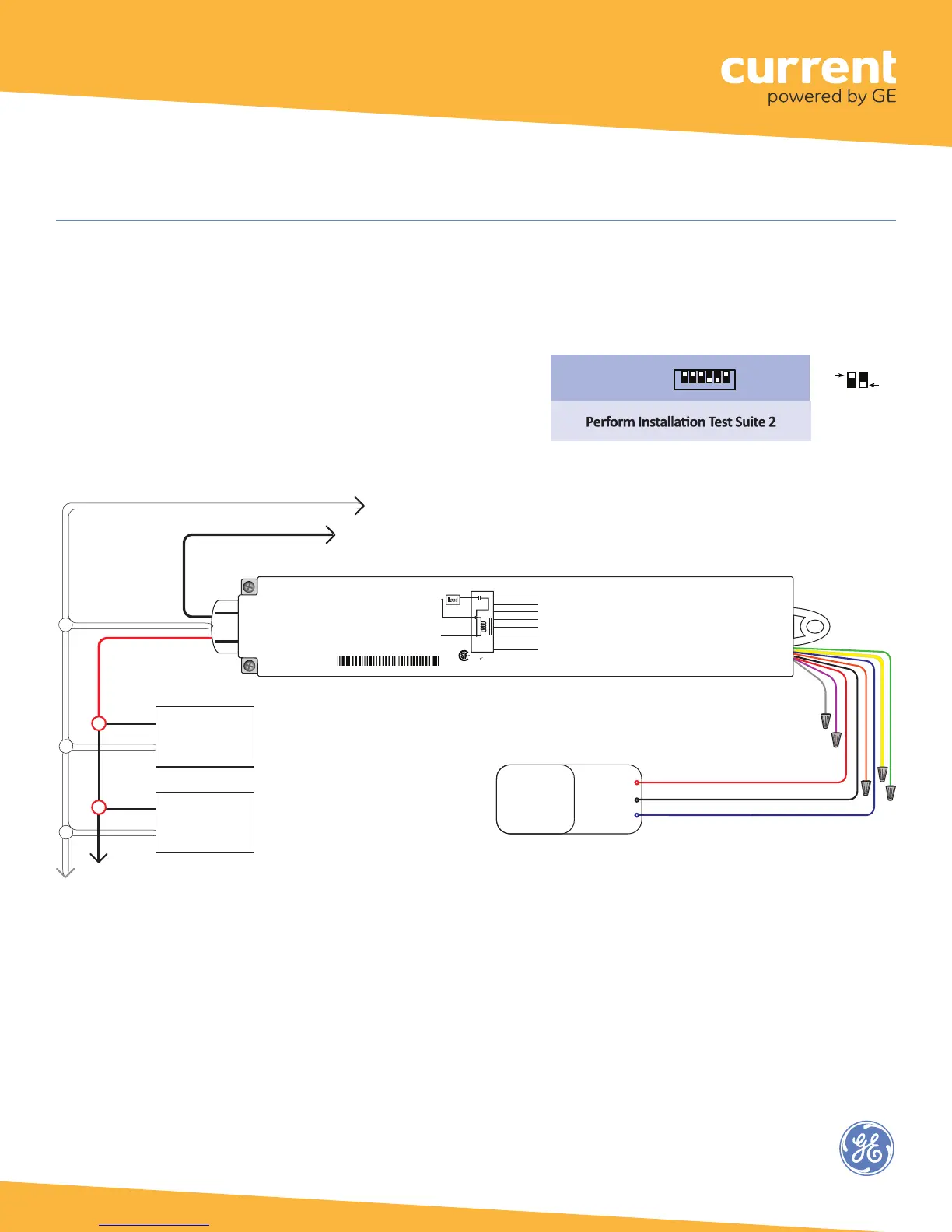

Fig. 6: On/Off (non-dimming) Light Fixture(s), Occupancy Sensor configuration:
