Current WA100-PM - Bi-Level Switching

Wireless Adapter (WA100-PM)
OFF
ON
DIP Switch Positions:
Driver:
Bi-Level
1 2 3 4 5 6
↓
O
N
(# 3 , 4 ON)
DIP Switches
Wired Sensor:
None
Line Voltage
Wires
WHITE Neutral
RED Switched Load 120-277VAC
BLACK Hot 120-277VAC
Bi-Level
Driver/Ballast
(or 2 driver/ballasts)
Hot
Neutral
RED 24VDC Power
Aux.
Relay
+24VDC
GND
GREEN Digital Ouptut LSD
Switched Hot
Low Voltage
Wires
Cap unused
wires.
Wireless Adapter with Power Monitoring
Model: WA100-PM
Input: 120-277VAC, 50/60 Hz
Load: 15A@120-277VAC Ballast or Incandescent, 1hp@120-230VAC
Output: +24VDC; 75mA
Ambient Temperature -4° to 149°F (-20° to 65°C)
FOR INDOOR USE ONLY UL 2043 Plenum Rated
Patent: www.daintree.net/company/patents
C
US
IEEE Address: 00228103007-00000
Load
Red
Blue (Digital In 1)
Yellow (Digital In 2)
Orange (0-10V In)
Red (24VDC Output)
Black (Ground)
Green (Digital Out LSD)
Violet (0-10V Out)
Gray (Ground)
Relay
WA
15A
15A+45mA
45mA
CONTAINS FCC ID: Z6G-DT357
CONTAINS IC: 10478A-DT357
CAN ICES-3 (B)/NMB-3(B)
RoHS
Bi-Level Switching States
Intensity Level WA100 Switched Aux Relay
Off (0%) Off Off
Medium (1-99%) On Off
Maximum (100%) On On
This configuration allows the WA100-PM to switch loads independently in a bi-level driver (or 2 drivers), providing no
load (0%), partial load (according to the driver/ballast capability) or full load (100%).

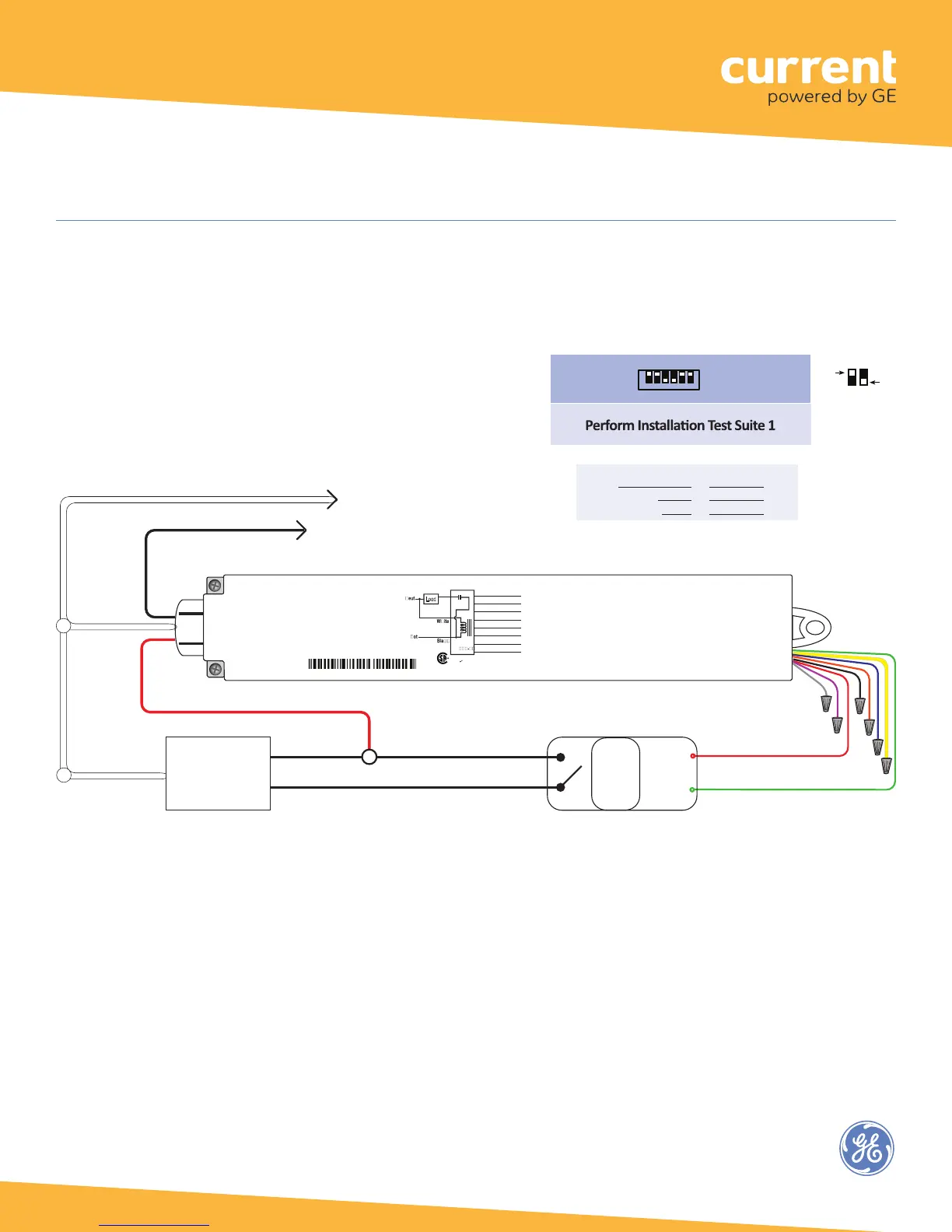

Fig. 11: Bi-level Switching:
13
