PAGE 4
Mounting the Brake Control Module
NOTE: Avoid mounting the brake control module near a CB radio or other RF transmitter.
1. Determine a suitable mounting location.
Mount the unit securely to a solid surface where it is easily accessible to the driver.
The area behind the mounting location must be clear to prevent damage while drilling.

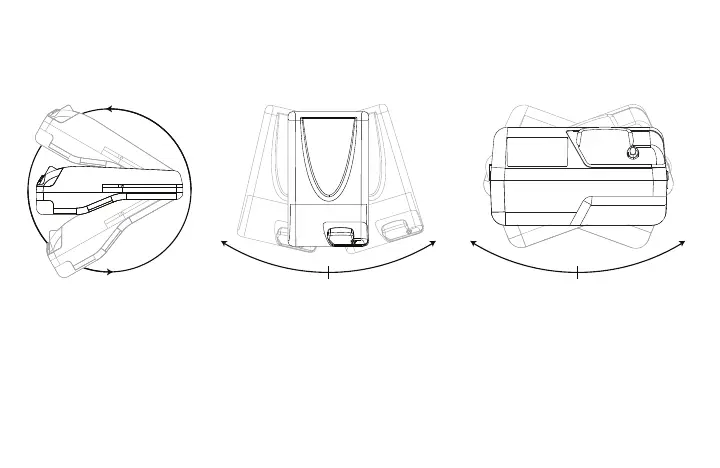

The module can be mounted above or below the dash at any angle vertically,
but must stay within 20° horizontally (see Figures 1, 2 and 3).
Figure 1 Figure 2
20° 20° 20° 20°
Figure 3
