Curt Manufacturing REFLEX - Secure the mounting bracket

PAGE 5
3. Hold the bracket in place and mark two screw locations.
Using a 1/8" diameter bit, drill holes in the marked locations.
4. With a philips screwdriver, secure the bracket in place using the two
screws provided. Be careful not to strip the holes by over-tightening.
5. If using tape, make sure both surfaces are at least 68°; warm them, if needed using
vehicle heater or a heat gun. Clean the mounting location and bracket with the surface
prep wipe provided.
  Peeladhesivelinerfromonesideofthefoamtapeandstickthetapesecurelyontothe
bracket's surface. Make sure the front of the bracket is facing the driver, see Figure 4.
  Peeltheotherlinerandpressthebracketrmlyintoplace.
6. Line up the slots in the side of the module with the bracket arms,
slide the unit into the front of the bracket until it snaps into place.

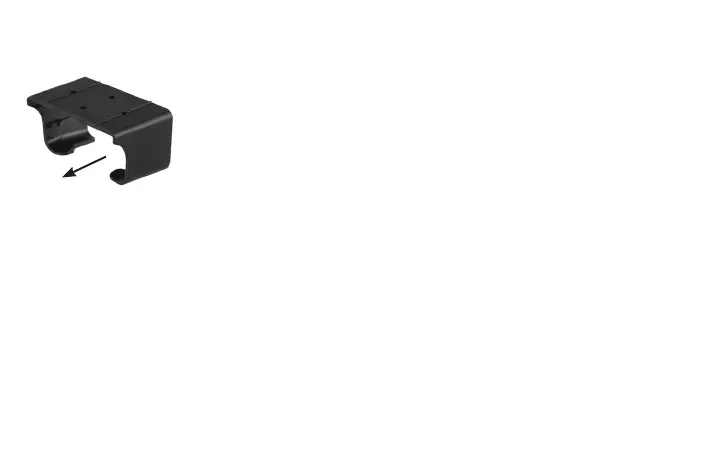

Figure 4
2. The mounting bracket can be secured with the screws or foam tape provided.
NOTE: The front of the bracket must face the driver. See Figure 4.
