curt 18087 User Manual

Step 2

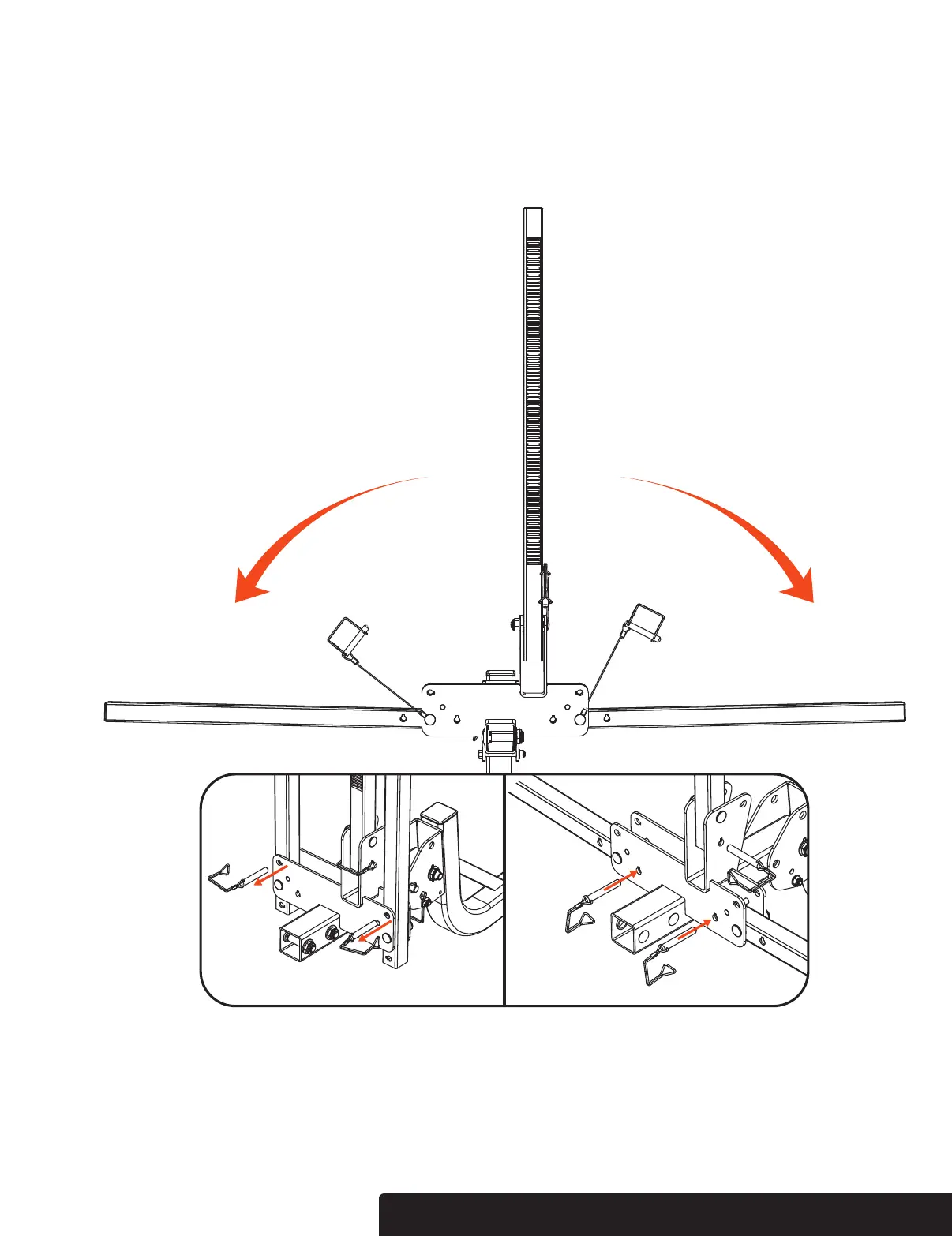

Remove the outer arm pins & clips from main body rack (#1). See Figure 2, Detail D. Drop the side arms
down to until they lay flat, see Figure 2. Re-insert the security pins & clips to secure in place, see Detail E.
ASSEMBLY
Figure 2
Detail D Detail E
PAGE 3 • 18087-INS-RD • 1.800.798.0813 • NEED ASSISTANCE? • CURTMFG.COM
