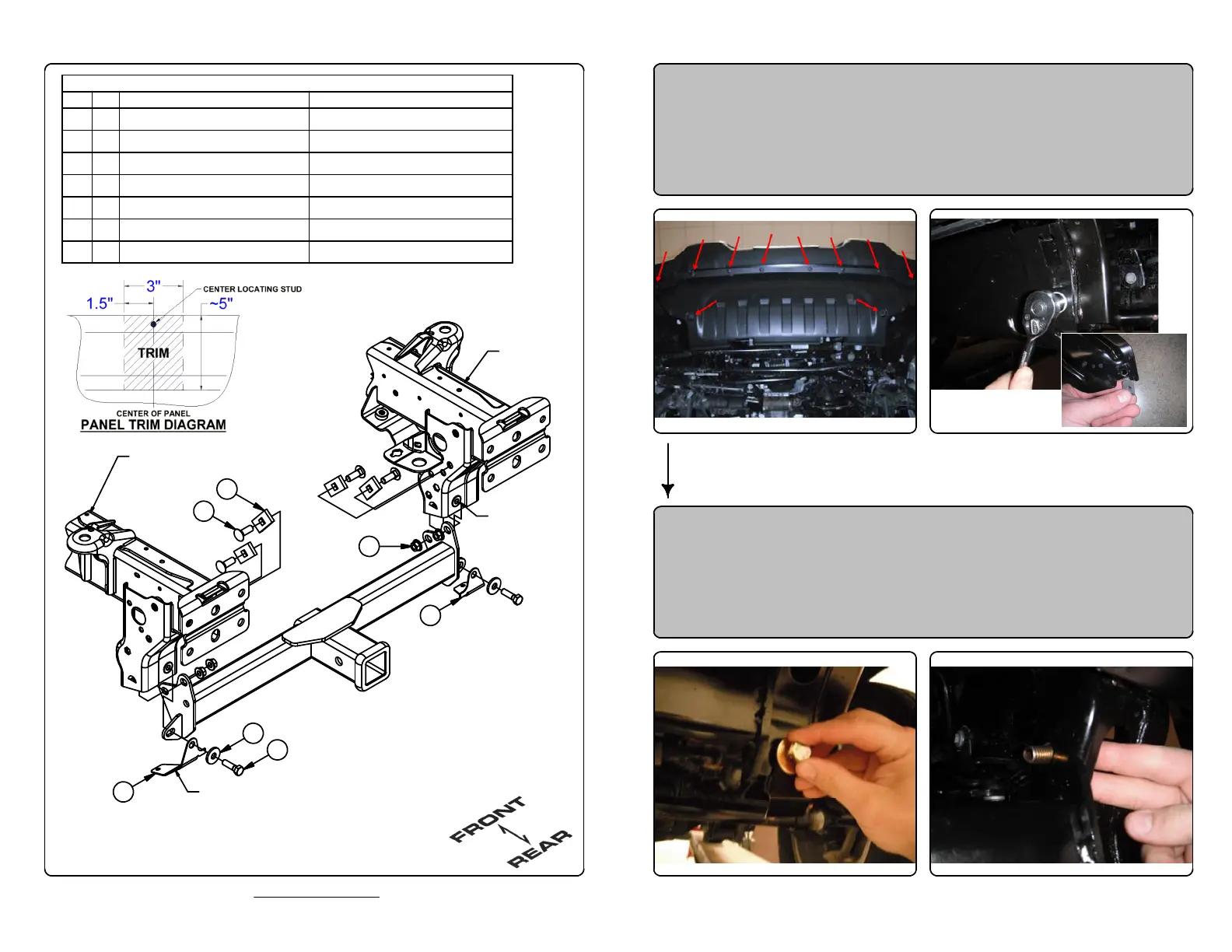

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
DRIVER SIDE FACIA TAB31086-DSFT
11
PASSENGER SIDE FACIA TAB31086-PSFT12
CARRIAGE BOLT7_16 - 14 x 1 1_4 CARRIAGE (GRADE 8)
43
.250 x 1.00 x 2.00" SQUARE HOLE SPACERCM-SP744
HEX FLANGE NUT7/16-144
5
HEX TAP BOLT
M10 - 1.5 x 35mm26
CONICAL TOOTHED WASHER7/16"27
DRIVER SIDE
FRAME RAIL
PASSENGER SIDE
FRAME RAIL
EXISTING FRAME
WELDNUT
(BOTH SIDES)
INSTALL SHIELD CLIP NUTS
HERE TO REATTACH LOWER
PLASTIC FASCIA
2
7
6
1
4
3
5
1) Remove 8 plastic push fasteners from the upper edge of the
lower front fascia. Using an 8mm socket, remove the (2)
5mm screws holding the lower edge of the plastic fascia.
Using a 16mm socket, remove the (2) 10mm bolts holding
the steel shield. Return bolts and shield to vehicle owner,
but keep the (2) clip nuts for later reinstallation.
2) Raise hitch into position and loosely install the supplied
fascia tabs, 10mm bolts and conical washers as shown
above. Install the (4) 7/16" carriage bolts and spacers into
the remaining mounting holes as shown above by inserting
through the closest access hole.
