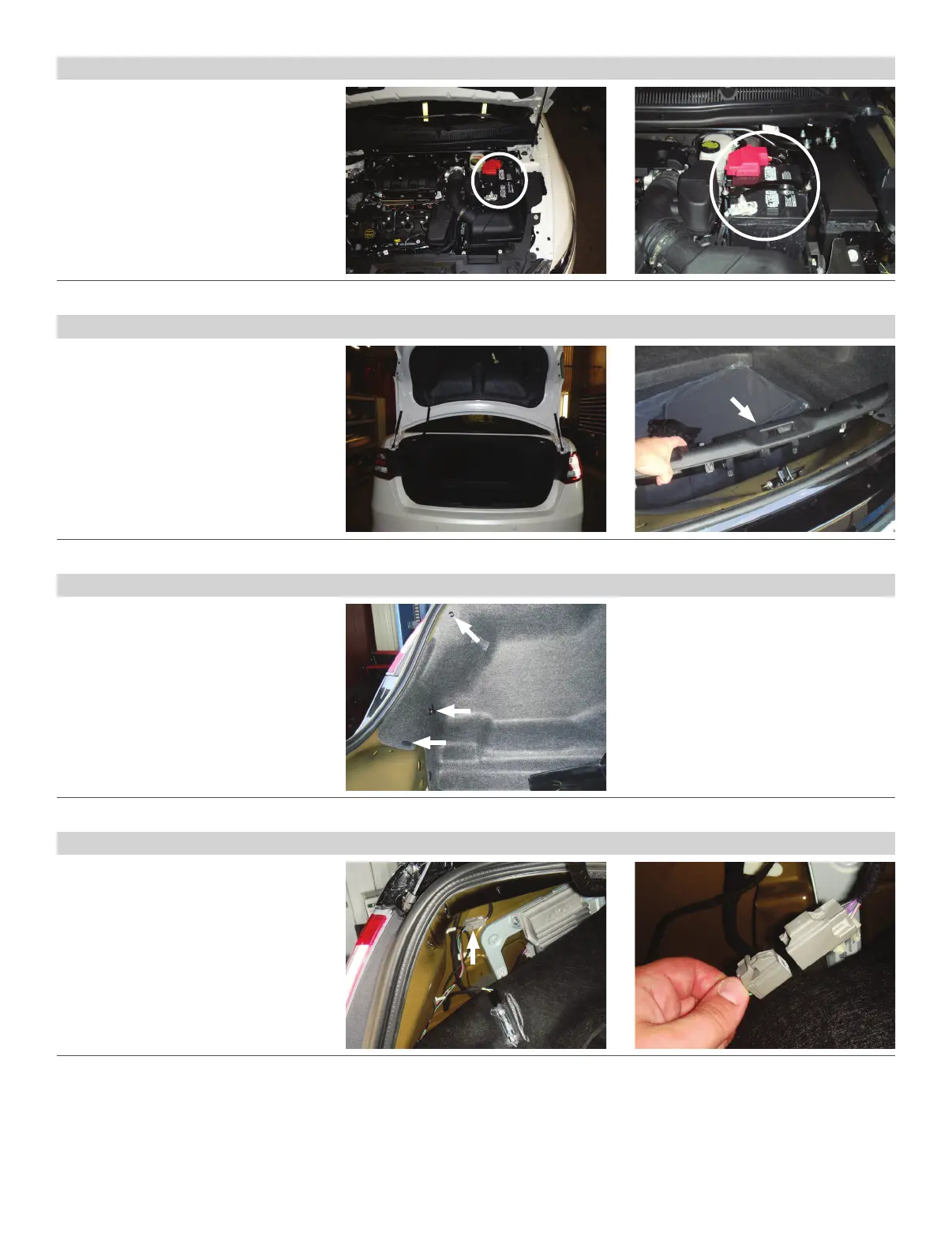

Step 1A: Taurus
Locate the vehicle's battery in the engine
compartment on the driver side and disconnect
the negative battery terminal. Be sure to fasten
this wire down and away from the battery while
completing the installation process.
Step 3A: Taurus
On both sides of the vehicle, use a
panel trim removal tool to remove the three
plastic fasteners securing the felt trunk liner.
Step 4A: Taurus
Starting on the driver side, pull back
on the felt liner to locate the vehicle
taillight wiring harness connectors.
The connectors will be similar to those
on the custom wiring harness. Separate
the connectors from the taillight housing
taking care not to damage the locking tabs.
Insert the custom wiring end with
yellow wire between the separated
connectors. Make sure the connectors
are fully inserted with locking tabs in place.
Step 2A: Taurus
Open the vehicle tailgate and remove the
floor coverings to expose the spare tire.
Use a panel trim removal tool to remove
the scuff panel by pulling out on the bottom
and then up. Take care not to damage
the alignment tabs on the back.
