11. Plug the two wire- four pin walk-away
harness connector to the two wire- four pin
conversion harness connector then re-install
solenoid cover using original hardware.

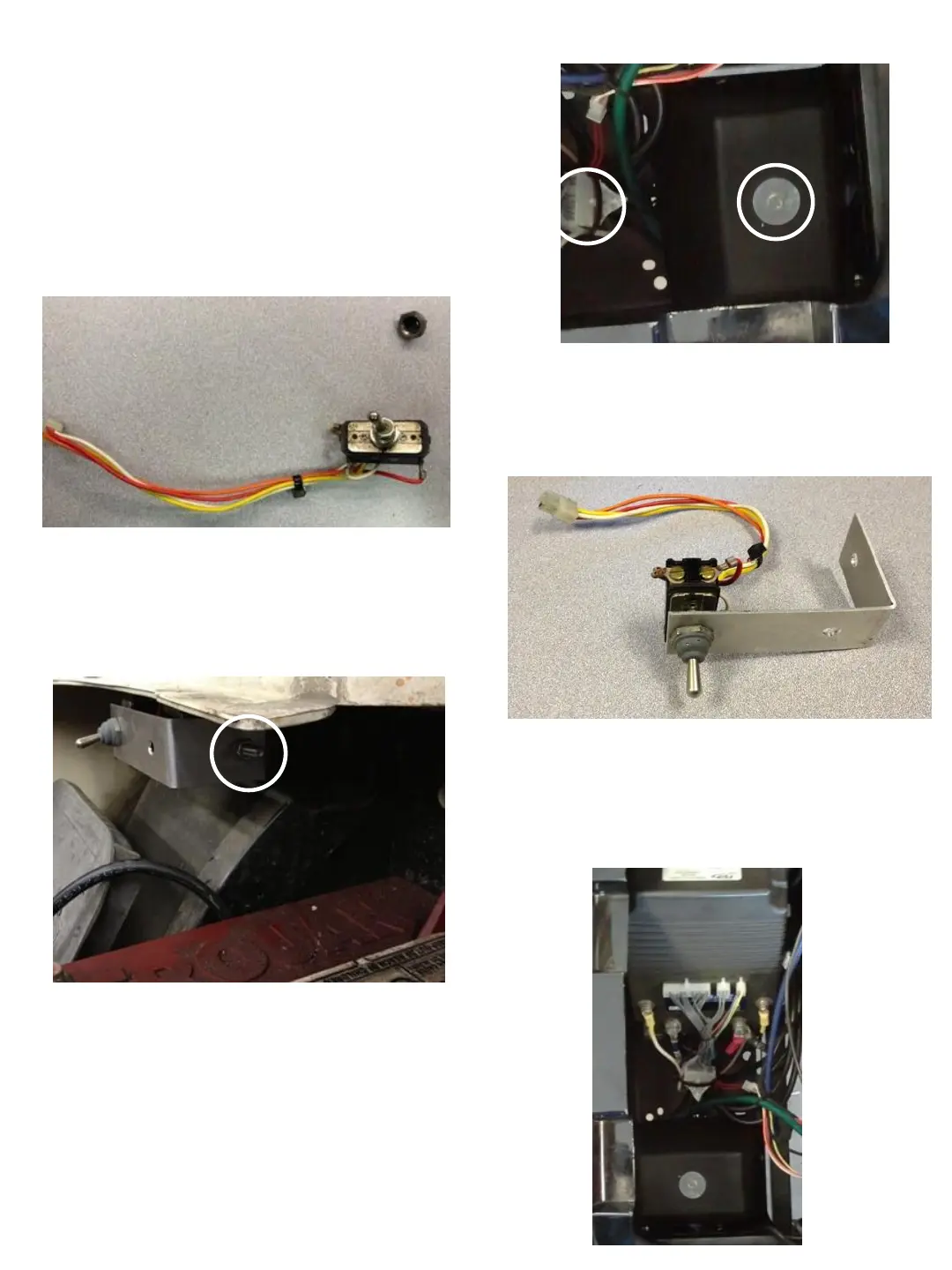

12. Remove the tow/run switch from the
original controllers environmental cover.
13. Re-install the tow/run switch in the new
mount provided using the original hardware.
14. Mount the new tow/run switch mounting
plate using an open hole in the vehicle frame
right above the new controller using the
included M6x25mm bolt, washer, lock washer,
and nut.
13. Re-connect the four pin plug of the
tow/run switch to the four pin plug on the
original vehicle wiring harness (two red wires.)
At this point the installation is complete, use
any remaining wire ties to secure wiring and
reconnect the four wires taken off the battery
in step one.
62-EZHB-AO WORK INSTRUCTIONS REV. 02 9/14/2018
