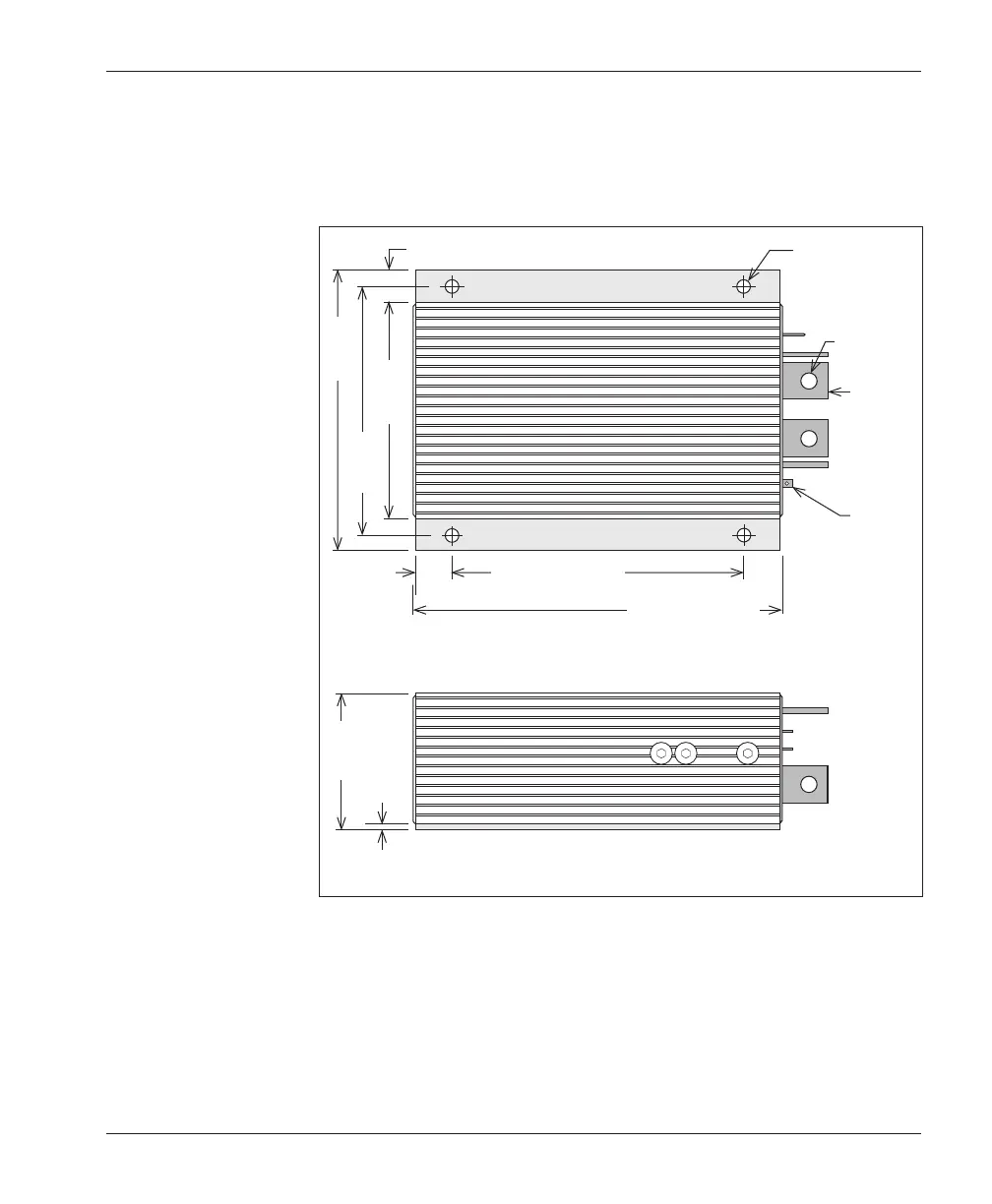

Fig. 3 Mounting
dimensions, Curtis PMC
1209/21 controllers.
HARDWARE INSTALLATION
6 (0.25)
male push-on,
2 plcs
7 (0.28) dia.
15 (0.60)
MODEL 1209: 231 (9.1)
MODEL 1221: 282 (11.1)
3.3
(0.13)
80 (3.15)
37 (1.45)
Dimensions in millimeters and (inches)
MODEL 1209: 152 (6.0)
MODEL 1221: 203 (8.0)
180 (7.1)
165 (6.5)
143 (5.6)
8.4 (0.33) dia.
25
× 19 × 5
(1.0
× 0.75 × 0.187)
Be sure to mount the controller so as to allow access to the adjustment
screws.
Although not usually necessary, a thermal joint compound can be used to
improve heat conduction from the case to the mounting surface.
