HARDWARE INSTALLATION
HARDWARE INSTALLATION
CONTROLLER
The controller can be oriented in any position, but the location should be
carefully chosen to keep the controller as clean and dry as possible. If a clean,
dry mounting location cannot be found, a cover must be used to deflect dirt
and water splash.
The controller should be fastened with four screws to a clean, flat metal
surface that provides an adequate heat sink. The mounting surface is an integral
part of the overall heatsinking of the controller, and affects its ability to dissipate
heat. The case outline and dimensions are shown in Figure 2 (1204X and1205X
controllers) and in Figure 3 (1209 and1221 controllers).

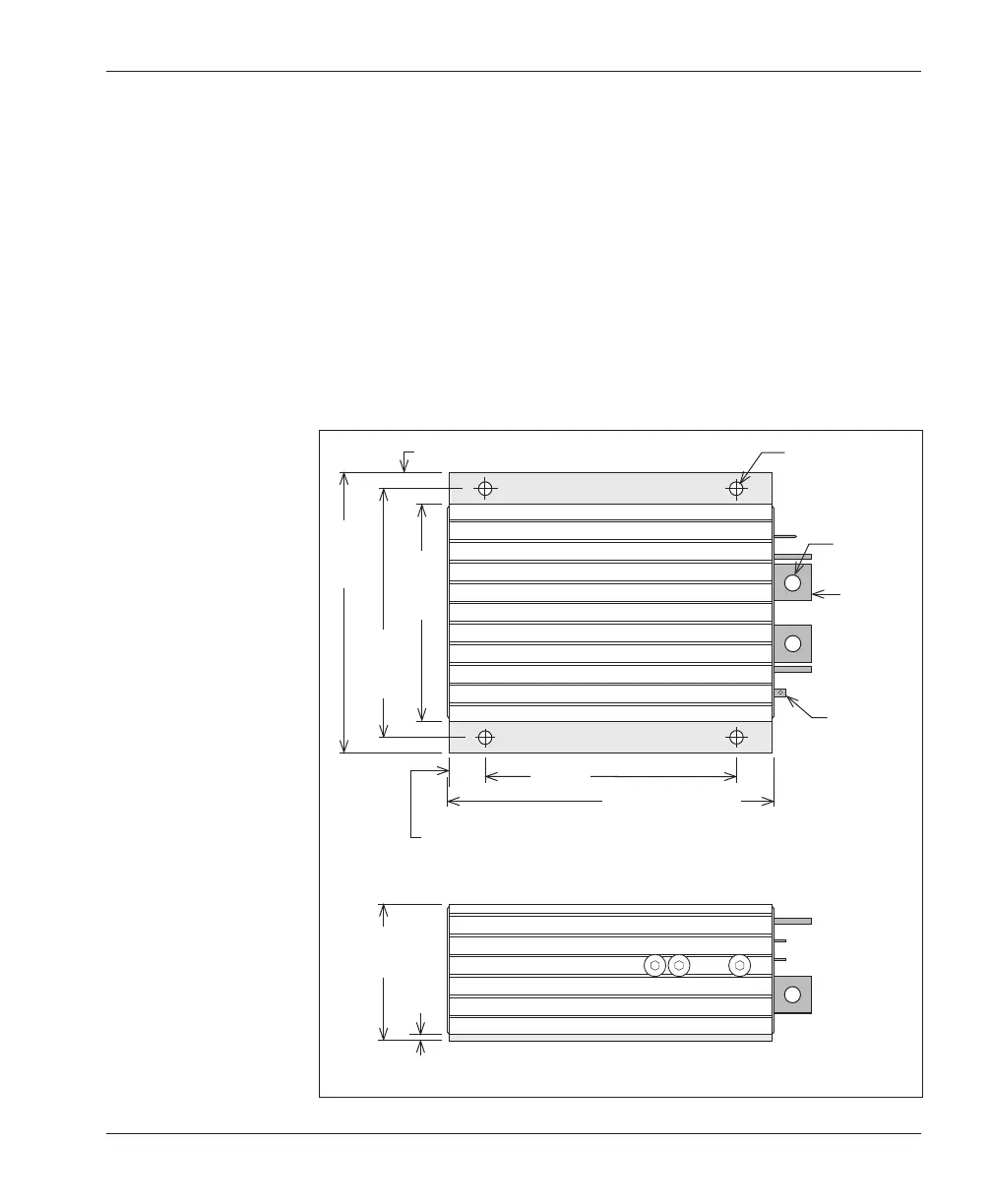

Fig. 2 Mounting
dimensions, Curtis PMC
1204X/5X controllers.
3.3
(0.13)
70 (2.8)
133 (5.25)
MODEL 1204X: 174 (6.85)
MODEL 1205X: 225 (8.85)
113 (4.45)
130 (5.13)
146 (5.75)
16.5 (0.65)
1204X: 19 (0.75)
1205X: 44 (1.75)
7 (0.28) dia.
8 (0.33) dia.
22
× 19 × 3
(0.85
× 0.75 × 0.125)
6 (0.25)
male push-on,
2 plcs
Dimensions in millimeters and (inches)
