CUTES CT-2000ES - Page 26

26
§ Cd46 Speed multiplier (Settable range 0.01~500)
The function shows revolution speed multiplied by a scaling factor on the Display.
Note: 1. HZ and A LED de-active.
2. RPM = Frequency × Cd46
3. If the value overflow, it will show “9999”.
§ Cd47 Relay 1 output select (Settable range 0~6)
The function sets the mode of relay1 to activate.
Cd47
Specification Remark
0
Time counter Time reached to the content of Cd29
1
Fault
2
Stop
3
Acceleration
4
Speed reached
5
Deceleration
6
Speed pass over
Revolution frequency ＞ content of Cd45
7 Current pass over
Current percentage ＞ content of Cd48

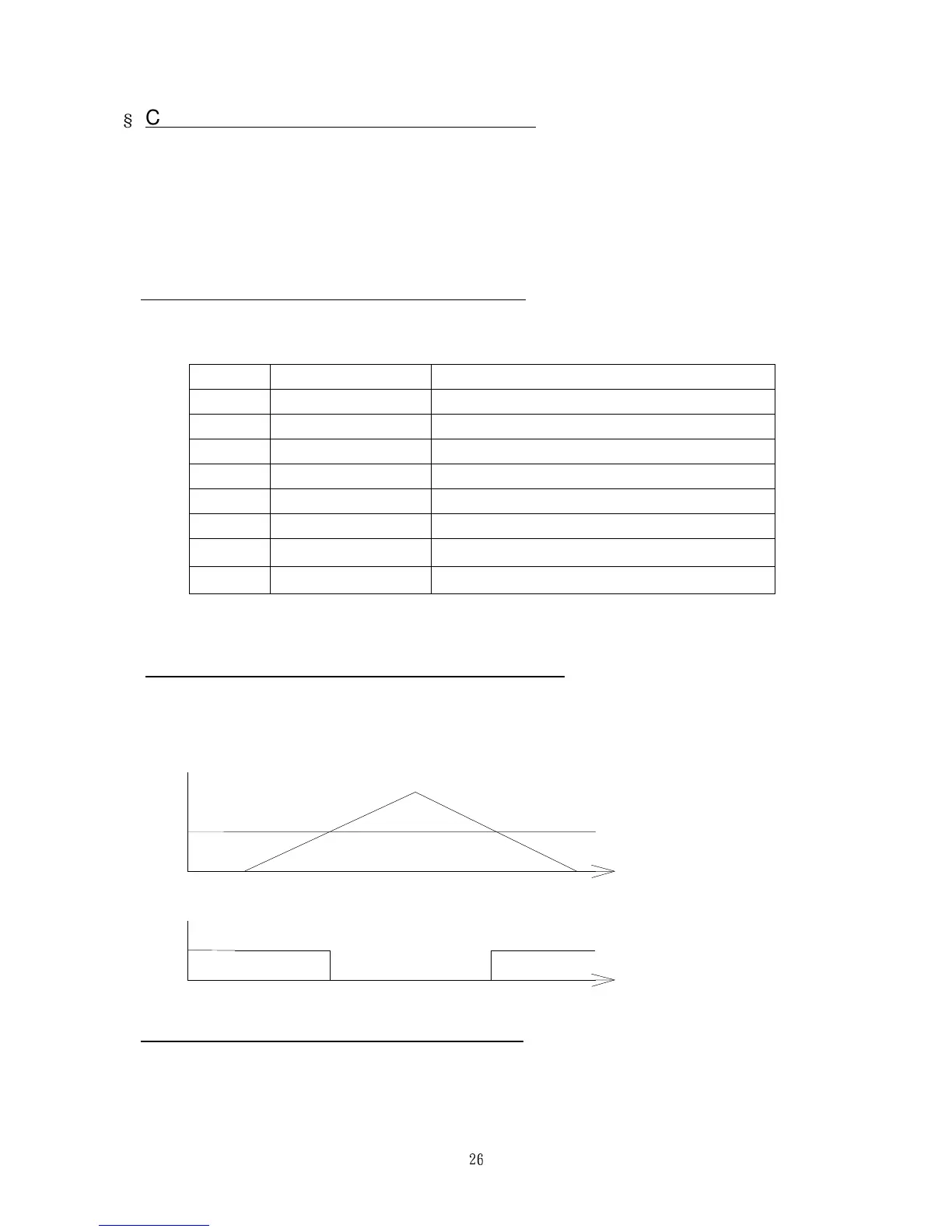

§ Cd48 Detect current level （ Settable range 40~150 ）
The function is RELAY output terminal function selection Cd47=7, Cd48 allocate motion
calibration, Cd59 set reset.
§ Cd49 Function to lock data (Settable range 0, 1)
To lock data, prevent errors by none operator.
Cd49=0 Data change capable
Cd49=1 Data change not capable
I
CD48
No
-
Nc
OPEN
CLOSE
Time
Time
I OUTPUT
CD48
-
