CUTTERMASTER Professional CM-01P
User
’
s Manual
Page 30

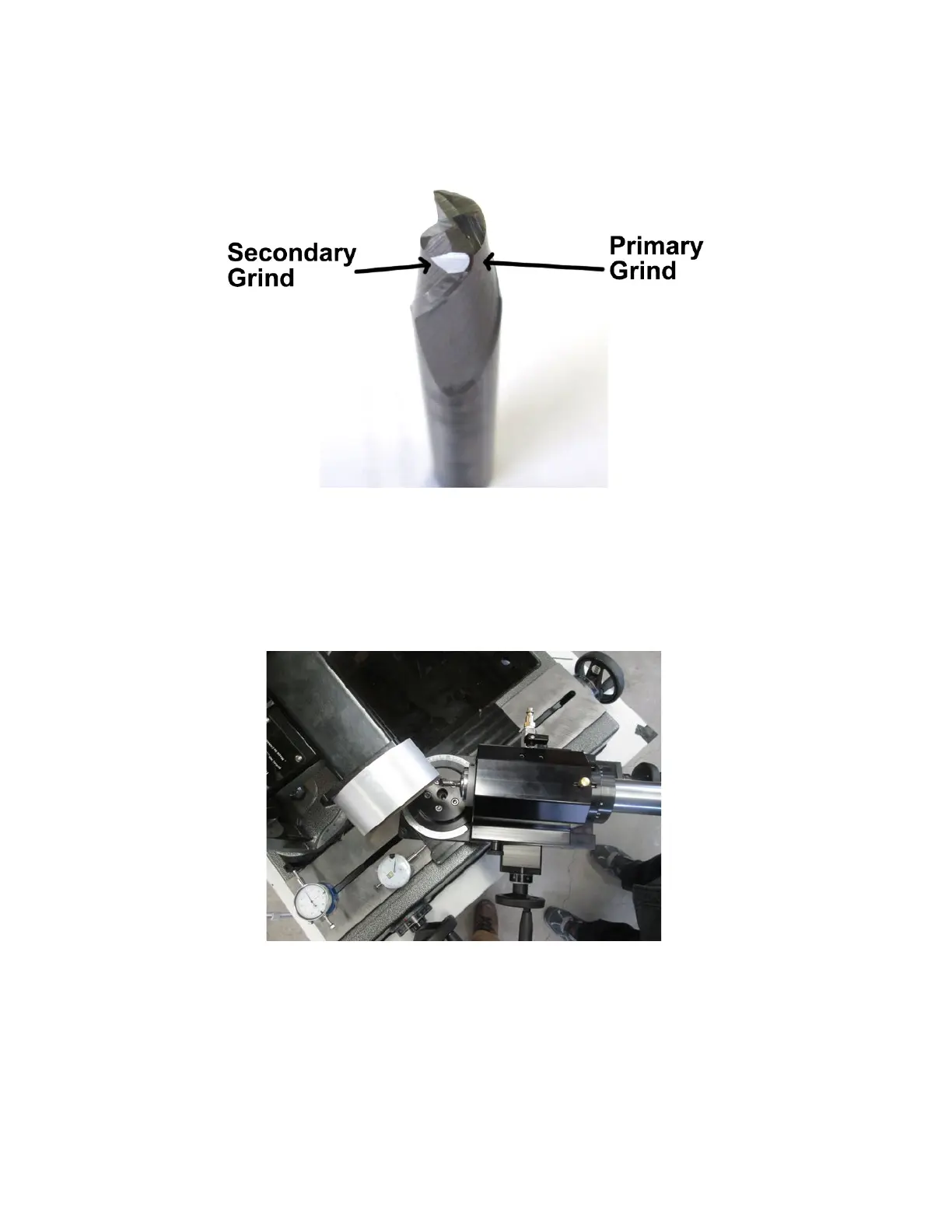

Figure 22. Radius Clearan
ce Angle
T
o grind a clearance angle behind your primary radius, swing the T
ool spindle to 45° and rotate the
indexing collar away one slot (15°). Feed in using the main T
ool spindle x axis past the wheel to get
the clearance you like.
Figure 23. Set U
p for Radius Clearance G
rinding
29
31
