Grinding the Corner Radius
Run the grinder at a moderate speed with the wheel turning down into the tool. Use only the upper
toolspindlex-axiscarriagetofeed.Youmayndthatthemachineworksbestusingacounterclock-
wisepivotasaroughingpassandaclockwisepivotforthenishingpass.
Once you’re set up, procedure steps:
(always do a test swing with the motor off thru the full radius not touching the wheel)
1. Assuming the tool is tight and in position
2. For roughing passed set motor at a medium RPM 1500 ish
 3.AssuminganaccuratesetupLockToolspindlegibstakeyourrstcut
4. feed in with the uopper X in progressive step until the desired radius is achieved
5. Cycle thru each corner a full 90 degree swing using the elevator handle to lift the motor
 6.Grindyournishingpasswithahighermotorrpm
 7.Repeatfortheremainingutes.
Produce the radius, measure it, make the appropriate adjustment to the tool spindle carriage until
satisedwiththetoolgeometry.

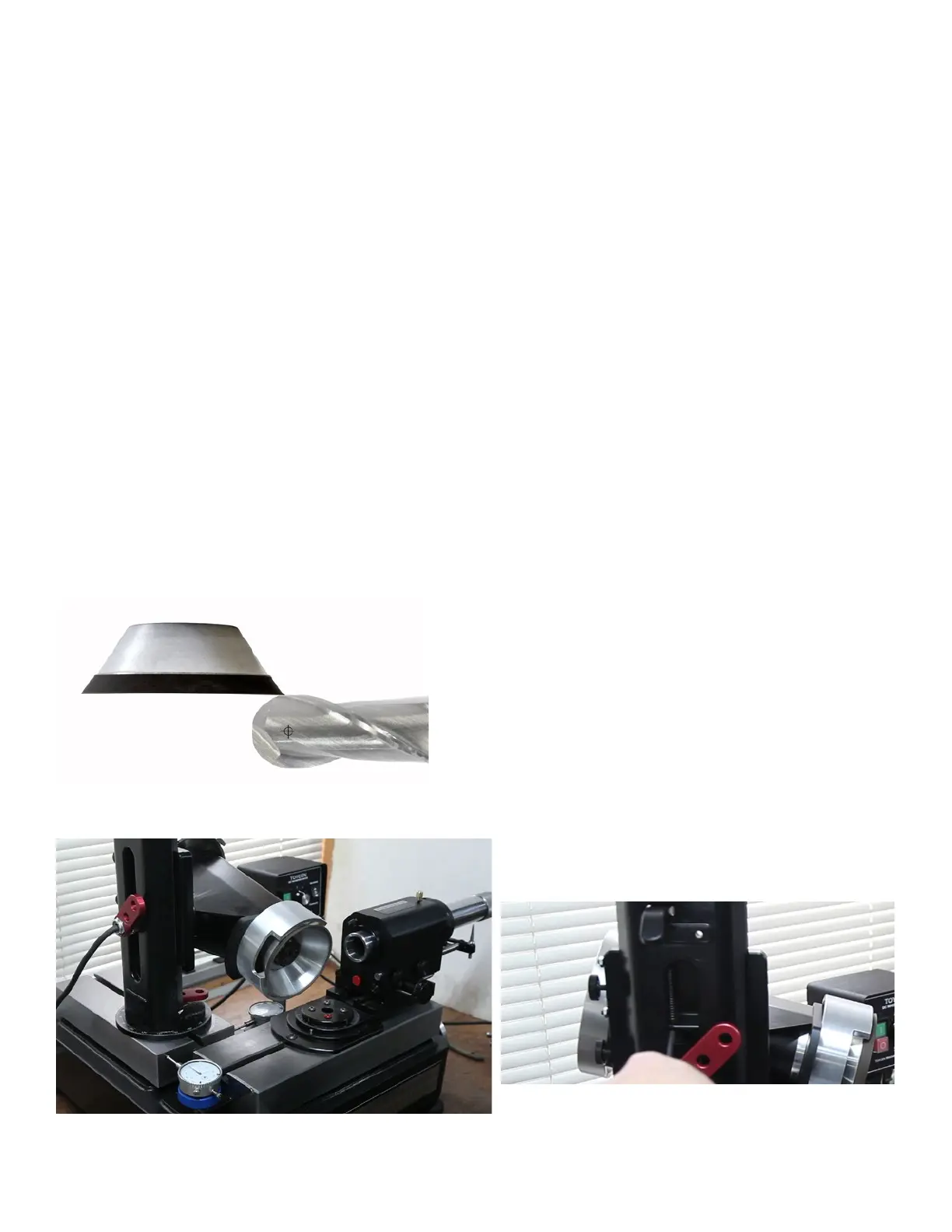

3.9 Ball Nose Set Up
Tip to remember: the pivot point of the radius spindle is the center of the arc on the ball nose. In this
case we are bringing the wheel to the tool.
Ball nose: bring the wheel to the tool
Set up your CUTTERMASTER Professional like in
thegurewithmagneticdialindicatorsinplaceto
keep track of both the x and y tables.
Tool Rest: The tool rest is not needed. Park the
tool rest by removing it and installing it from the oth-
er end. This keeps the hole free from dust and can
be used as a handle for when grinding the radius
instead of holding the tube.
Backlash Compensator for z-axis indexing.
If you nd that there is any drift in the dial at
the top of the tower
Adjust backlash compensator if z dial dri is noticed.
