17/38
Sept.
2014
V3.1

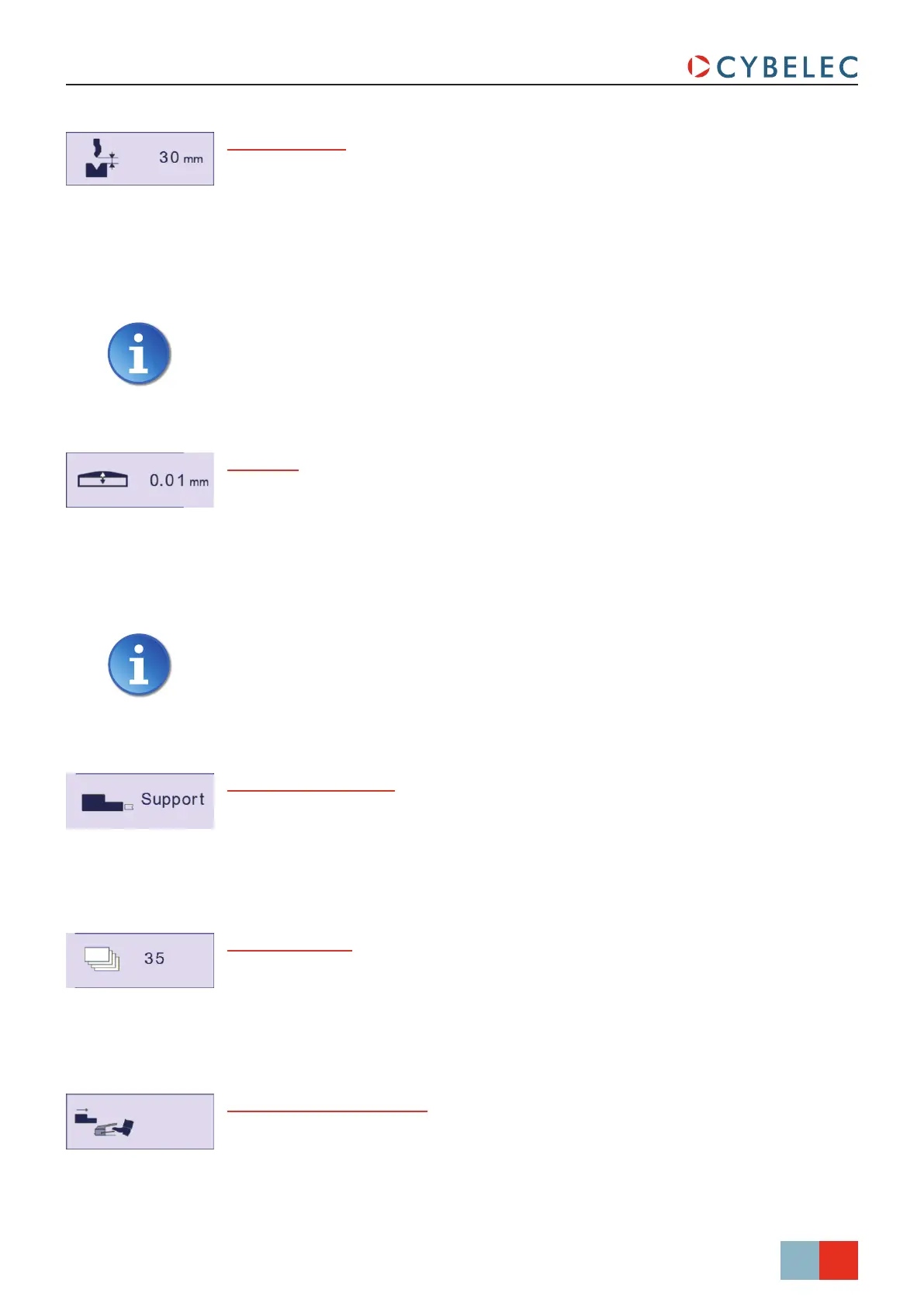

CybTouch 12 PS User Manual
Number of parts
The operator can enter here the total amount of parts to be produced. Every time all
the sequences of the program are executed, hence a part is completed, this counter is
decreased of one unit. When the amount of parts is reached, a yellow pop-up window
signals it to the operator.
Back gauge manual control
Activating this parameter gives manual control over the back gauge movement. This
means the operator must personally give the start to the back gauge movement, using for
example the foot switch or the start button.
Opening (TDC)
For parts created with a profile (see TouchProfile Mode or L-Alpha Mode), this value is
automatically calculated to allow the operator enough room to extract its bent part from
between the tools. It is however possible to change it manually.
For part created manually (see Numerical Mode), this parameter uses the default
minimum value defined in the machine parameters. It can however be programmed here.
Creating a “New part” reinitializes it to its default value.
Crowning
The crowning function is activated here. It is automatically calculated, according to
the Material, the Material thickness, the Material sigma and the Bending length. If the
crowning needs correction, use the Crowning (see page 29) function in the correction
page.
The value can be manually changed by operator. It will however be automatically
recalculated if any of the values used for its calculation is changed.
Back gauge finger type
The back gauge dimensions are defined in the machine parameters. This function allows
browsing through the available support and stop positions of the back gauge. This
function may be available, or not, according to the machine configuration.
When the crowning function is deactivated (gray icon), the crowning system
physically remains to its last position and does not automatically return to
0.0 mm. Keep that in mind when using this function – or not – between one
sequence and the following.
When this field is deactivated (grayed), the beam moves back all the way up to
its maximum limit switch.
