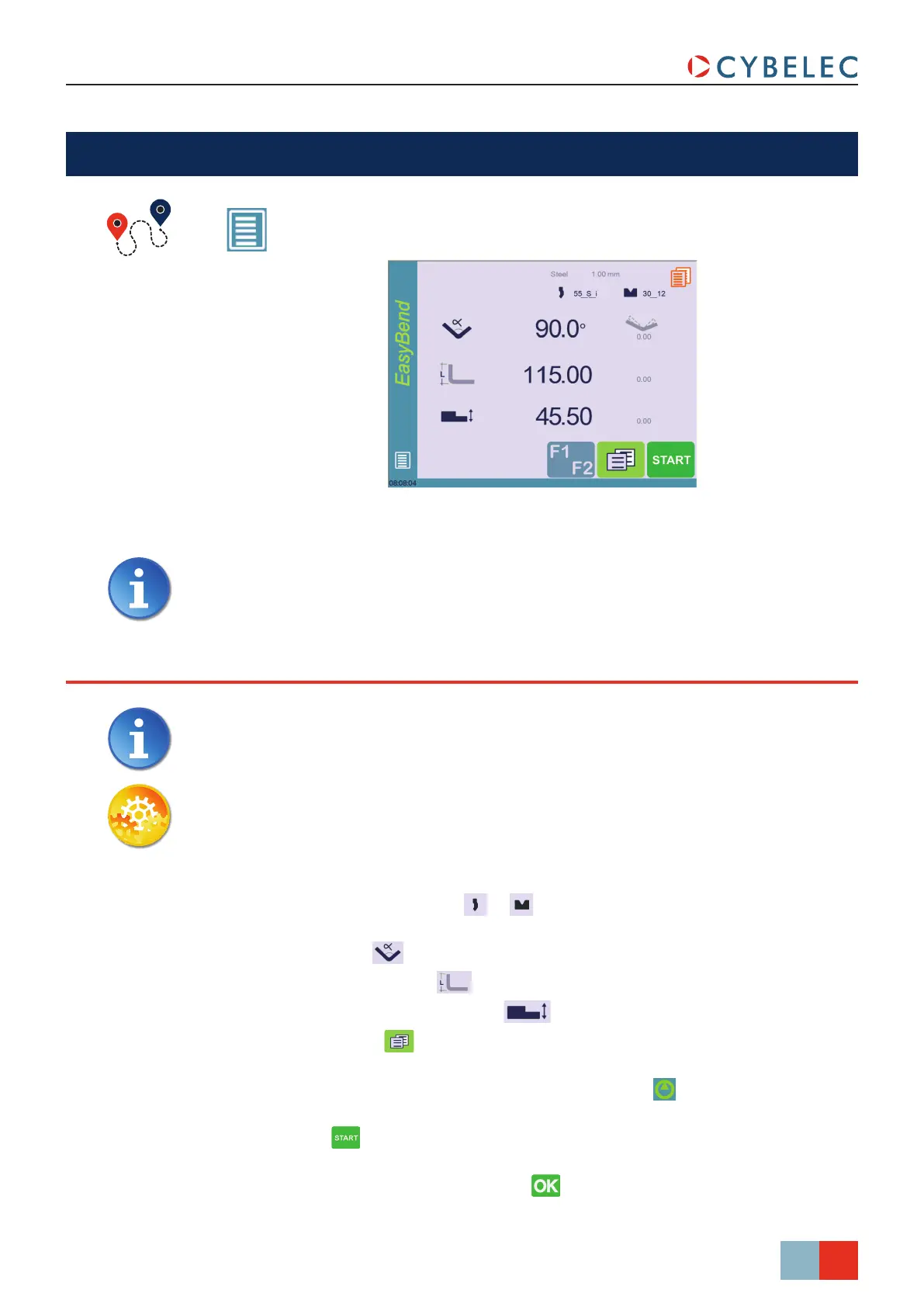

MakinG a bend on The eaSybend paGe
eaSybend PaGe
The EasyBend page is used for individual bends, for example when an external worker
needs to interrupt production just to make a single bend (usually with the same tools).
The program currently being used for production is only temporarily interrupted
(no need to save it) when switching to the EasyBend page, and then resumed
again when returning to the program page (Menu Button → Current program).
(Menu Button) → EasyBend
See Basic Page Description, page 14 for more information on the different
controls on the EasyBend page.
Setting inStructionS:
1. Touch the material’s name (here Steel). The More Page (see page 14) is displayed.
Select the Material (see page 15) used, enter the Material thickness and the
Bending length.
2. Touch one of the tool’s icon (
or ) to select a punch or die. To learn how to
configure tools, please refer to section Tools Management, page 18.
3. Enter the angle
for the first bend you wish to create (here 90°).
4. Enter the flange’s length
(here 100.00 mm).
5. Enter the back gauge height value
(here 34.00 mm)
6. Press this button
to go to the More Page (see page 14) and enter the
eventually required extra data for the bend.
7. Start the hydraulic pump motor (by pressing this button
if available. It turns red
when the motor is running the button becomes red).
8. Press the
button to position the machine according to the data that were just
entered.
9. When the machine is ready to bend, a
button is displayed.
10. Press the foot switch to execute the bend.
